AMP Research

AMP PowerStep Xtreme for 2020-2022 Ford F-250/350/450

Name: AMP PowerStep Xtreme for 2020-2022 Ford F-250/350/450
Brand: AMP Research
SKU: 78236-01A
Price: 2199.99 USD
Availability: InStock

$2,199.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:78236-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys when a door opens and retracts flush when the doors close
Heavy-duty PowerStep with a reinforced die-cast aluminum linkage and stainless steel pivot pins

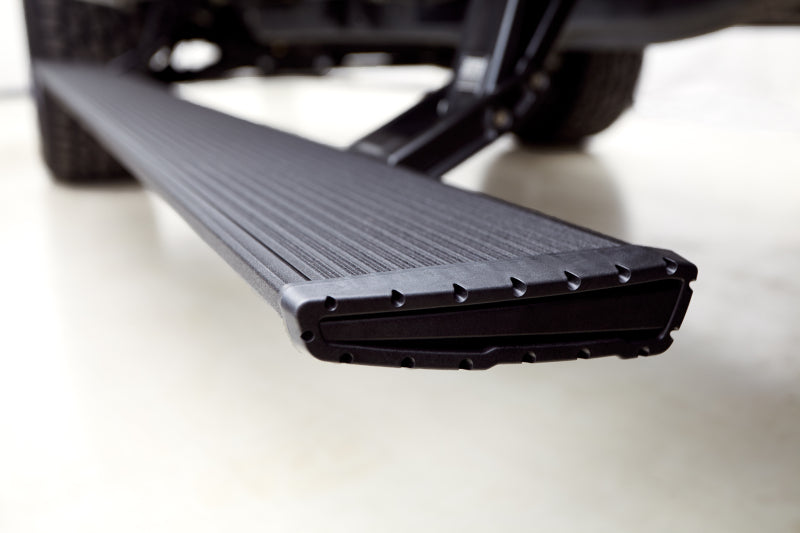

Extruded aluminum step board, 6 in. wide and cab-length with a non-slip tread
Rated to support 600 lb per side
Integrated LED step lights
Vehicle-specific plug-in OBD-II wiring harness, no wire cutting or splicing
Complete two-side kit; 5-year/60,000-mile limited warranty

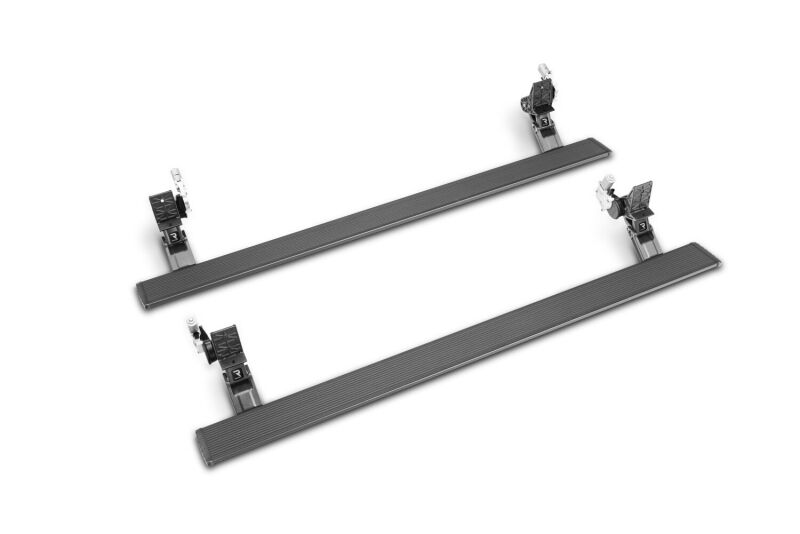

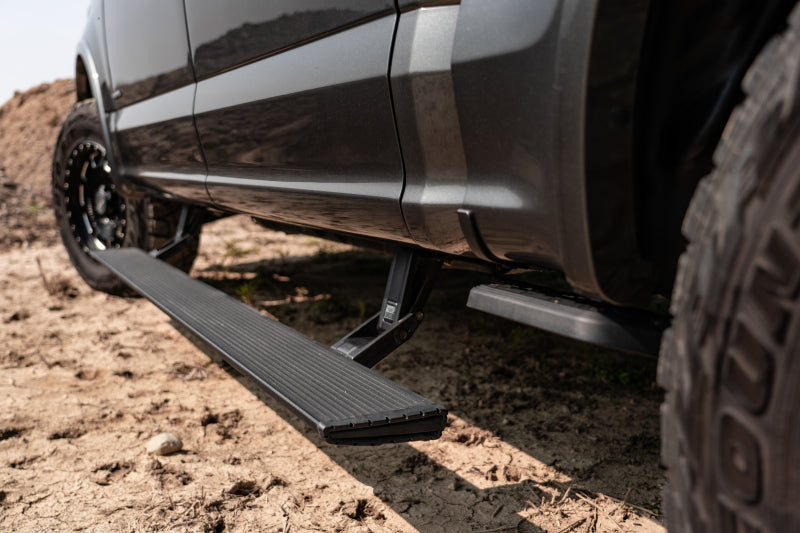

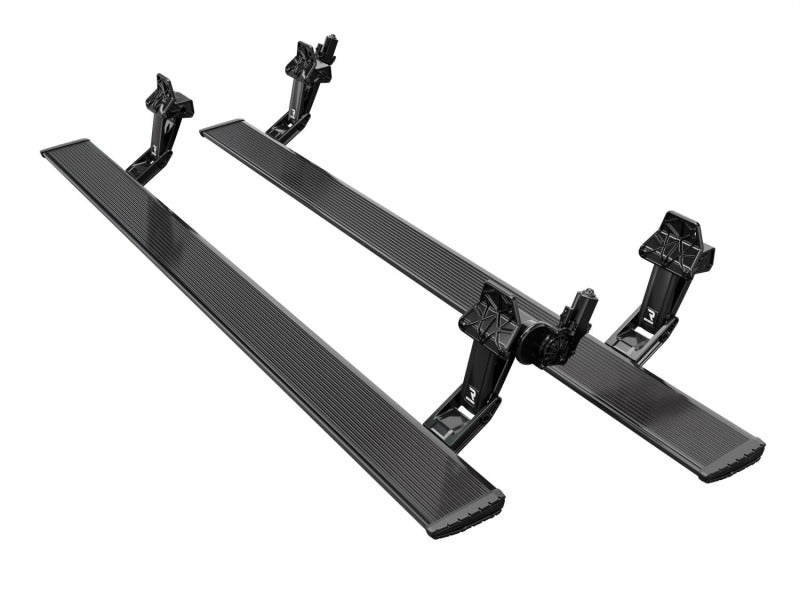

The AMP Research PowerStep Xtreme (78236-01A) is a complete pair of electric retractable running boards for the 2020-2022 Ford F-250, F-350, and F-450 Super Duty with Sync 3. Each board deploys the instant a door opens and retracts flush under the rocker a few seconds after the doors close.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close — out of sight when not in use.
AMP's heavy-duty PowerStep: a reinforced die-cast aluminum linkage with stainless steel pivot pins for extra durability.
Extruded aluminum step board, 6 in. wide and cab-length, with a non-slip tread rated to support 600 lb per side.
Integrated LED step lights illuminate the step area at night.
Vehicle-specific plug-in OBD-II wiring harness installs with no wire cutting or splicing.
Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep Xtreme assemblies with motors, a vehicle-specific plug-in OBD-II wiring harness and control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Some cab configurations require trimming the board to length; professional installation is recommended.

Specifications

Type: Electric retractable running boards (sold as a pair)
Series: PowerStep Xtreme (heavy-duty)
Step board: Extruded aluminum, 6 in. wide, cab-length, non-slip tread, textured black finish
Linkage: Reinforced die-cast aluminum with stainless steel pivot pins
Load rating: 600 lb per side
Lighting: Integrated LED step lights
Wiring: Vehicle-specific plug-in OBD-II harness (no wire splicing)
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2020-2022 Ford F-250, F-350, and F-450 Super Duty in all cabs. 2020-2021 fit all trims; 2022 fits XL and XLT trims only. Requires Sync 3 infotainment. Regular Cab and SuperCab boards require trimming.

Which PowerStep fits your truck

This 78236-01A is the Sync 3 Super Duty board. The 2022-2025 Super Duty with Sync 4 uses the 78242-01A, and the 2017-2019 Super Duty uses the 78235-01A — the Sync 3 vs Sync 4 split matters, so confirm your truck's infotainment before ordering.

FAQ

Does the 78236-01A require Sync 3?

Yes. This board is for 2020-2022 Super Duty trucks with Sync 3. Trucks with Sync 4 use the 78242-01A instead. On 2022 models it fits the XL and XLT trims only.

Is this PowerStep sold as a pair?

Yes. This part number includes both the driver- and passenger-side assemblies as a complete two-side kit.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
