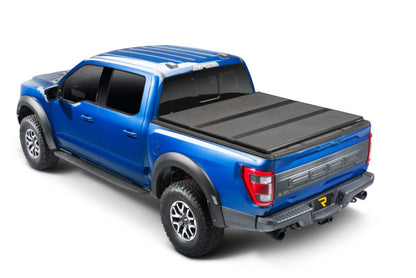

Extang Solid Fold ALX Tonneau 17-26 Ford Super Duty 6ft 10in Bed

Name: Extang Solid Fold ALX Tonneau 17-26 Ford Super Duty 6ft 10in Bed
Brand: Extang
SKU: 88486
Price: 1249.99 USD
Availability: InStock

$1,249.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:88486

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

600 lb. evenly distributed load rating on the closed cover
Full one-inch EnduraShield panels resist dents, scratches and UV fade
One-handed twist-and-lift rotary latch that re-latches on close
Ships assembled - under five minutes to fit
Polymer rubber corners, hinge caps and snap-on perimeter seals
EnduraCoat textured-black aircraft-grade aluminum frame
One part number spans the 2017 body and the 2023 Super Duty refresh
Limited 5-year warranty, assembled in Michigan

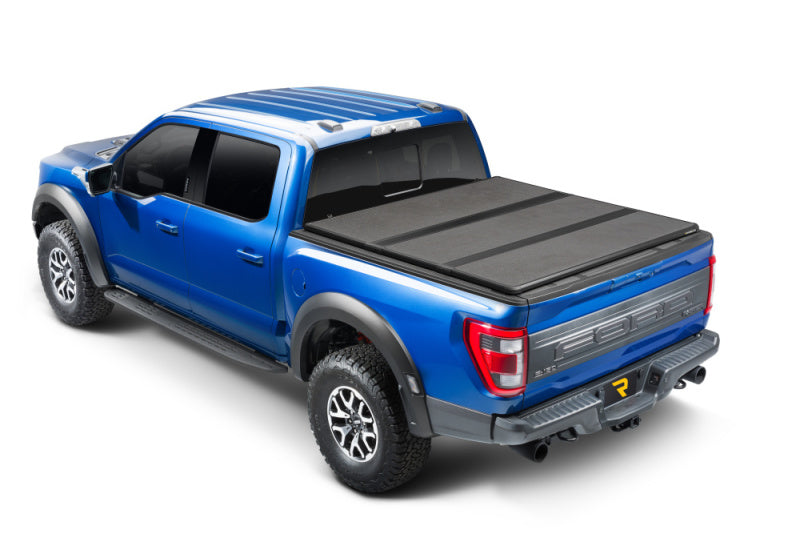

Extang's Solid Fold ALX in part number 88486 is the hard tri-fold tonneau for the Super Duty short box on 2017-2026 Ford F-250 and F-350 pickups - the bed Extang lists as 6 ft. 9 in. on its own site and 6 ft. 10 in. (81.9 in.) on its Amazon listing. It is a working cover on a working truck: three panels, a 600 lb. distributed rating, and a frame built to be walked around rather than babied.

The Super Duty is a long-service platform, and Extang's span for this part reflects that. Ford put the current Super Duty body on the road for 2017 and refreshed it for 2023 without changing the box, and 88486 carries straight across both, from 2017 through the current 2026 model year. What it does not carry across is chassis cab territory - Extang lists F-250 and F-350 for this part and stops there.

Key Benefits

Rated to 600 lb. spread evenly across the closed cover - lumber, a bike, a load of tools on top of a covered bed
EnduraShield panels are a full inch thick and shrug off dents, scratches and UV-driven fading
Rotary release latch works with one hand: twist, lift, and it re-latches on its own when the panel comes back down
Ships assembled, so the job is under five minutes rather than an afternoon
Spans the 2017 body and the 2023 refresh under one part number
Limited 5-year warranty, assembled in Michigan

What's Included

Tonneau cover
Hardware kit
Clamps
Install guide

Specifications

Cover type: hard folding, three panels (tri-fold)
Panels: 1 in. thick EnduraShield TPO-coated
Frame: aircraft-grade aluminum with textured-black EnduraCoat
Weight capacity: up to 600 lb. evenly distributed

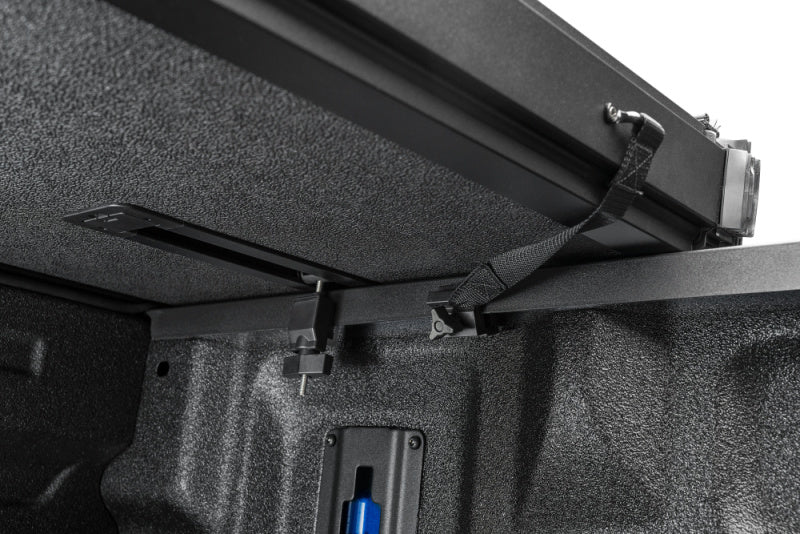

Latch: Secure Rotary Release Latching System, twist-and-lift, one-handed
Sealing: hard polymer rubber corners, hinge caps, snap-on perimeter seals
Bed length: Super Duty short box - Extang publishes 6 ft. 9 in. and, on its Amazon listing, 6 ft. 10 in. (81.9 in.)
Warranty: limited 5-year
MPN: 88486

Fitment

88486 fits the short box on 2017-2026 Ford F-250 Super Duty and F-350 Super Duty. Extang names those two models only. Does not fit the F-450 or F-550 - those are chassis cab and cab-and-chassis trucks and Extang does not list them for this part, so treat any retailer table that lumps "F-250/350/450/550" together as a copy-paste artefact rather than a fitment claim. Bed length remains the buying gate: the Super Duty long box is a different part number.

2017-2026 Ford F-250 Super Duty, short box
2017-2026 Ford F-350 Super Duty, short box

FAQ

Does 88486 fit an F-450?

No. Extang publishes this part for the F-250 and F-350 Super Duty only. The F-450 and F-550 are chassis cab trucks and are not on Extang's application for 88486.

Is my Super Duty bed 6 ft. 9 in. or 6 ft. 10 in.?

Both numbers describe the same Super Duty short box; Extang publishes 6 ft. 9 in. on its own product page and 6 ft. 10 in. (81.9 in.) on its Amazon listing. If your Super Duty has the short box rather than the 8 ft. long box, 88486 is the right length.

Does it fit the 2023 and newer refreshed Super Duty?

Yes. Extang lists 88486 through the 2026 model year, so the 2023 refresh and the trucks that followed it use the same cover as the 2017-2022 body.

How much does the cover hold?

Up to 600 lb. of evenly distributed weight on the closed cover. That figure assumes the load is spread across the panels, not concentrated on one spot.
