AMP PowerStep XL for 2020-2022 Ford F-250/350/450 SuperCrew

Name: AMP PowerStep XL for 2020-2022 Ford F-250/350/450 SuperCrew
Brand: AMP Research
SKU: 77236-01A
Price: 2299.99 USD
Availability: InStock

$2,299.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:77236-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Extends about 3 inches lower than the standard PowerStep for easy entry on lifted and leveled trucks
Auto-deploys the instant a door opens and retracts flush under the rocker when the doors close
6-inch wide, cab-length aluminum step with non-slip tread, rated to support 600 lb per side
Anodized, military-grade PTFE (Teflon)-coated aluminum with stainless steel pivot pins resist corrosion
Integrated LED step lights illuminate the step area at night
Complete two-side kit with vehicle-specific brackets, hardware, and wiring; backed by AMP's 5-year limited warranty

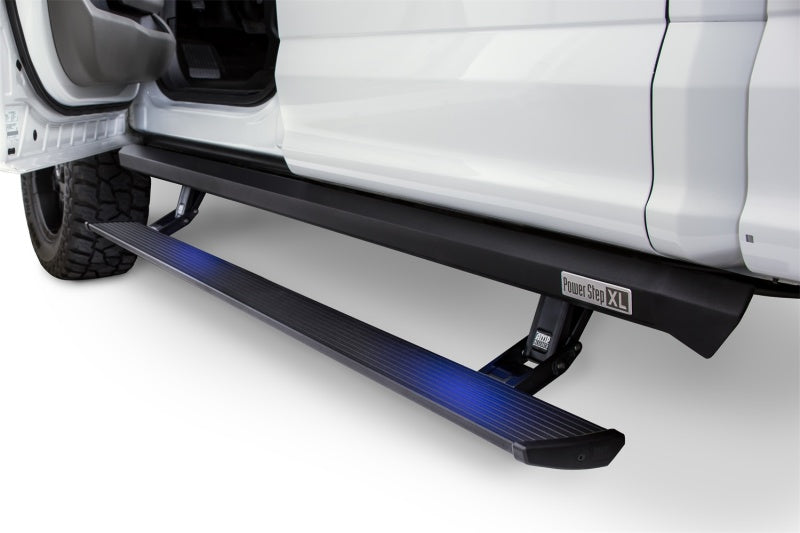

The AMP Research PowerStep XL (77236-01A) is a complete pair of electric retractable running boards for the 2020-2022 Ford F-250, F-350, and F-450 Super Duty SuperCrew (Crew Cab). It extends about 3 inches lower than the standard PowerStep for easier entry into a lifted or leveled truck.

Why owners choose it

Extends about 3 inches lower than the standard PowerStep, so stepping into a lifted or leveled truck takes far less of a climb.

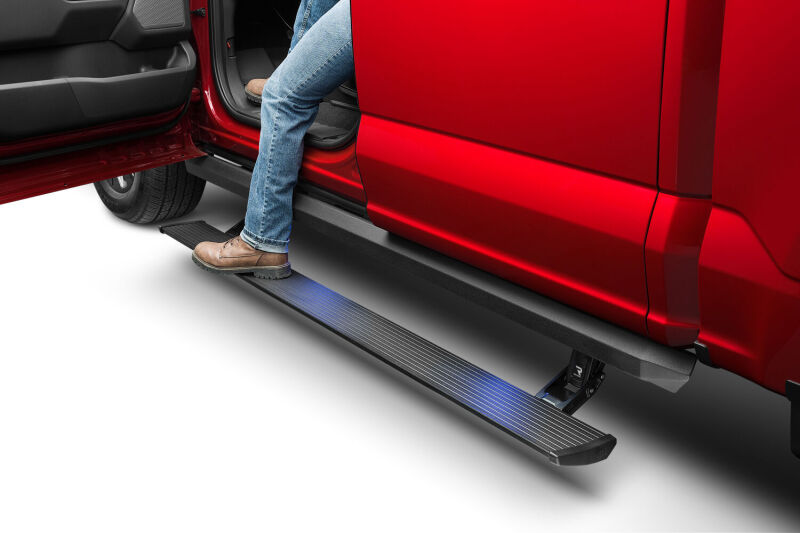

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close — hidden and out of the way when not in use.
6-inch wide, cab-length aluminum step board with a non-slip tread, rated to support 600 lb per side.
Anodized aluminum with a military-grade PTFE (Teflon) coating and stainless steel pivot pins resists corrosion.

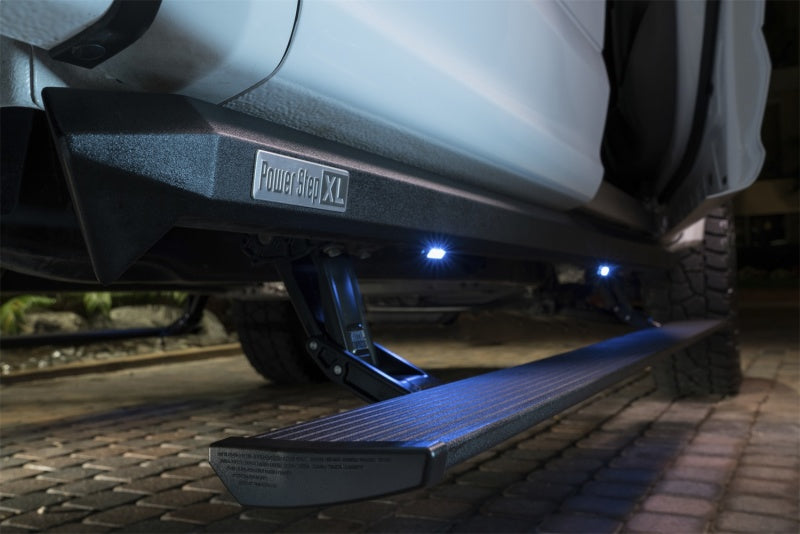

Integrated LED step lights illuminate the step area at night.

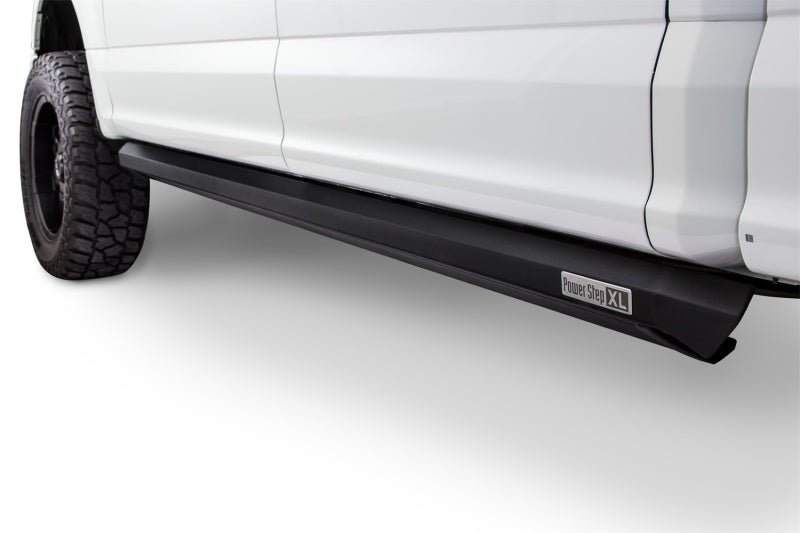

Retracts flush for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep XL assemblies with motors, vehicle-specific mounting brackets and hardware, a wiring harness, integrated LED step lights, and an installation guide. On most late-model trucks AMP's Plug-N-Play module connects to the OBDII port with no wire splicing. AMP recommends professional installation.

Specifications

Type: Electric retractable running boards, PowerStep XL (sold as a pair)
Extra drop: About 3 in. lower than the standard PowerStep
Step: 6 in. wide, cab-length aluminum with non-slip tread
Load rating: 600 lb per side
Coating: Anodized aluminum with military-grade PTFE (Teflon) coating; stainless steel pivot pins
Motors: Single-motor design (one per side)
Lighting: Integrated LED step lights
Warranty: 5-year limited manufacturer warranty

Fitment

Fits 2020-2022 Ford F-250, F-350, and F-450 Super Duty SuperCrew (Crew Cab). Does not fit Regular Cab or SuperCab.

How the PowerStep XL differs

The XL adds about 3 inches of extra drop for lifted and leveled trucks. This board is cut for the 2020-2022 Super Duty; the prior 2017-2019 Super Duty Crew Cab uses 77235-01A and the 2022-2024 Sync 4 body uses 77242-01A — confirm your model year before ordering.

FAQ

Does the 77236-01A fit a SuperCab or Regular Cab?

No. It is cut for the SuperCrew (Crew Cab) only.

What is the difference between the PowerStep XL and the standard PowerStep?

The PowerStep XL extends about 3 inches lower than the standard PowerStep, making a lifted or leveled truck easier to climb into. Both use the same 6-inch aluminum step, 600 lb-per-side rating, integrated LED lights, and auto deploy/retract; the XL just drops farther.

Is the PowerStep XL sold as a pair?

Yes. This part number is a complete two-side kit with both the driver- and passenger-side PowerStep XL assemblies.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year limited warranty against defects in materials and workmanship.

Vehicle Fitment

Years	Make	Model	Submodel
2020–2022	Ford	F-250 Super Duty	SuperCrew (Crew Cab)
2020–2022	Ford	F-350 Super Duty	SuperCrew (Crew Cab)
2020–2022	Ford	F-450 Super Duty	SuperCrew (Crew Cab)
