AMP PowerStep Smart Series for 2019-2024 Ram 1500

Name: AMP PowerStep Smart Series for 2019-2024 Ram 1500
Brand: AMP Research
SKU: 86240-01A
Price: 1949.99 USD
Availability: InStock

$1,949.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:86240-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys when a door opens and retracts flush when the doors close
Smart Series smartphone app (iOS and Android) overrides the steps up or down and controls the lights
Obstacle detection stops the step if the module senses resistance
Integrated LED step lights plus a switchable auxiliary LED port
Die-cast aluminum boards, black textured finish, 600 lb per side
Vehicle-specific plug-in OBD-II wiring harness, no wire cutting or splicing
Complete two-side kit; 5-year/60,000-mile limited warranty

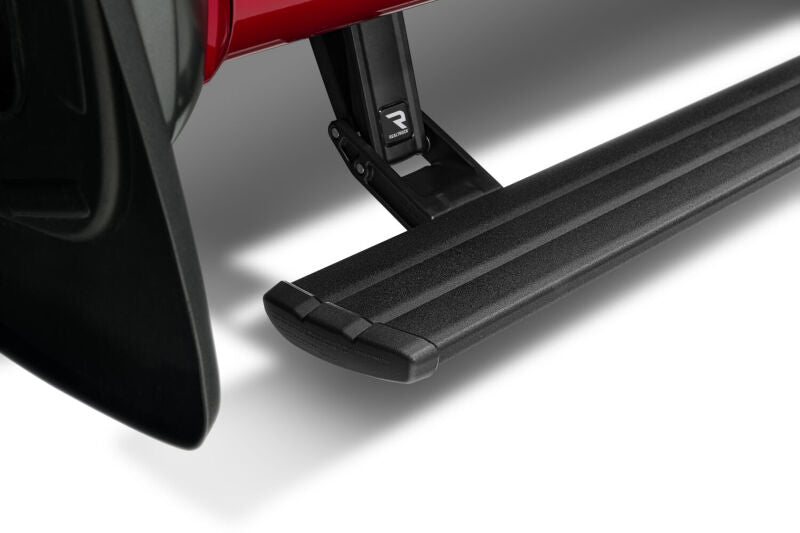

The AMP Research PowerStep Smart Series (86240-01A) is a complete pair of electric retractable running boards for the 2019-2024 Ram 1500 (new DT body), including the TRX. Each board deploys the instant a door opens and retracts flush under the rocker a few seconds after the doors close.

Why owners choose it

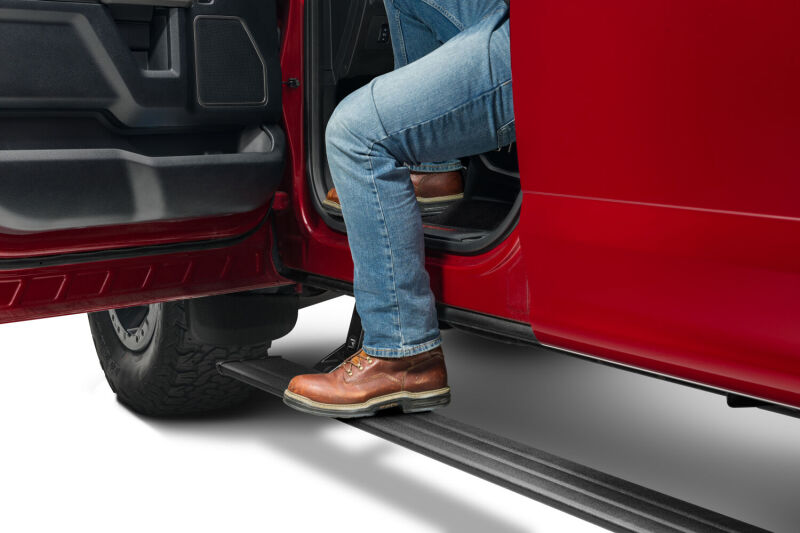

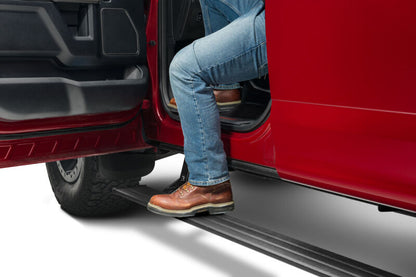

Auto-deploys the instant a door opens, then retracts flush a few seconds after the doors close.
App control: the Smart Series smartphone app (iOS and Android) lets you override the steps up or down and switch the lights from your phone.
Obstacle detection — the control module monitors motor current draw and halts the step if it meets an obstacle or jam.
Integrated LED step lights plus an auxiliary LED port you can power and switch from the app.
Die-cast aluminum boards with a black textured finish, rated to support 600 lb per side.
Vehicle-specific plug-in OBD-II wiring harness installs with no wire cutting or splicing.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep Smart Series assemblies with motors, a vehicle-specific plug-in OBD-II wiring harness and Smart Series control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Some cab configurations require trimming the board to length; professional installation is recommended.

Specifications

Type: Electric retractable running boards (sold as a pair)
Series: PowerStep Smart Series (app-controlled)
Control: Smart Series smartphone app (iOS and Android) with obstacle detection
Material: Die-cast aluminum, black textured finish
Load rating: 600 lb per side
Lighting: Integrated LED step lights + switchable auxiliary LED port
Wiring: Vehicle-specific plug-in OBD-II harness (no wire splicing)
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits the 2019-2024 Ram 1500 (new body) in all cabs, including the TRX. Does not fit the Ram 1500 Classic.

Which PowerStep fits your truck

This 86240-01A is the app-controlled Smart Series board for the new-body Ram 1500. The Vision version for this truck is the 96240-01A, and the Ram 1500 Classic and 2500/3500 HD use the 78239-01A (Xtreme) or 96239-01A (Vision).

FAQ

Does the 86240-01A fit a Ram 1500 Classic?

No. It fits the new-body 2019-2024 Ram 1500 (including the TRX) and does not fit the 1500 Classic.

Can I control the steps from my phone?

Yes. The Smart Series smartphone app (iOS and Android) overrides the steps up or down and controls the LED lighting, and the module's obstacle detection stops the step if it meets resistance.

Is this PowerStep sold as a pair?

Yes. This part number includes both the driver- and passenger-side assemblies as a complete two-side kit.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
