AMP Research

AMP PowerStep for 2009-2014 Ford F-150 All Cabs

Name: AMP PowerStep for 2009-2014 Ford F-150 All Cabs
Brand: AMP Research
SKU: 75141-01A
Price: 1599.99 USD
Availability: InStock

$1,599.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:75141-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys the instant a door opens and retracts flush under the rocker when the doors close
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion
Weather-sealed electric motors and weathertight connectors for all-weather operation
Integrated LED step lights illuminate the step area at night
Complete two-side kit with vehicle-specific brackets, hardware, and wiring harness
Backed by AMP Research's 5-year/60,000-mile limited warranty

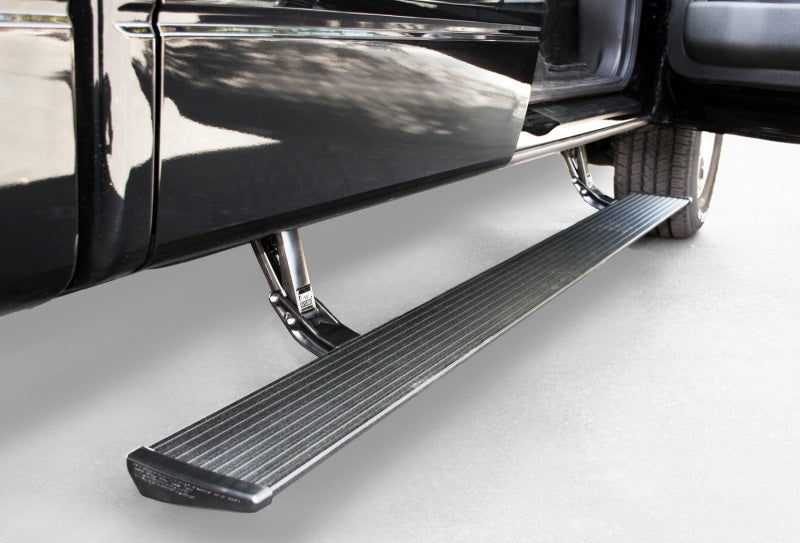

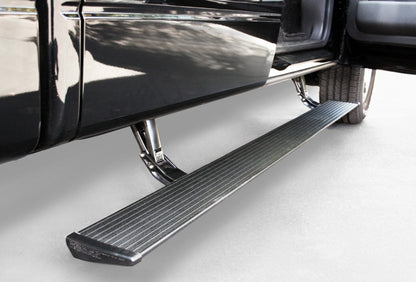

The AMP Research PowerStep (75141-01A) is a complete pair of electric retractable running boards for the 2009-2014 Ford F-150 in all cab configurations, including the 2010-2014 SVT Raptor. Each board drops down the instant a door opens and retracts flush under the cab a few seconds after the doors close.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close — out of sight when not in use.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and weathertight wiring connectors stand up to mud, salt, and all-weather use.
Integrated LED step lights illuminate the step area at night.
Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep assemblies with motors, a vehicle-specific wiring harness and control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Drilling is required and professional installation is recommended.

Fitment

Fits 2009-2014 Ford F-150 in Regular Cab, SuperCab, and SuperCrew, including the 2010-2014 SVT Raptor. Does not fit the 2004-2008 F-150 or the 2015-and-newer F-150.

Which AMP step fits your truck

This 75141-01A is the standard hardwired PowerStep for the 2009-2014 F-150. The same truck is also served by the Plug-N-Play version, 76141-01A, which plugs into the factory OBD-II connector with no splicing; the 2015-2020 F-150 uses 76151-01A instead. Match your model year and preferred wiring before ordering.

FAQ

Does the 75141-01A fit a Ford Raptor?

Yes. It fits the 2010-2014 SVT Raptor along with the rest of the 2009-2014 F-150 lineup.

What is the difference between the 75141-01A and 76141-01A?

Both fit the 2009-2014 F-150. The 75141-01A is the standard hardwired kit; the 76141-01A is the Plug-N-Play version that plugs into the factory OBD-II connector with no splicing.

Does installation require drilling?

Yes. Mounting the brackets requires drilling and AMP recommends professional installation. The kit includes vehicle-specific brackets, a wiring harness and control module, and an installation guide.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.

Vehicle Fitment

Years	Make	Model	Submodel
2009–2014	Ford	F-150	All Cabs

Specifications

material: Extruded aluminum step with textured black powdercoat finish
type: Electric retractable running boards (sold as a pair)
motors: Two (one per side), weather-sealed
linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
lighting: Integrated LED step lights
warranty: 5-year/60,000-mile limited manufacturer warranty
step width: 6 in. with non-slip tread
load rating: 600 lb per side
