UnderCover ArmorFlex Tonneau for 2004-2014 Ford F-150 5'6" Bed

Name: UnderCover ArmorFlex Tonneau for 2004-2014 Ford F-150 5'6" Bed
Brand: Undercover
SKU: AX22002
Price: 1349.99 USD
Availability: InStock

$1,349.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:AX22002

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Covers both the 2004-2008 and 2009-2014 F-150 short beds on one part number
Aluminum panels under a premium-grade LINE-X / Multi-Shield coating
400 lb evenly distributed load rating on the closed cover
Panels latch automatically as the cover folds closed
EPDM rubber seals and drain tubes keep water out of the bed
Dual-action tailgate seal works with the rear panel up or down
Clamp-on fit, no drilling on most applications, about 45 minutes
Made in the USA with a limited 5-year warranty

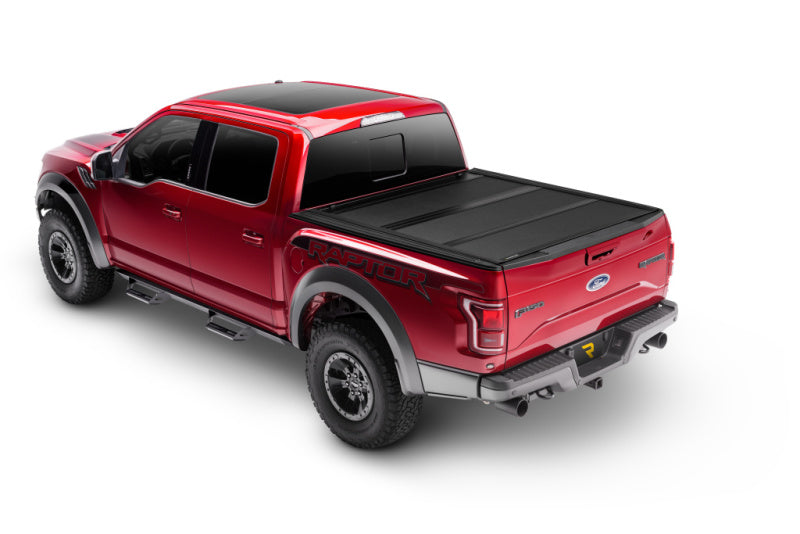

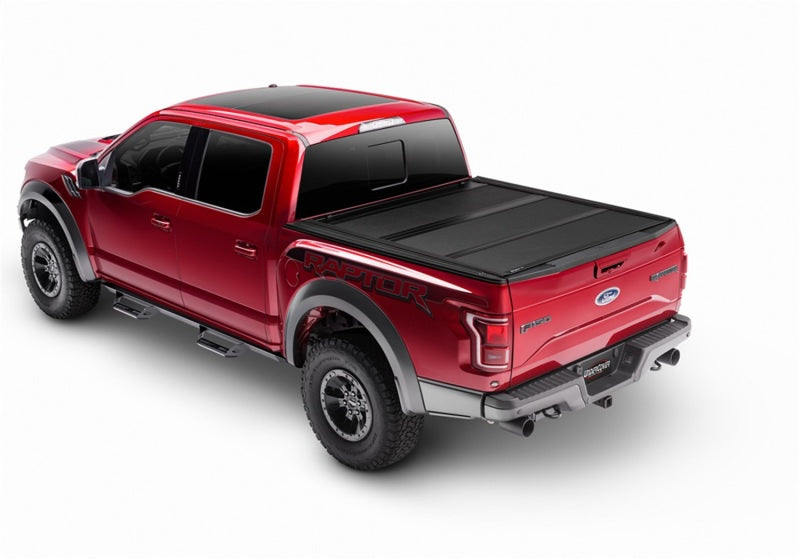

UnderCover ArmorFlex AX22002 is a hard tri-folding tonneau cover cut for the 5'6" (66") short bed on the 2004-2014 Ford F-150 — eleven model years across two generations of the truck on a single part number.

The reason to spend ArmorFlex money on an older F-150 is the panel. UnderCover builds these lids from aluminum and then coats them in a premium-grade LINE-X specialty automotive finish under its Multi-Shield treatment, so the surface takes dropped tools, dog claws, and ladder ends without the chalky fade a painted or plastic lid picks up in the Arizona sun. UnderCover rates the closed cover to 400 lb of evenly distributed load.

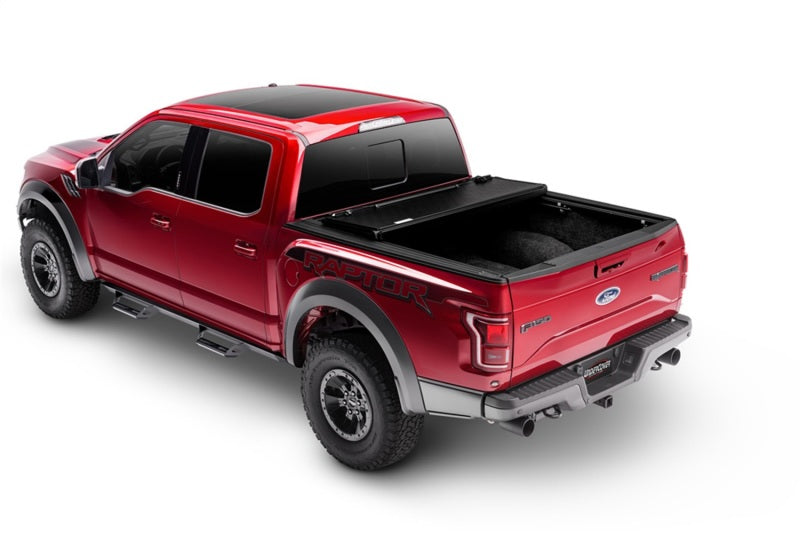

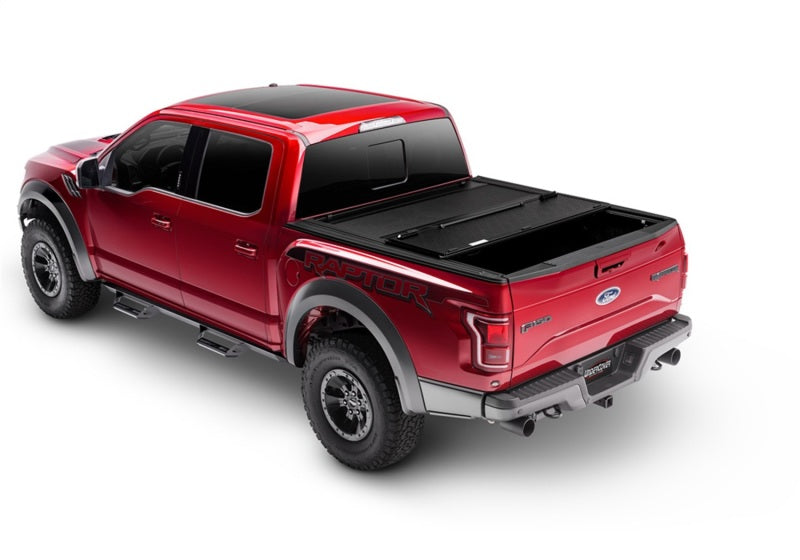

In use it is a three-panel fold. Panels latch automatically as they drop, EPDM seals and drain tubes carry water past the bed, and the dual-action rear seal keeps the tailgate usable with the last panel up or down. Fold the stack to the cab and the entire 66-inch box is open.

Key Benefits

One part number spans the 5'6" short bed on both the 2004-2008 and 2009-2014 F-150
Aluminum panels finished in premium-grade LINE-X under UnderCover's Multi-Shield treatment
Rated to 400 lb evenly distributed on the closed lid
Panels latch automatically as they fold down — no separate securing step
Dual-action tailgate seal keeps the gate usable with the rear panel up or down
Clamp-on fit with no drilling on most applications, about 45 minutes
Made in the USA and backed by a limited 5-year warranty

What's Included

ArmorFlex tri-fold cover assembly
Bed rail clamps
Mounting hardware

Specifications

Cover type: hard tri-folding
Material: aluminum panels with Multi-Shield / premium-grade LINE-X coating
Finish: matte black textured
Weight capacity: 400 lb evenly distributed
Panel count: 3
Bed length: 5'6" (66 in)
Bed access: full, folds forward to the cab
Locking: automatic latching panels; not key-lockable
Install: clamp-on, no drilling on most applications, roughly 45 minutes
Warranty: limited 5-year
MPN: AX22002
Sibling MPNs: AX22004 (same cover, 04-14 F-150 6'7" / 78.8 in bed), UX22002 (UnderCover Ultra Flex for the same 5'6" application)

Fitment

UnderCover AX22002 fits 2004 through 2014 Ford F-150 pickups with the 5'6" (66") bed. RealTruck's application publishes this as a single 66-inch listing across both generations, with 2009-2014 trucks measuring nearer 67 inches on the same part number.

Does not fit the 2004-2014 F-150 6'7" bed. That truck takes sibling part AX22004. Dealer application data also notes the short-bed listing as a SuperCrew configuration, so check the box length rather than the badge.

2004-2014 Ford F-150, 5'6" (66") bed

FAQ

Does AX22002 fit both the 2004-2008 and 2009-2014 F-150?

Yes. RealTruck publishes AX22002 as fitting 2004-2014 Ford F-150 with the 5'6" (66") bed, so both generations of that short box use the same part number.

What is the difference between AX22002 and AX22004?

Bed length only. AX22002 is the 5'6" (66") bed cover and AX22004 is the same ArmorFlex cover for the 6'7" (78.8") bed on the same trucks.

Is AX22002 lockable?

The panels latch automatically as the cover closes, but the dealer spec sheet lists it as not key-lockable. Security comes from the aluminum panel construction and the closed tailgate rather than a key cylinder.

Do I need to drill my F-150 to install AX22002?

No. The ArmorFlex clamps on using the included clamps and hardware, with no drilling required on most applications, and the dealer spec sheet puts the job at roughly 45 minutes.
