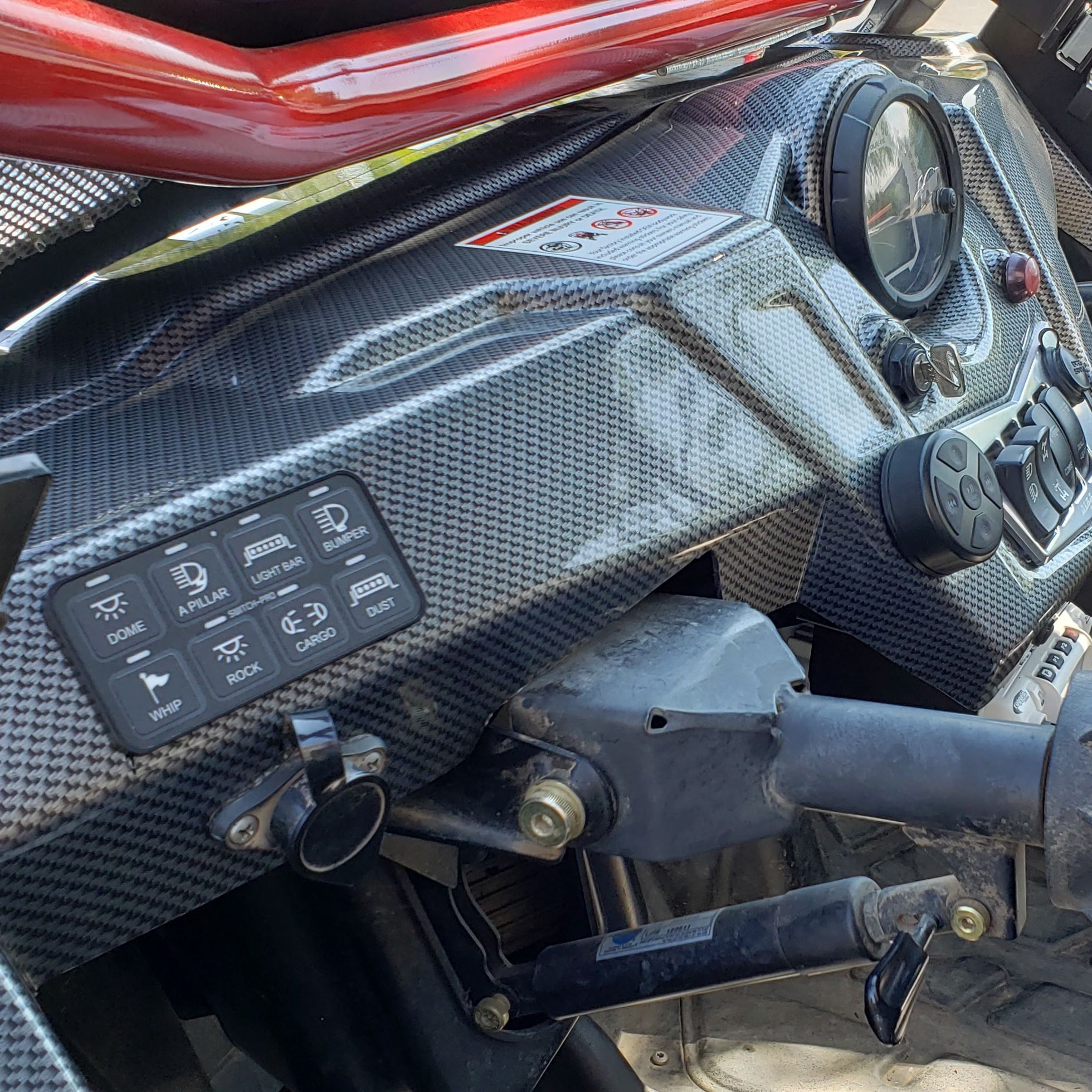

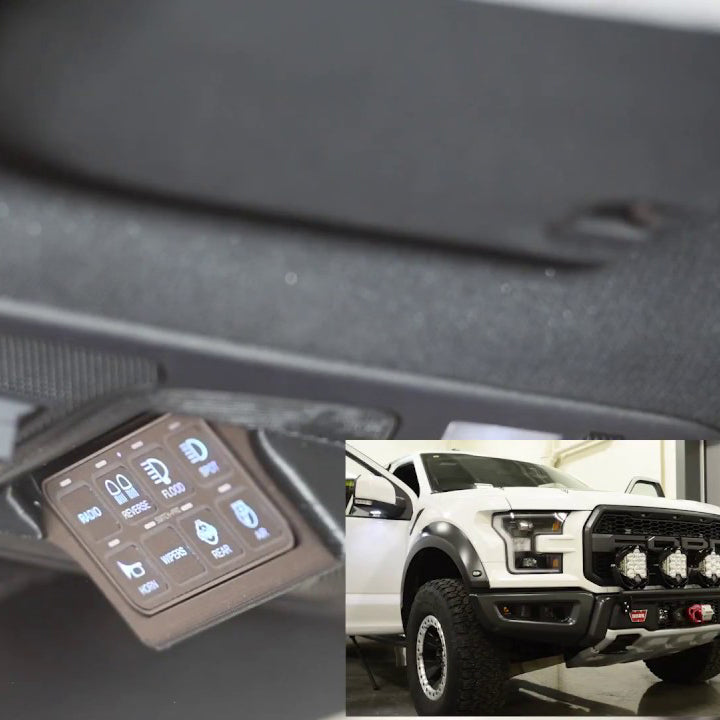

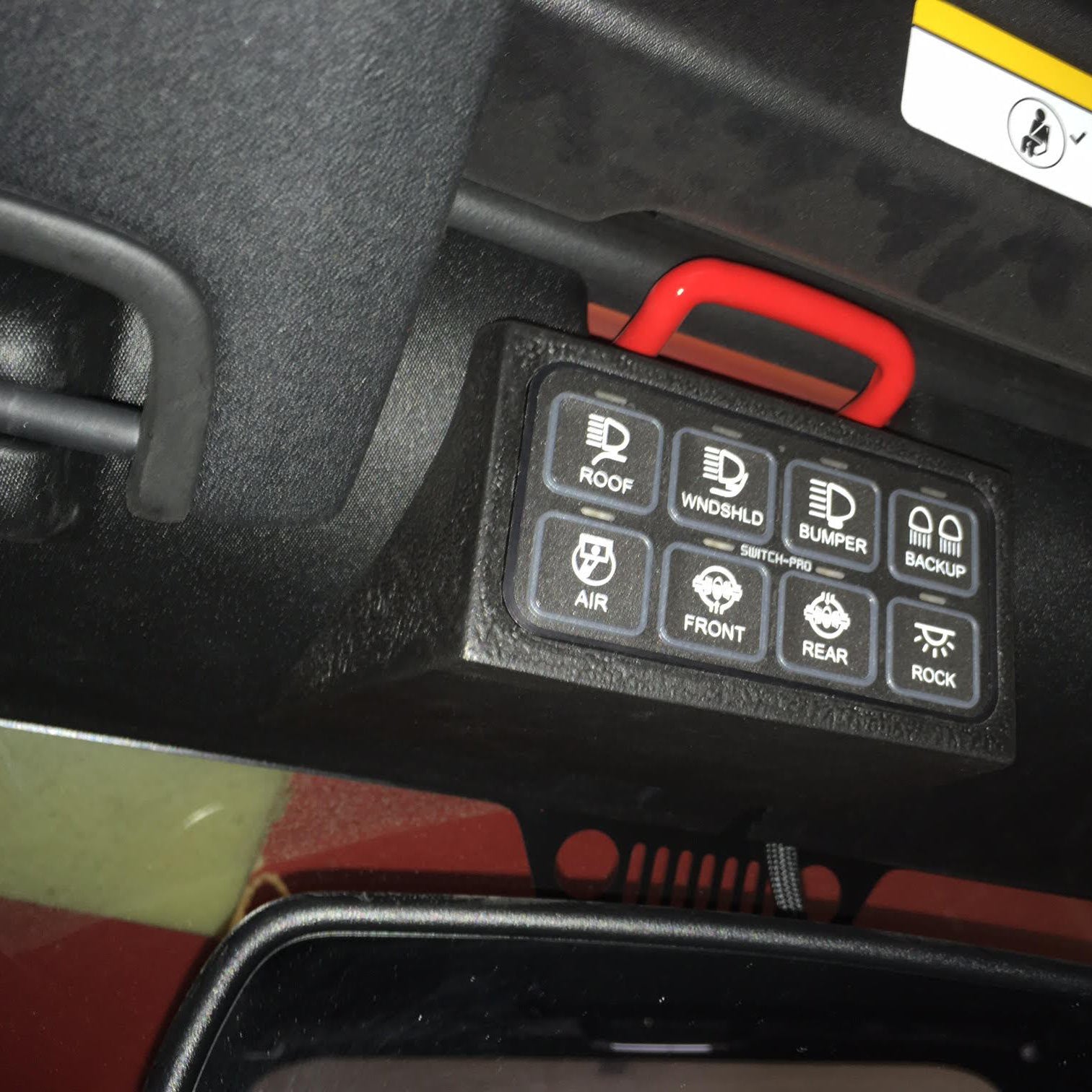

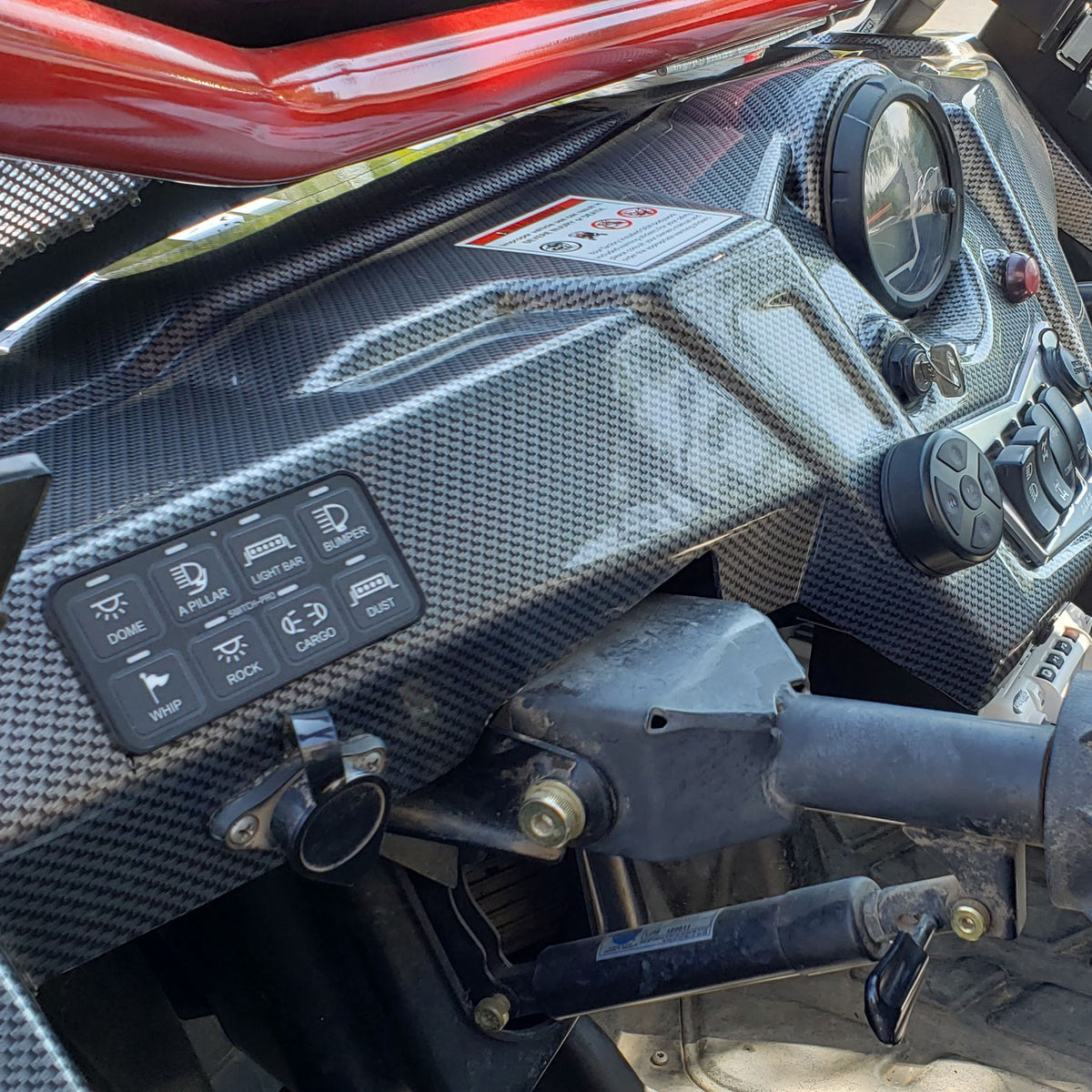

The Switch Pros SP9100 is the perfect all in one switch system for your offroad vehicle like the Polaris RZR or Can Am X3, even Jeeps and trucks. The SP9100 allows you to add 8 total touchpad or bluetooth controllable switches. Perfect for use with a full build or adding on more lights and options to your vehicle as you go. One of the best features of this system is only having to run 1 power wire from the battery. No more rats nest of wires that can break down over time.

Make your installs easier with the Switch Pros SP9100 8 Switch Kit

Download the Switch Pros SP9100 Installation Manual

All systems include:

  • 100 User-selectable switch legends
  • Eight user-programmable switches
  • Four 35A circuits and four 20A circuits
  • Waterproof, Solid State 125A Power Module
  • RGB Backlighting provides unlimited color options, using Color Picker on App
  • Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
  • Switches can be programmed for:
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Memory Function
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Automatic Power-Up upon vehicle start up
  • Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
  • Sleep Mode for minimal power consumption
  • Color Coded circuit wires
  • LED Input Status Indicators for easy troubleshooting
  • Time Delay Off function available for all circuits
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • Program and control the system from switch panel pad or smart phone
  • Bluetooth interface with FREE Apple or Android App
  • Battery Voltage Readout on App screen
  • No Fuses or Bulky Relay box
  • Built-In Bluetooth Module

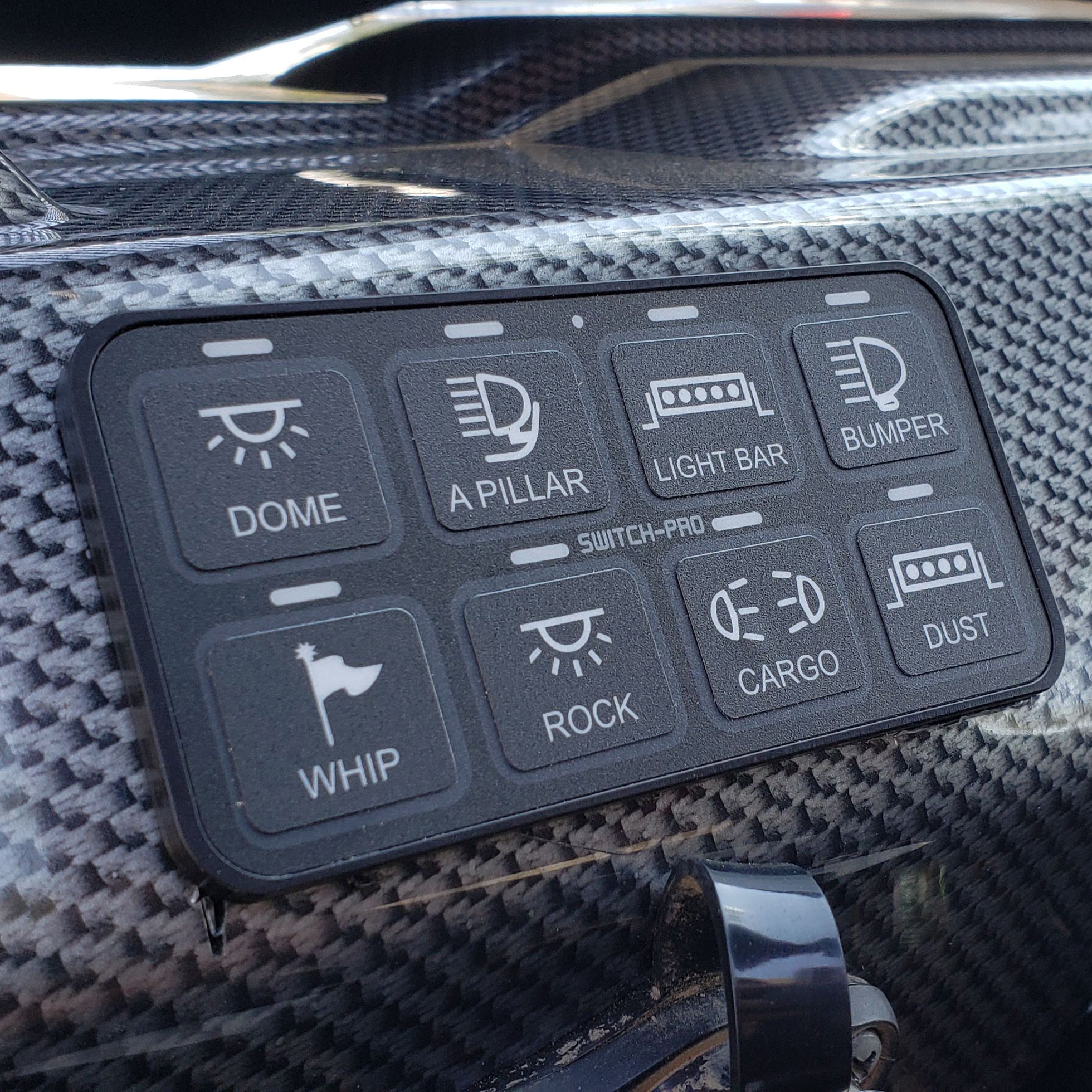

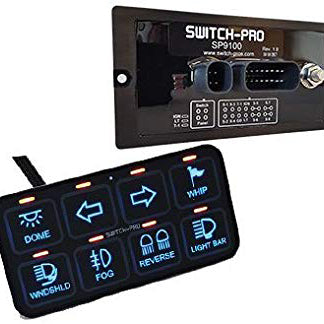

Switch Panel Specs:

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
  • Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
  • Orange LED switch indicators
  • 100 User Selectable Legends

Power Module Specs:

  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • 125A maximum rating
  • Waterproof and Solid State
  • 6”L x 3”W x .5”H (excluding connectors)
  • LED Input Status Indicators for easy troubleshooting
  • Underhood rated 125° to -40°C

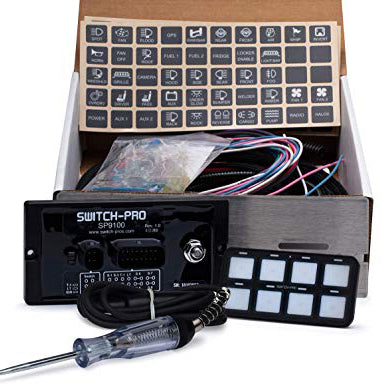

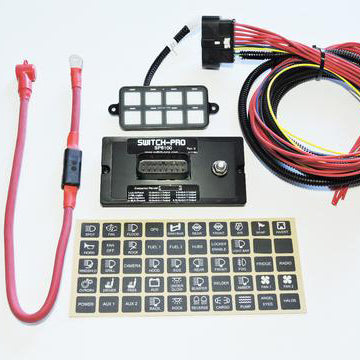

Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings.  There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
