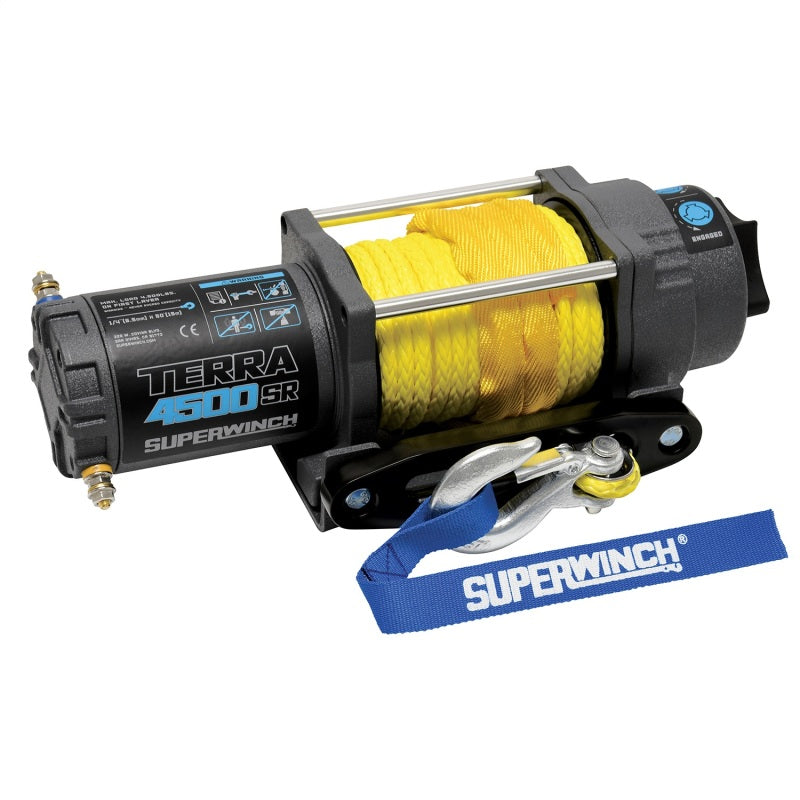

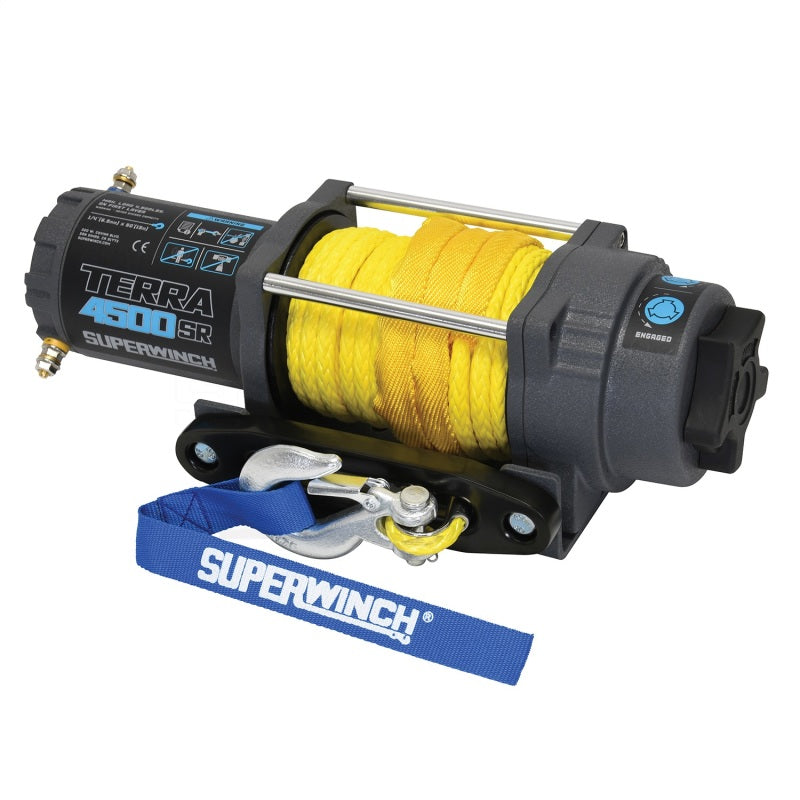

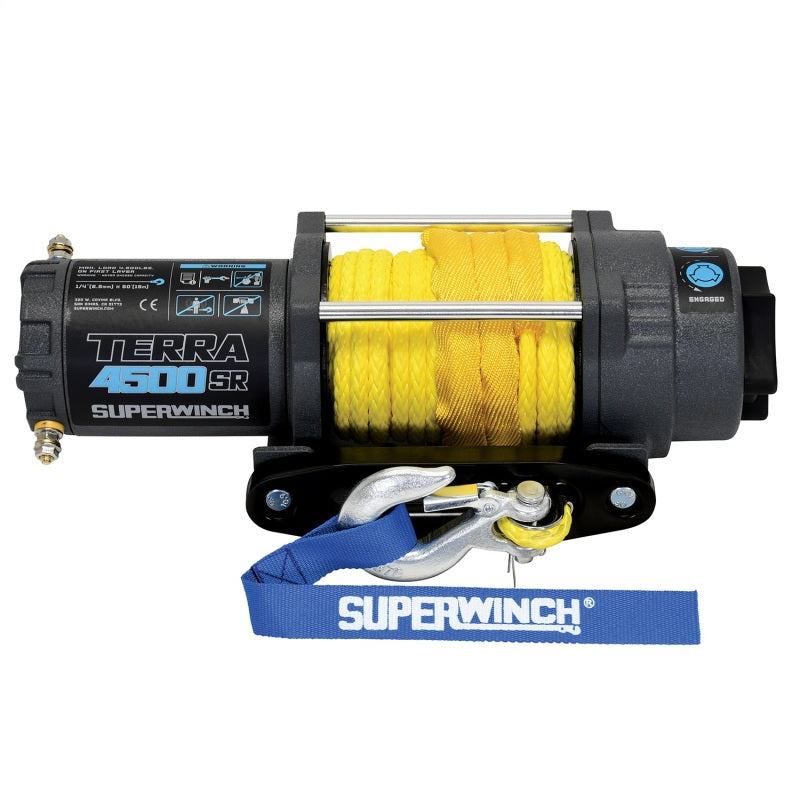

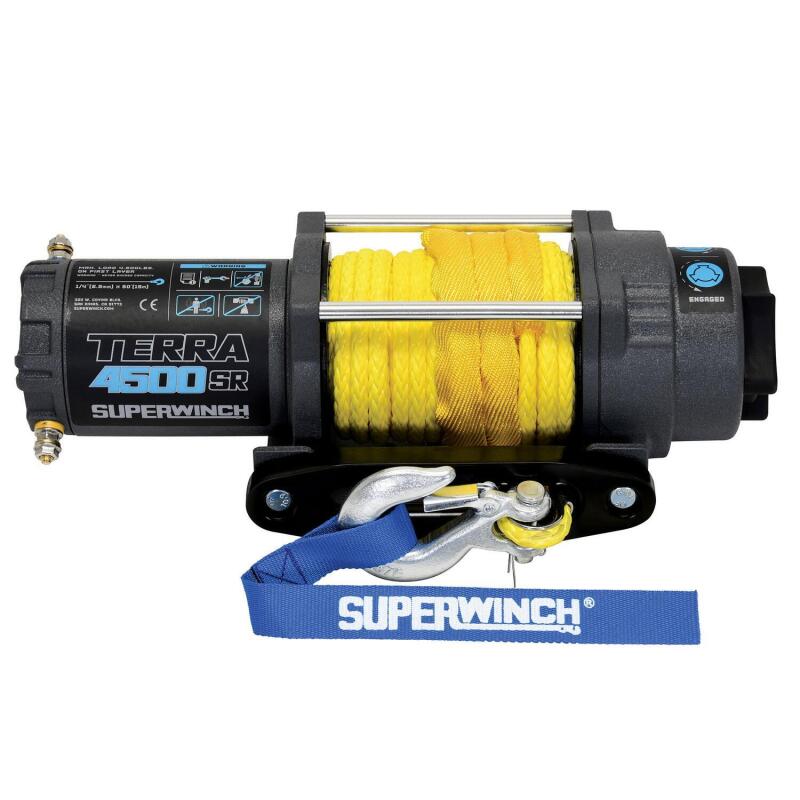

Superwinch Terra 4500SR 4500lb Synthetic Rope ATV UTV Winch
Superwinch Terra 4500SR 4500lb Synthetic Rope ATV UTV Winch
SKU:1145270
In stock
- Calculated shipping — oversized item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- 4,500 lb single-line pull powers through mud, sand, and snow
- 1/4 in. x 50 ft. synthetic rope is lighter and safer than steel cable
- Narrow steel drum fits tight ATV and UTV mounting spaces
- IP67 sealed motor and housing resist water, mud, and dust
- 10 ft. wired handheld remote plus handlebar rocker switch for flexible control
- 198:1 three-stage planetary gearing for strong, smooth pulling
- Ergonomic free-spool clutch knob for quick rope deployment
- Durable gray wrinkle powder-coat finish stands up to the trail
Get unstuck and keep the ride going with the Superwinch Terra 4500SR, a rugged 4,500 lb pulling powersports winch engineered for the demands of ATV and UTV trail riding. Its narrow drum, sealed construction, and complete control package make it one of the easiest synthetic-rope winches to mount and live with.
Key Benefits
- Delivers 4,500 lbs of single-line pulling power to free your machine from mud, sand, and snow.
- Lightweight 1/4 in. x 50 ft. synthetic rope is safer than steel cable and floats for easier handling.
- Narrow heavy-duty steel drum fits tighter mounting locations than full-size winches.
- IP67-rated sealed housing and motor shrug off water, mud, and dust on the trail.
- Dual controls let you operate from the handheld remote or the handlebar-mounted rocker switch.
What's Included
- Terra 4500SR winch with 1.8 HP permanent magnet motor
- 1/4 in. x 50 ft. synthetic rope
- Aluminum hawse fairlead
- 10 ft. handheld wired remote
- Handlebar-mounted rocker switch
- Sealed solenoid and circuit breaker
- Mounting hardware
Fitment
This is a universal powersports winch designed for ATV and UTV applications. It is not vehicle-year-specific and mounts to any machine that accepts the standard 3 in. x 6.66 in. winch mounting pattern. A vehicle-specific mounting kit may be required for your particular ATV or UTV and is sold separately.
- Universal fit for ATV and UTV / side-by-side machines
- Standard 3 in. x 6.66 in. mounting bolt pattern
FAQ
FAQ
What is the difference between the Terra 4500SR and the Terra 4500?
The 4500SR (1145270) ships with 1/4in x 50ft synthetic rope and an aluminum hawse fairlead; the Terra 4500 (1145260) uses steel wire rope and a roller fairlead.
Does it include a remote?
Yes. A 10ft wired handheld remote plus a handlebar-mounted rocker switch are included.
Is a vehicle mount included?
It uses a universal 3 x 6.66in bolt pattern; a vehicle-specific mount kit may be required and is sold separately.
Specifications
Specifications
- rope
- 1/4 in. x 50 ft. synthetic
- motor
- 1.8 HP 12V DC permanent magnet
- clutch
- ergonomic free-spool knob
- finish
- gray wrinkle powder coat
- remote
- 10 ft. handheld wired remote
- switch
- handlebar-mounted rocker switch
- fairlead
- aluminum hawse
- gear ratio
- 198:1
- gear train
- 3-stage planetary
- application
- ATV / UTV powersports (universal)
- rated line pull
- 4,500 lbs (2,041 kg)
- ingress protection
- IP67
- free spooling clutch
- ergonomic knob
- mounting bolt pattern
- 3 in. x 6.66 in.
