S&B 76-6001 Helmet Particle Separator, Dual-Port Fresh Air Pumper

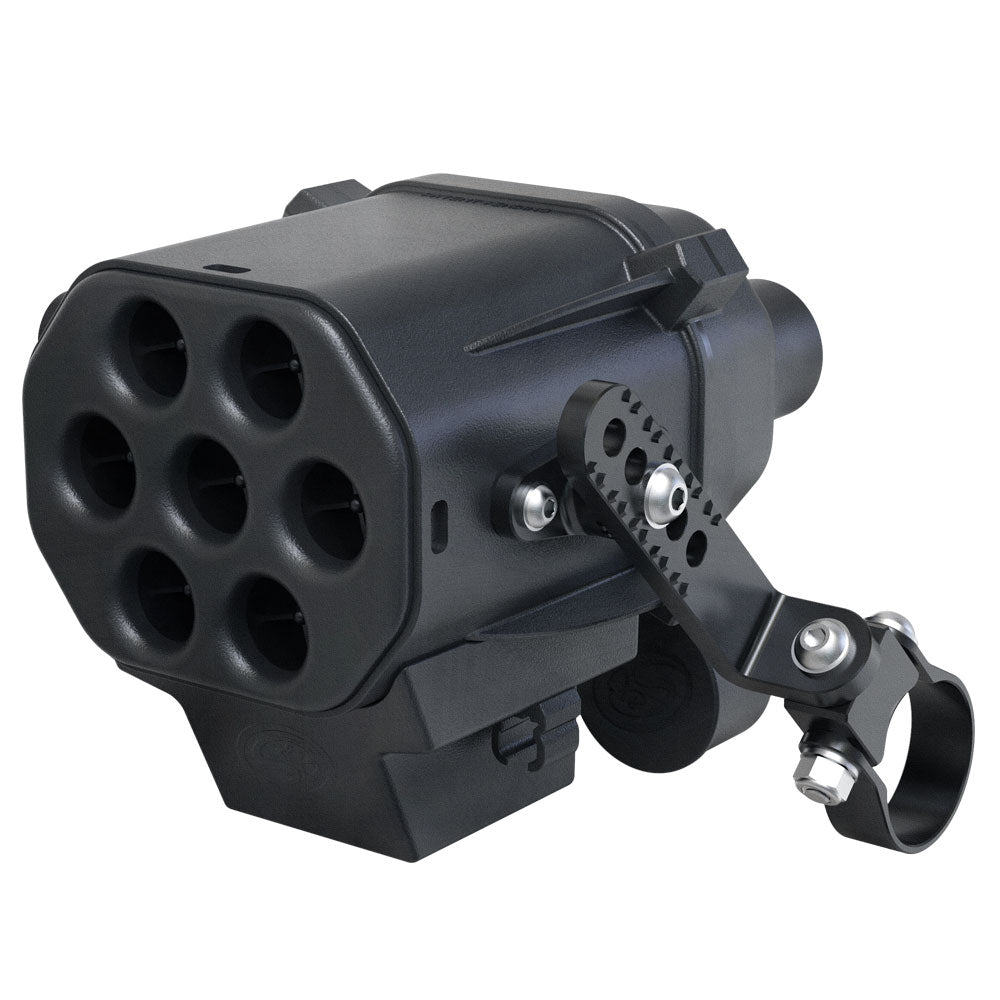

The S&B 76-6001 Helmet Particle Separator is a filterless, variable-speed forced-air pumper that supplies clean air to two helmets at once, using military-derived particle-separation technology instead of a filter element.

Key Benefits

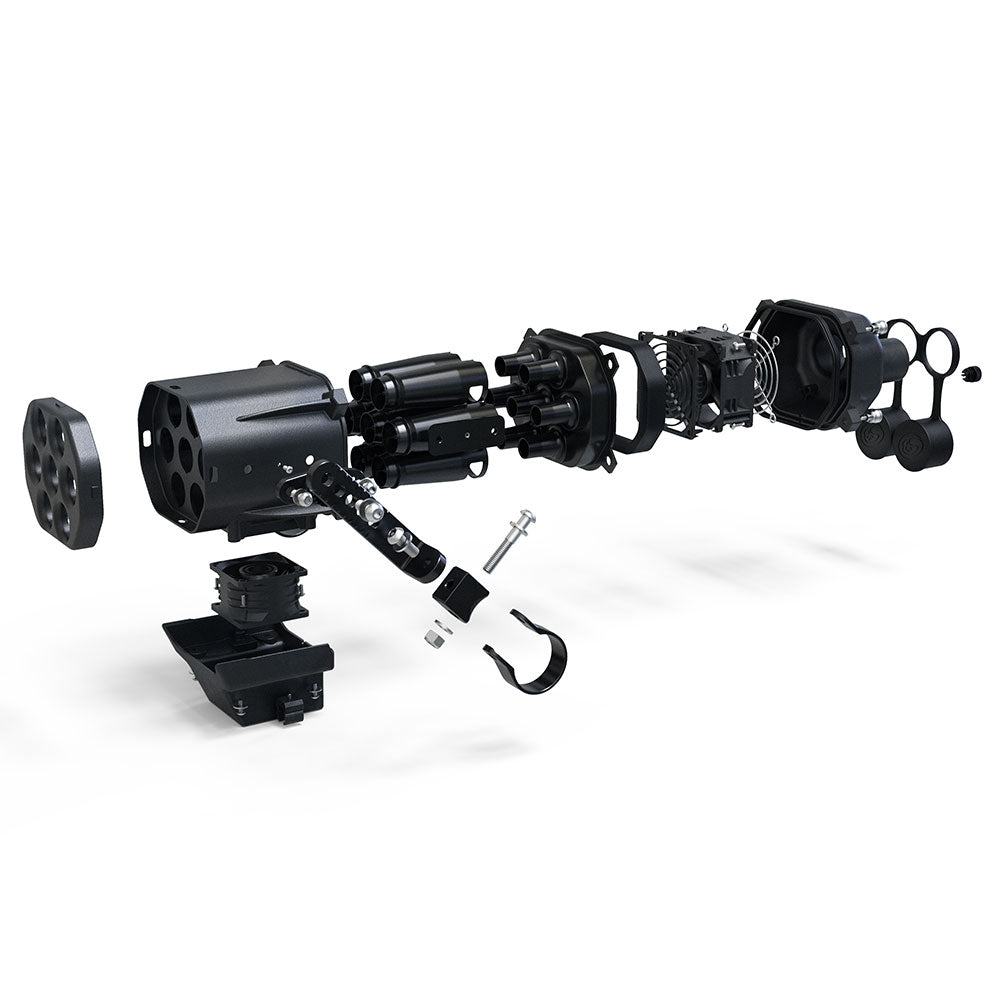

• Filterless by design: a primary fan draws air into the blower while a secondary fan below blows the silt, sand and dust back out of the housing, so there is no element to clog and no airflow drop-off as the day gets dustier.
• S&B rates it at 99.36% dust removal, measured with ISO Coarse Dust in a climate-controlled laboratory with one 6 ft hose attached.

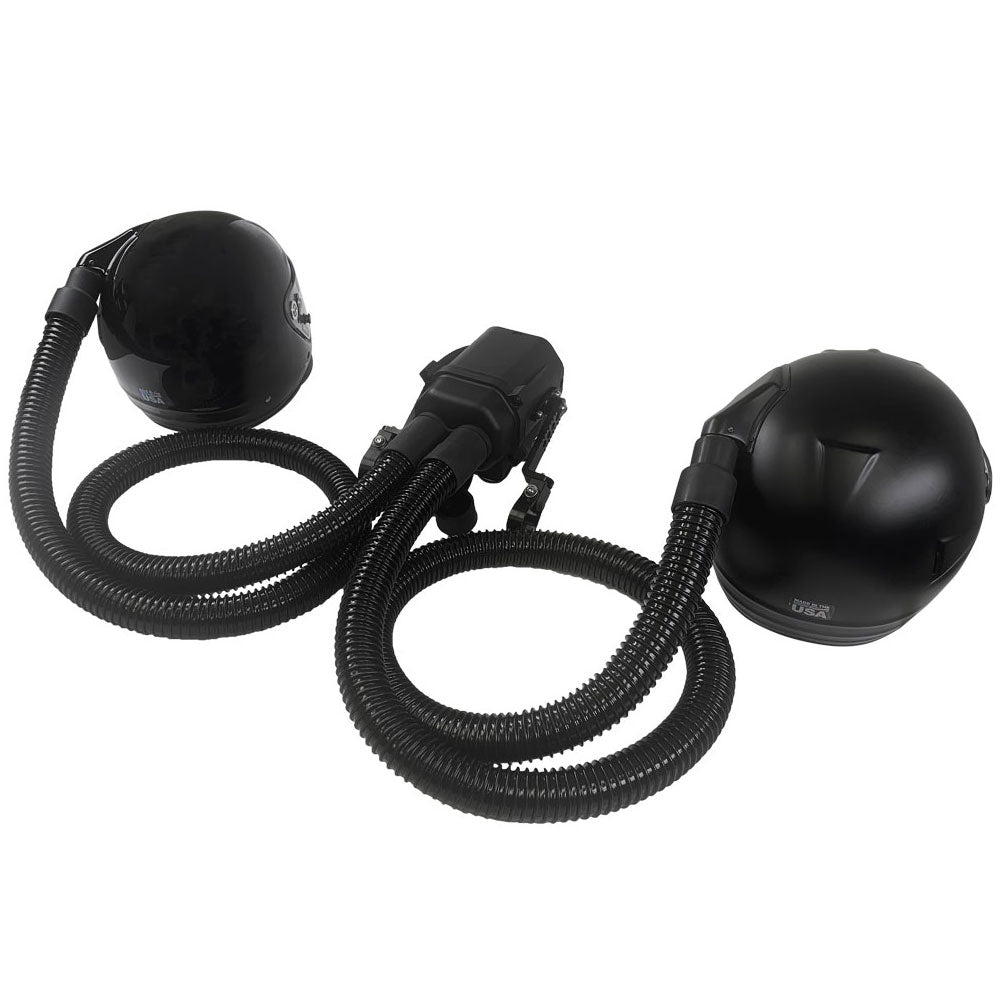

• Dual outlet ports feed two helmets from one unit, and the ports have integrated rubber caps so a single-rider setup can be capped off.
• Variable-speed controller lets you turn the airflow up when the dust hangs and back down when the trail clears.
• Draws 9.3 amps at maximum speed, so it can be planned into a vehicle's accessory circuit rather than guessed at.
• Ships with two 6 ft hoses plus bar mount kits and hose hangers in a range of tube diameters, so it mounts to a roll cage without fabrication.

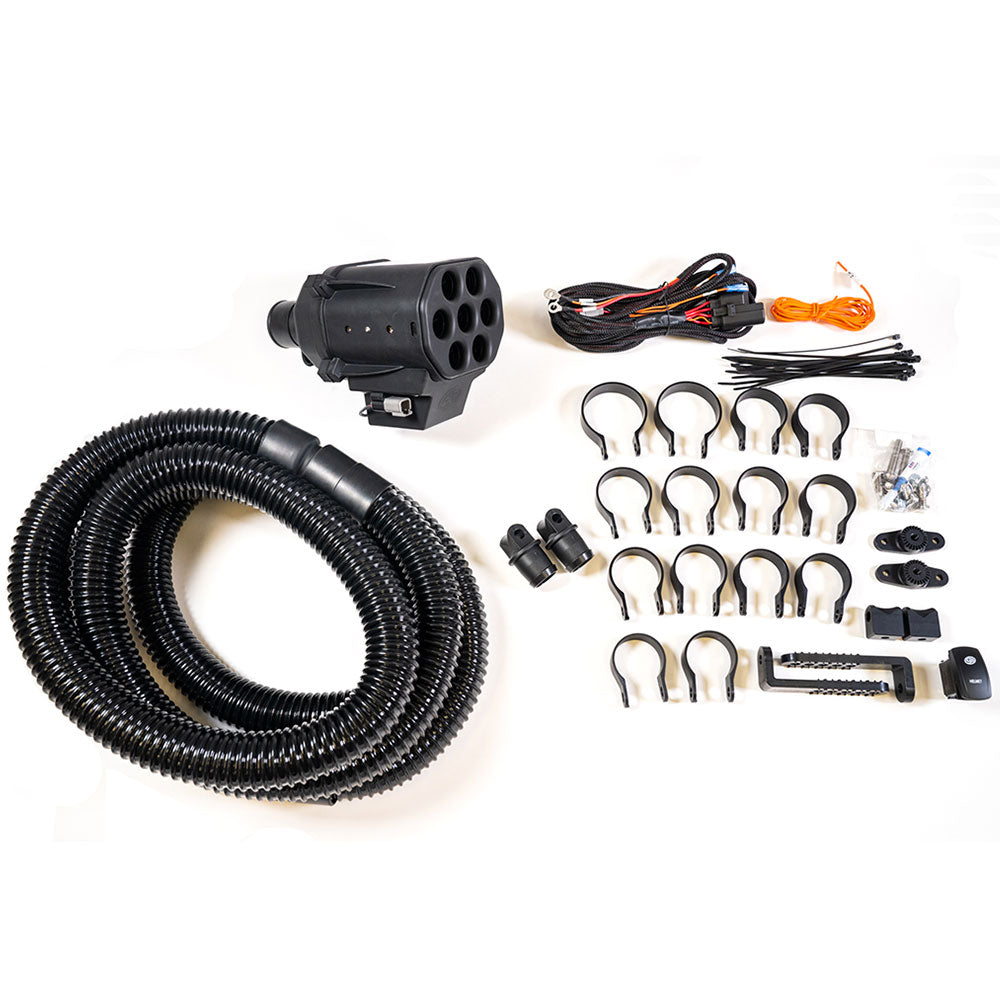

What's Included

• Helmet Particle Separator assembly
• Two 6 ft flexible pumper hoses
• Bar mount kits for 1.25", 1.5", 1.75", 1.85", 2" and 2.5" tubing
• Hose hanger mount kits for 1.75", 1.85" and 2" tubing

Fitment

The Helmet Particle Separator is helmet air-supply equipment rather than a vehicle-specific part, so there is no year-and-model fitment list for it. It clamps to a roll bar rather than bolting to a chassis, and the supplied bar mount kits cover 1.25", 1.5", 1.75", 1.85", 2" and 2.5" tubing, which spans the common cage sizes on UTVs, sand cars, buggies and race trucks.

Compatibility is decided by the helmet, not the machine. S&B states the unit works with helmets that accept a fresh-air hose with a 1.5 inch inside diameter, which is the size of both supplied 6 ft hoses. Because the unit has two outlet ports, one Separator serves a driver and a co-driver.

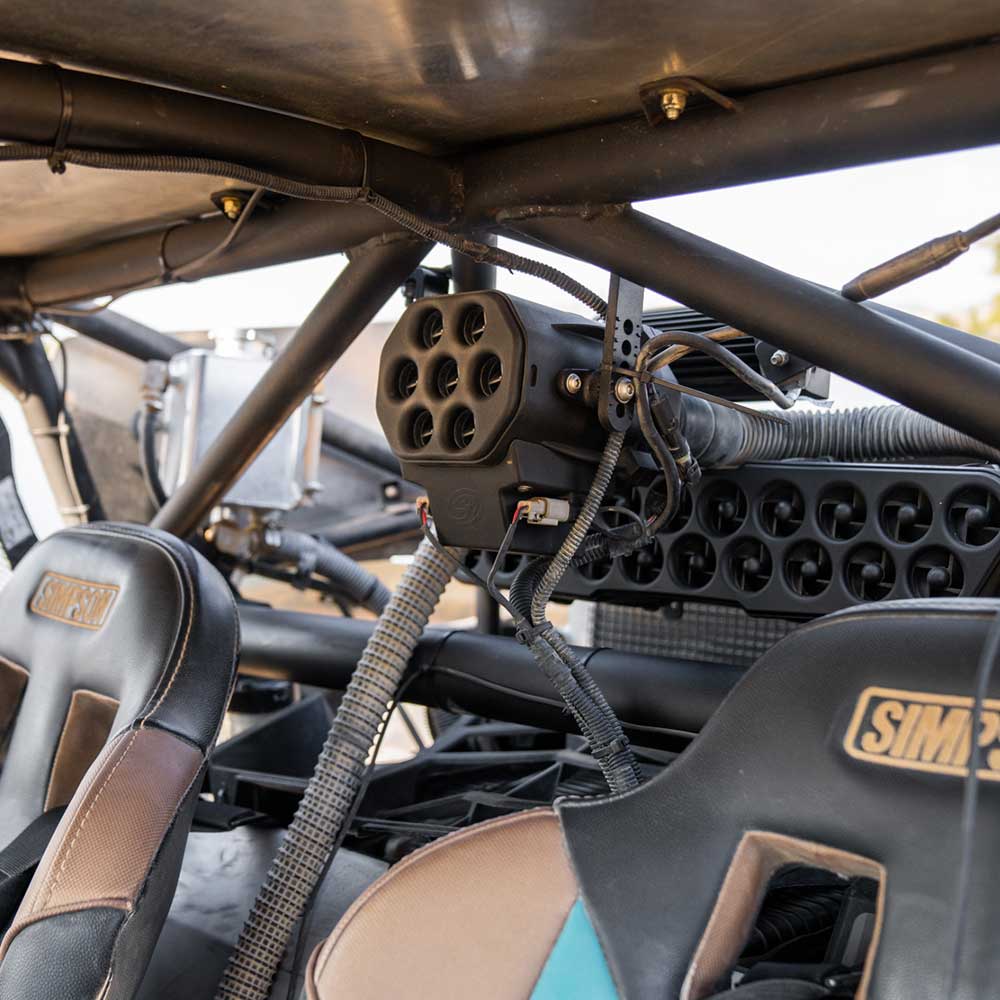

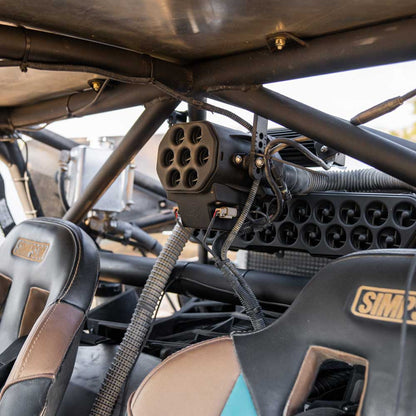

S&B specifies that the unit be mounted horizontally with the exhaust fan pointing straight down, so the ejected dust falls clear. The intake side can face either forward or rearward, which gives some freedom over where in the cage it sits.
