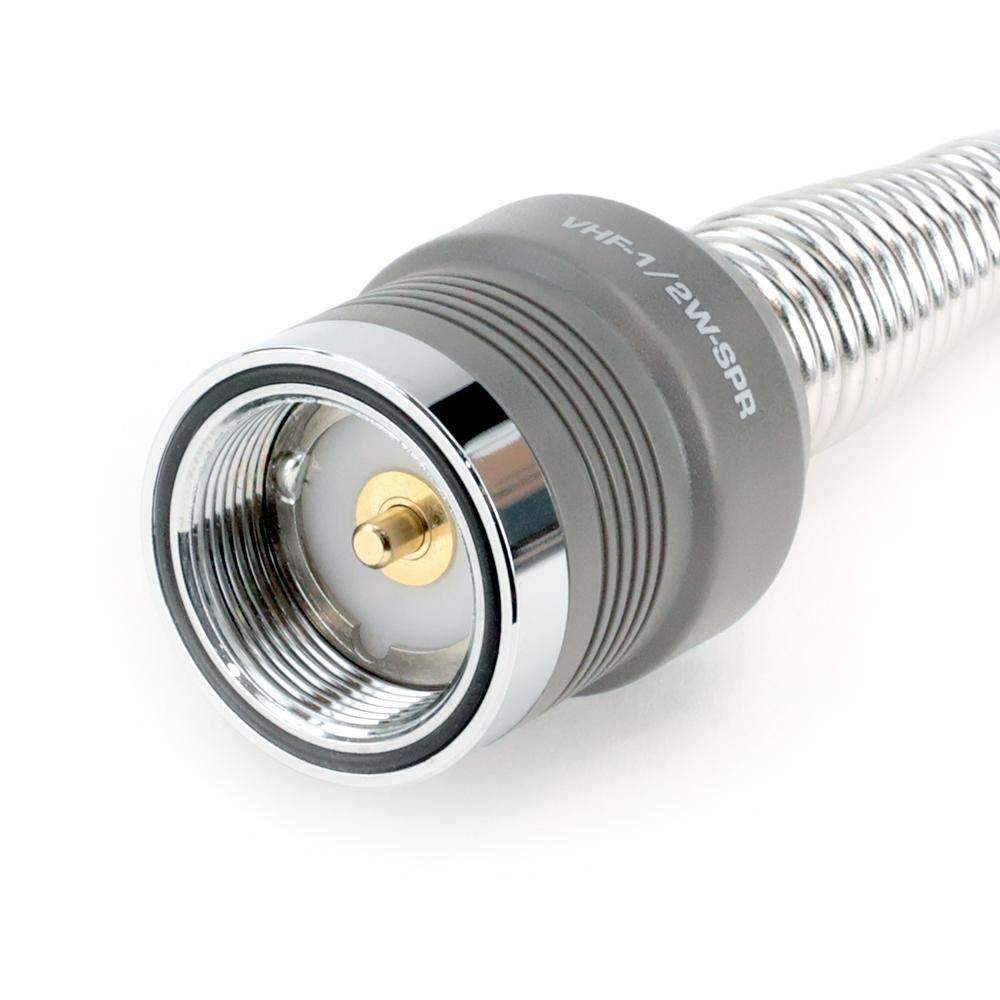

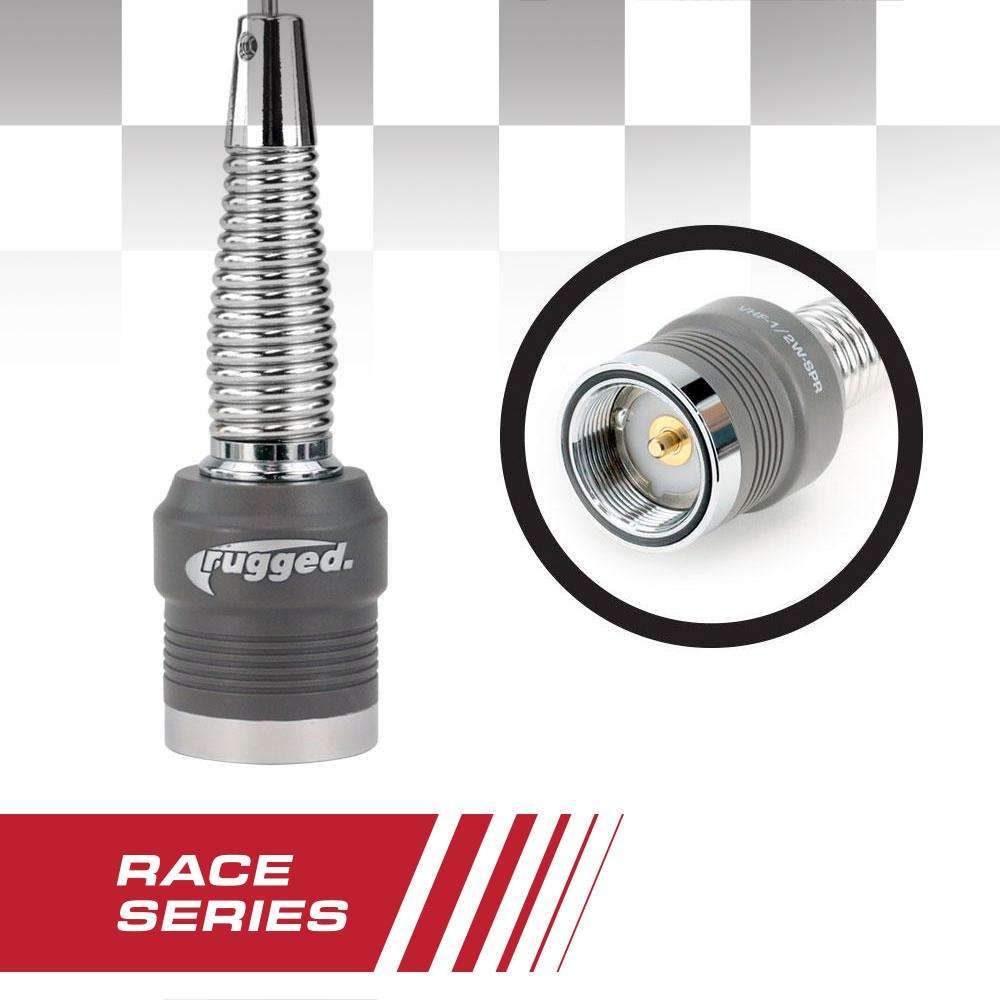

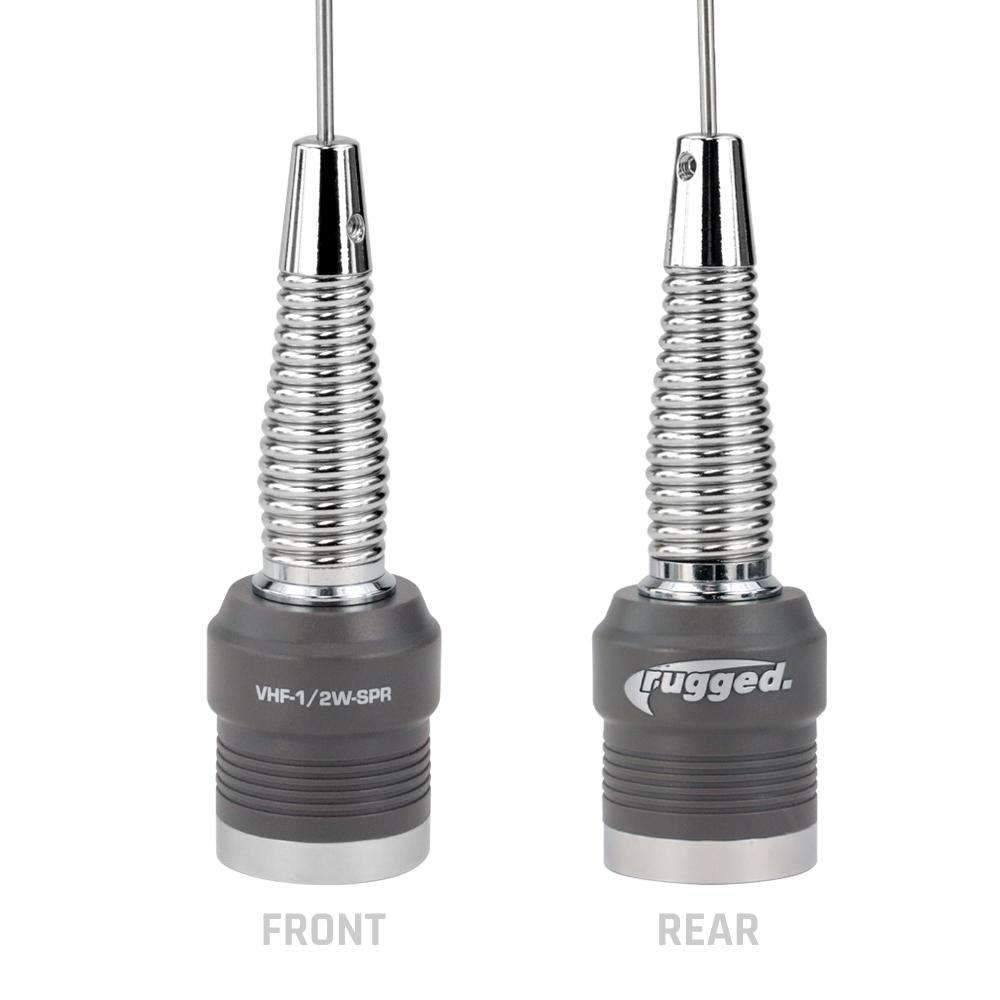

NGP (No Ground Plane), 1/2 wave base loaded antenna. Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring.
This is our most popular antenna, providing reliable performance in all types of conditions and applications. "No Ground Plane" means the antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.
All antennas are already pre-tuned (cut) for application. Simply order, mount, and ride!
VHF Range |
144-174 |
Connector Type |
None |
Color |
Chrome Model(s) |
Gain |
2.4 dB |
VHF Bandwidth |
4 MHz |
Power (watts) |
200 |
Whip Material |
17-7PH Stainless Steel |
Whip Length |
29" VHF |
Base Style |
NMO Style |
Mount Style |
None |
Connector Type |
None |
Warranty |
2 Year |
