Rugged Radios Antenna Coax Cable Kit - RACE SERIES - by Rugged Radios

The Rugged Radios RACE Series antenna coax cable kit (part # NMO-RACE) is a purpose-built racing antenna cable with heavy-duty triple shielding, X1C low-loss race-spec cabling and a one-piece nickel-plated NMO antenna mount, offered here in 7 ft and 9 ft lengths. It is built to keep critical communications alive in harsh race environments.

Compatibility and mounting

The kit uses standard PL-259 UHF connectors and works with Rugged Radios mobile radios, Kenwood mobile radios, Icom mobile radios and most other mobile radios with a standard PL-259 antenna connection. Maximum mounting surface thickness is 7/16 in and the mounting hole diameter is 5/8 in.

Specifications

• Lengths: 7 ft or 9 ft (choose above)
• X1C low-loss race-spec cable with heavy-duty triple shielding

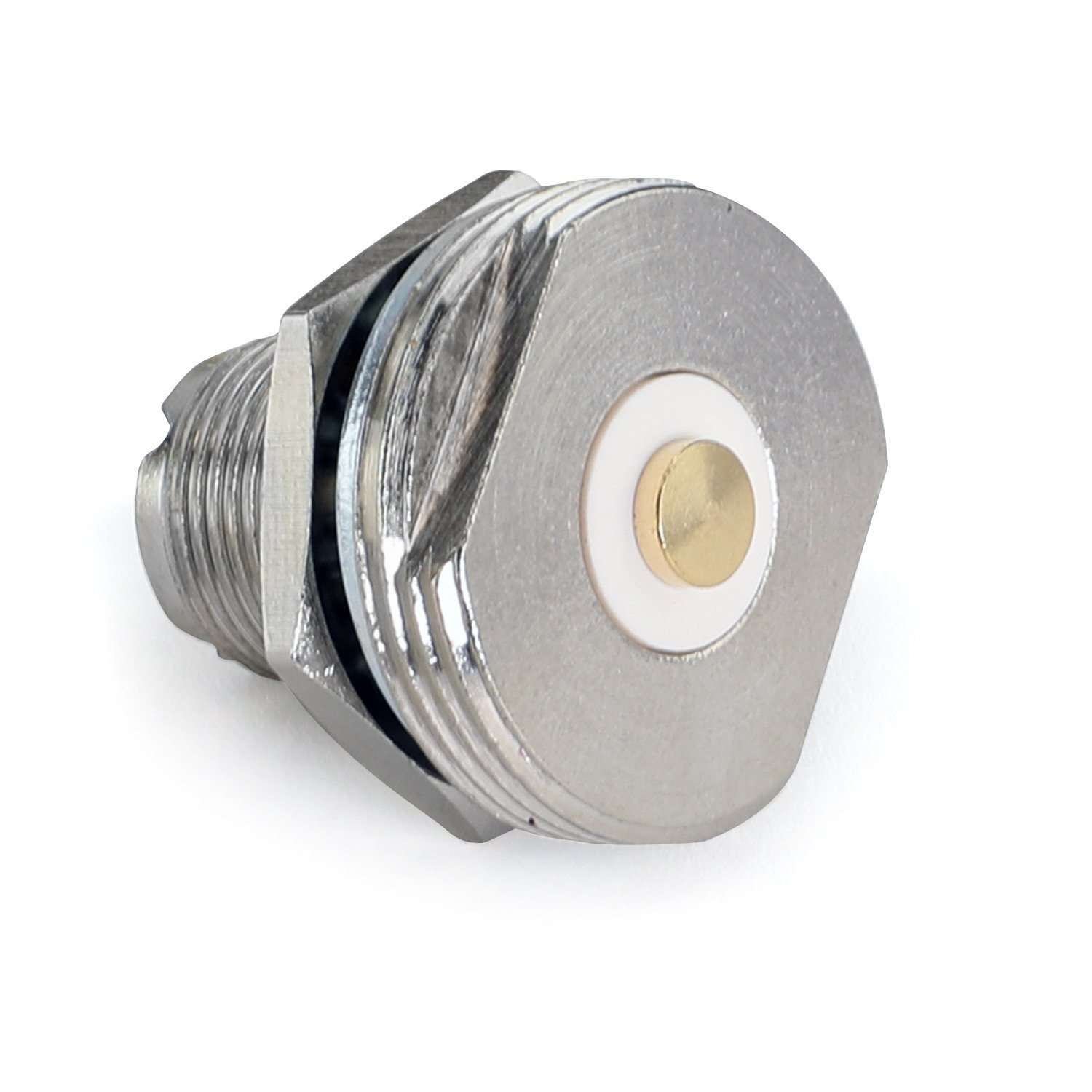

• One-piece nickel-plated heavy-duty NMO antenna mount
• High-visibility cable jacket

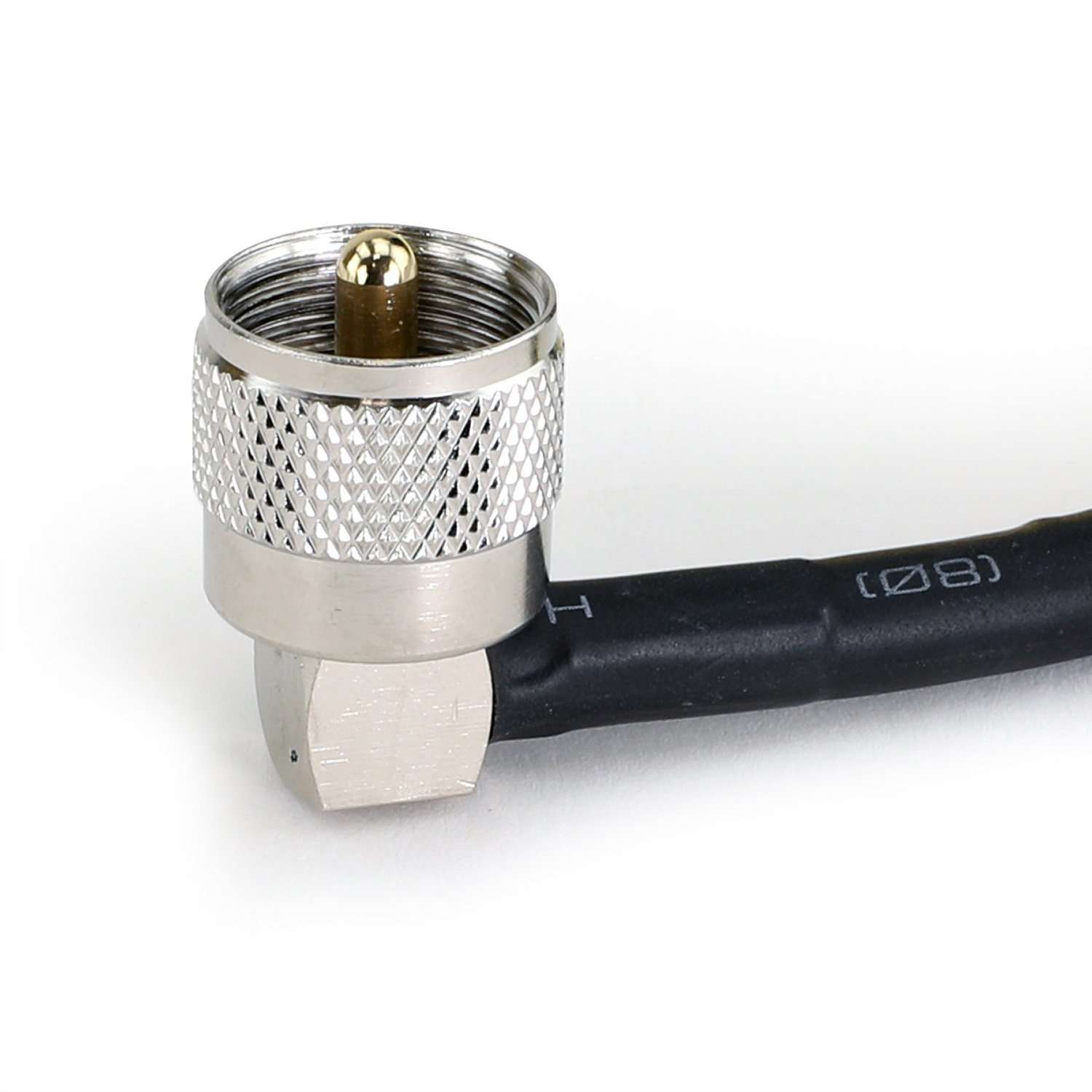

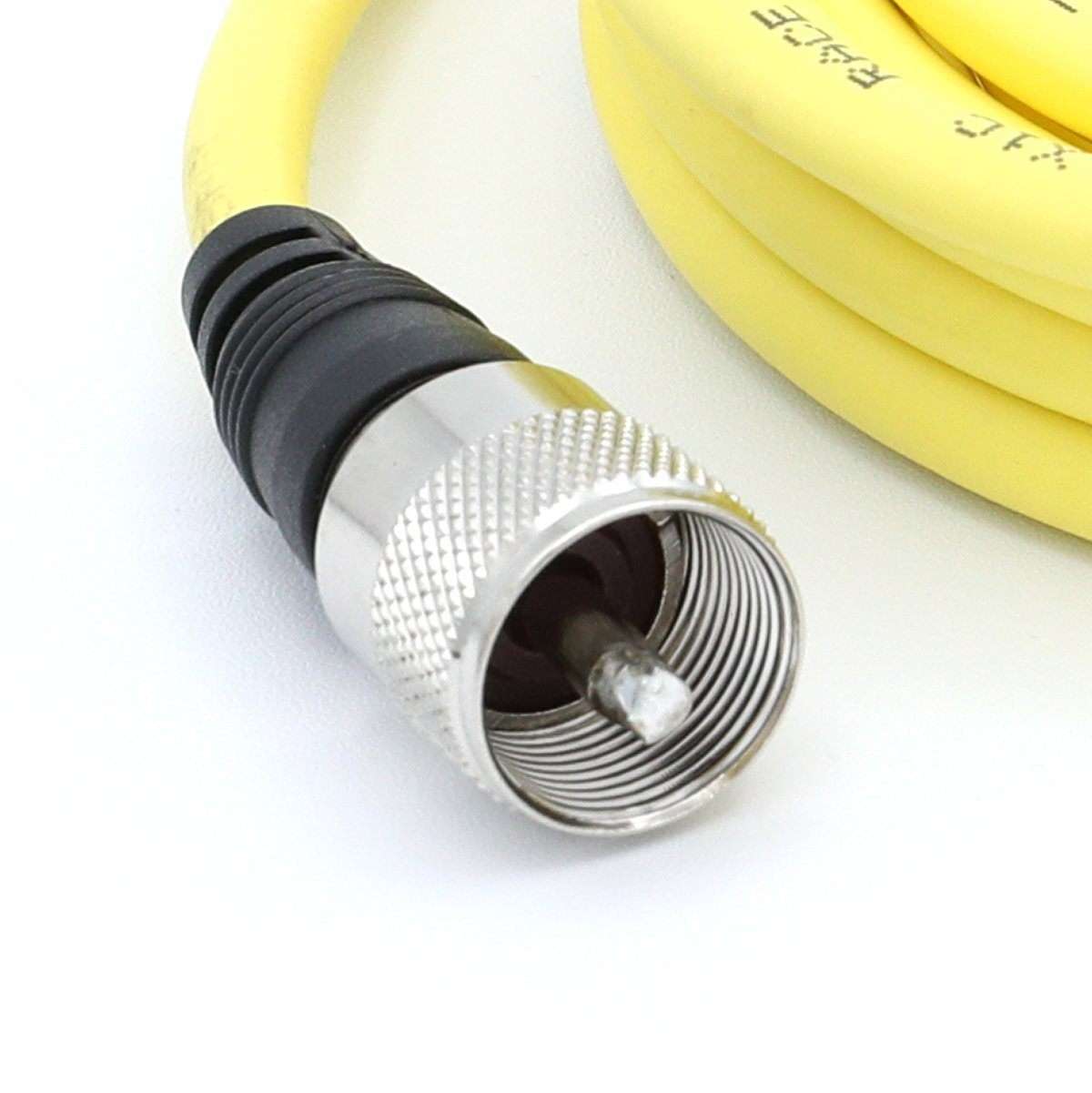

• Standard PL-259 UHF connectors
• Max mounting surface thickness: 7/16 in; mounting hole: 5/8 in

Sold as one antenna coax cable kit. Antenna sold separately.

Frequently Asked Questions

Which radios does this kit work with?

Rugged Radios mobile radios plus Kenwood, Icom and most other mobile radios that use a standard PL-259 antenna connector.

How is the RACE Series different from the standard NMO cable?

It adds heavy-duty triple shielding, X1C low-loss race-spec cable, a one-piece heavy-duty NMO mount and a high-vis jacket for race use; the standard NMO-MT cable is the everyday option.

What size mounting hole does it need?

A 5/8 in mounting hole, on a surface up to 7/16 in thick.
