Rugged Radios 15 Ft Antenna Cable with Removable Mini 3/8 NMO Bulkhead
Rugged Radios 15 Ft Antenna Cable with Removable Mini 3/8 NMO Bulkhead
SKU:NMO-MINI-U-15
Available — ships in 1–2 business days
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- 15 ft X1C low-loss race-grade antenna cable

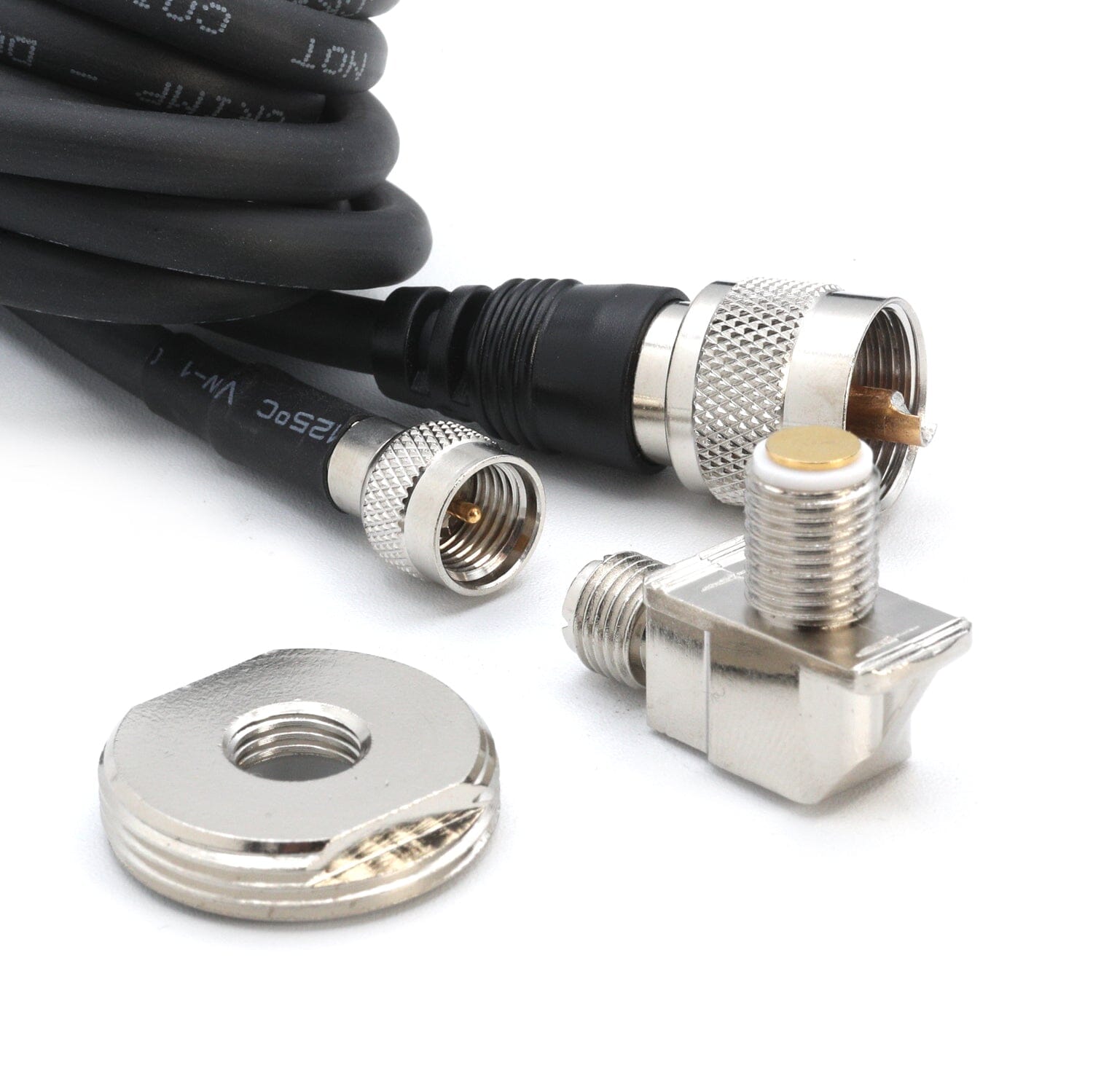

- Removable mini 3/8 in NMO bulkhead simplifies routing and service
- One-piece nickel-plated antenna mount
- Standard PL-259 connector fits Rugged, Kenwood, Icom, and most mobiles
- Mounts through up to 7/16 in surfaces; cable cannot be cut or stripped

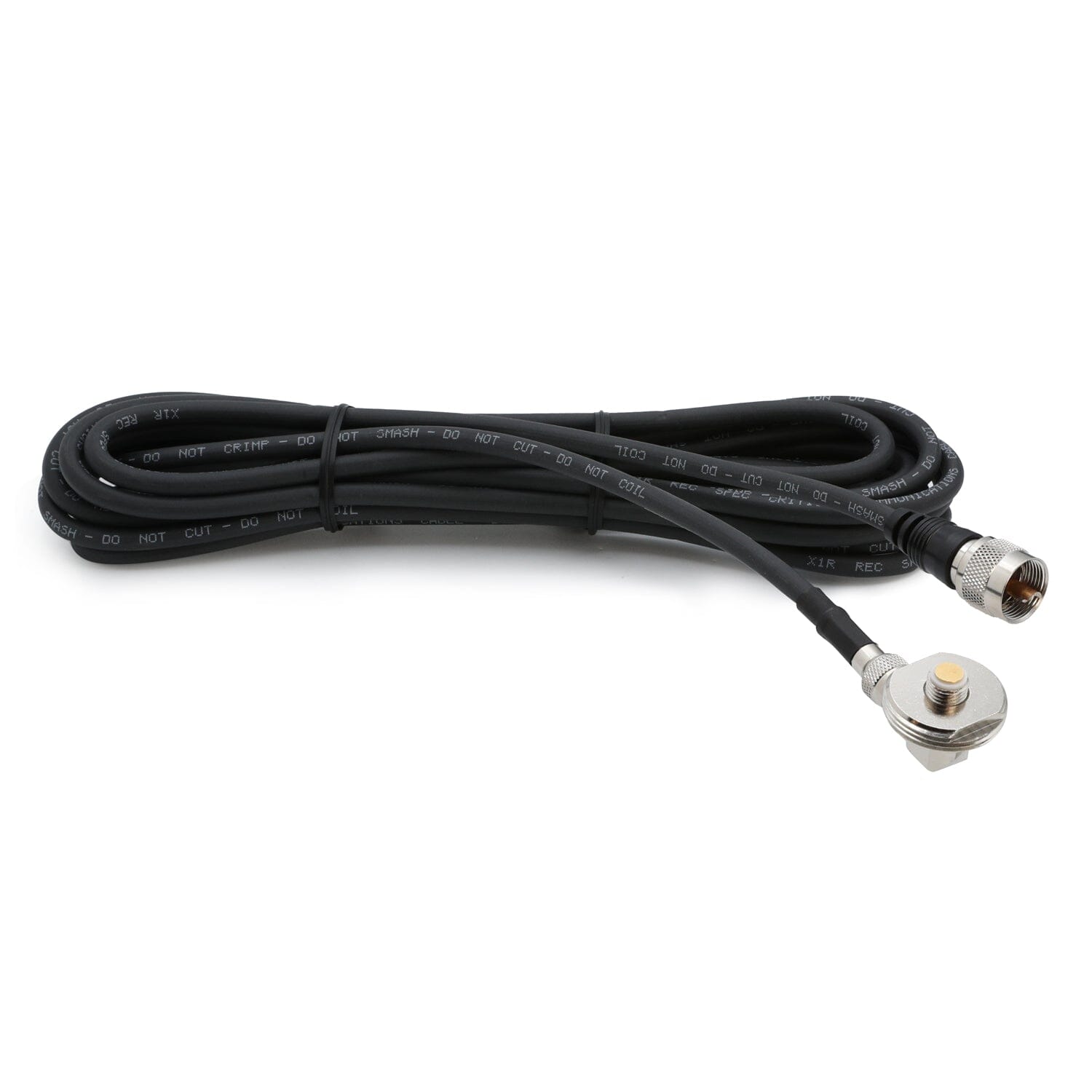

The Rugged Radios 15 ft antenna cable with removable mini 3/8 NMO bulkhead (MPN NMO-MINI-U-15) is a race-grade antenna feed line for UTV and mobile radio installs. It uses X1C low-loss cabling and a one-piece nickel-plated antenna mount, and the removable mini bulkhead makes routing and servicing the cable far easier than a fixed-mount line.
Specifications
- Length: 15 ft; X1C low-loss race-grade coax

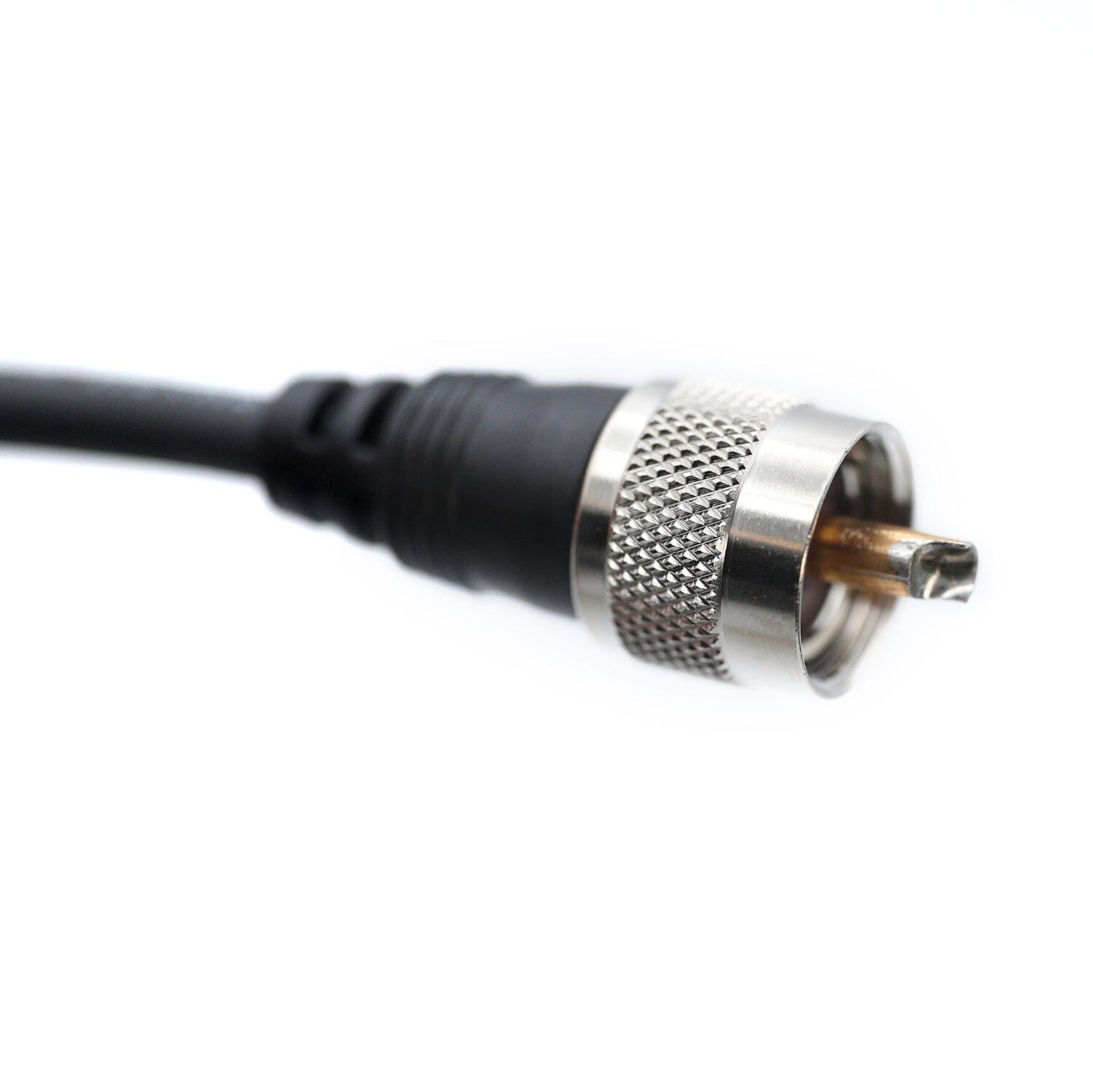

- Radio side: standard PL-259 UHF connector

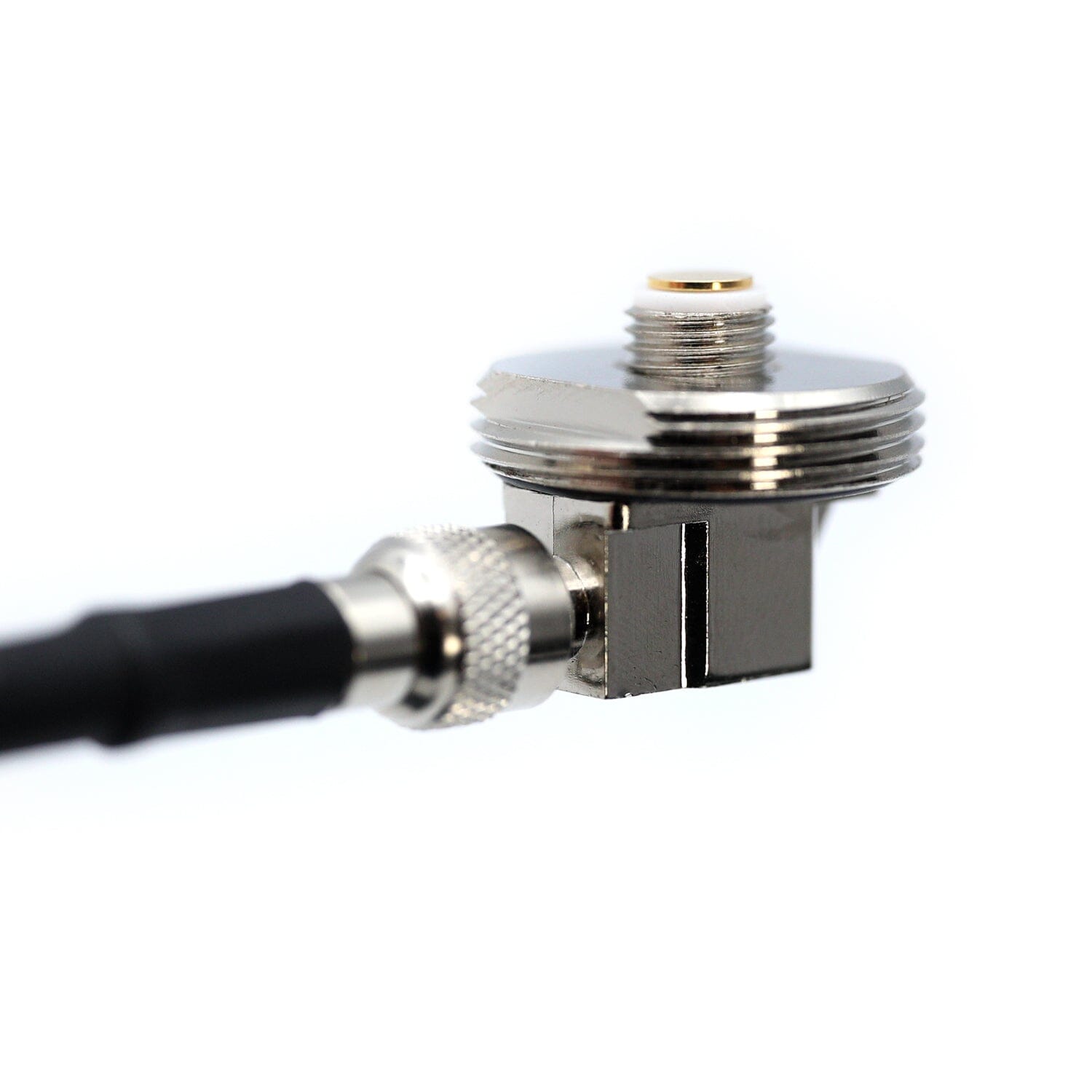

- Mount: removable mini 3/8 in NMO bulkhead, one-piece nickel-plated
- Max mounting surface thickness: 7/16 in; mounting hole: 3/8 in
Compatibility: works with Rugged Radios, Kenwood, and Icom mobile radios — and most other mobiles that use a standard PL-259 antenna connector.
Note: the cable design does not support cutting or stripping — do not shorten it. If the bulkhead is ever damaged, it is replaceable separately as Rugged NMO-MINI-BULKHEAD.
Frequently Asked Questions
Which radios does this antenna cable work with?
Any mobile radio with a standard PL-259 UHF antenna connector, including Rugged Radios, Kenwood, and Icom mobiles.
Can I cut the cable to length?
No. The cable design does not support cutting or stripping — route the full 15 ft and secure the excess.
What surface thickness can the bulkhead mount through?
Up to 7/16 in thick, through a 3/8 in mounting hole. The mini bulkhead is removable for easy cable management and servicing.
FAQ
FAQ
Which radios does this antenna cable work with?
Any mobile radio with a standard PL-259 UHF antenna connector, including Rugged Radios, Kenwood, and Icom mobiles.
Can I cut the cable to length?
No. The cable design does not support cutting or stripping — route the full 15 ft and secure the excess.
What surface thickness can the bulkhead mount through?
Up to 7/16 in thick, through a 3/8 in mounting hole. The mini bulkhead is removable for easy cable management and servicing.
