Rugged Radios Military Grade Nexus Replacement Jack TJ-102
Rugged Radios Military Grade Nexus Replacement Jack TJ-102
SKU:NEXUS-TJ102-BLUE
Available — ships in 1–2 business days
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- 4-conductor Nexus in-line jack built to MIL-C-9177
- Contacts molded into the body; configured for larger cable diameter
- Nickel-plated beryllium copper contacts, pre-tinned solder terminals
- Contact resistance under 0.02 ohm; insulation resistance over 1,000 megohm
- Requires soldering to install — wire-in repair part

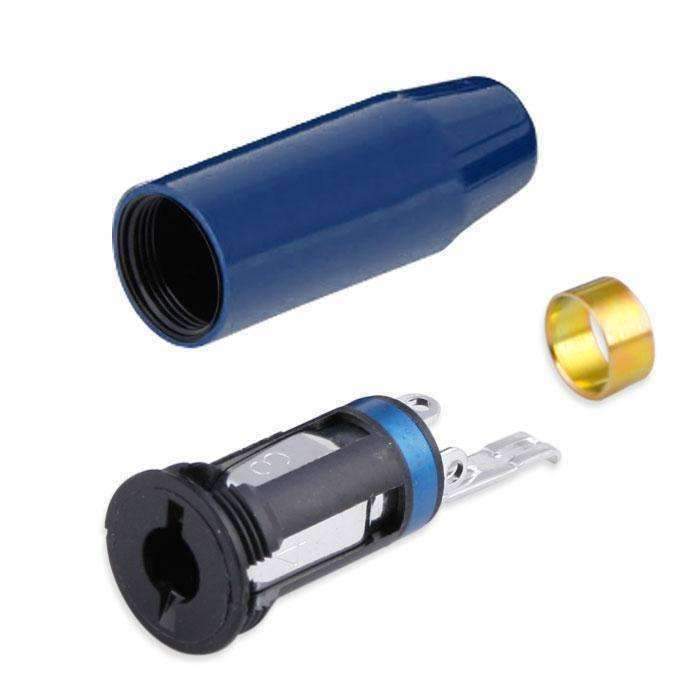

The Rugged Radios TJ-102 (NEXUS-TJ102-BLUE) is a military-grade Nexus in-line replacement jack with four conductors, built to the MIL-C-9177 standard for ruggedized commercial and military communication wiring. Its contacts are molded into the plastic body and it is configured for larger-diameter cable, making it the repair part for rebuilding a damaged Nexus connection on racing and off-road comm harnesses.
This is a wire-in repair component: the terminals are pre-tinned solder terminals, so installation requires soldering the jack onto your cable.
Sold as a single jack.
FAQ
FAQ
What is the TJ-102 jack used for?
It replaces a damaged 4-conductor Nexus in-line jack on comm harnesses — the standard connection used between racing headsets, helmet kits, and intercom cables.
Does installing it require soldering?
Yes. The TJ-102 has pre-tinned solder terminals and must be soldered onto the cable — it is a repair part, not a plug-in adapter.
Is it really military-grade?
The jack is built to the MIL-C-9177 standard (M9177/3-1, U-92A/U) with nickel-plated beryllium copper contacts, the specification used for ruggedized military communication connectors.
Specifications
Specifications
- type
- in-line Nexus jack (TJ-102), 4 conductor
- notes
- Contact resistance under 0.02 ohm; insulation resistance over 1,000 megohm; Insertion force 13 lb max; withdrawal force 6-10 lb
- shell
- plastic body with molded-in contacts
- contacts
- nickel-plated beryllium copper; pre-tinned solder terminals
- standard
- MIL-C-9177 (M9177/3-1, U-92A/U)

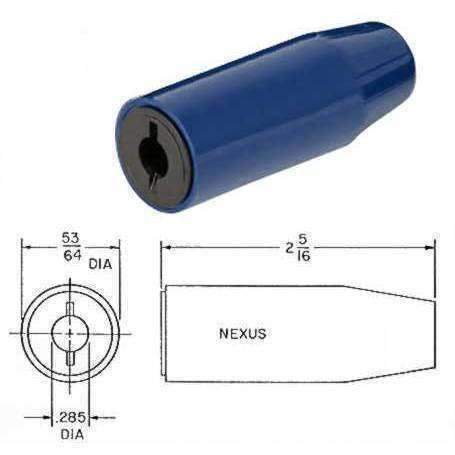

- overall dimensions
- 0.828 in wide and tall x 2.312 in long; 0.285 in contact diameter
