Rugged Radios Antenna Bar Mount for Horizontal Bar

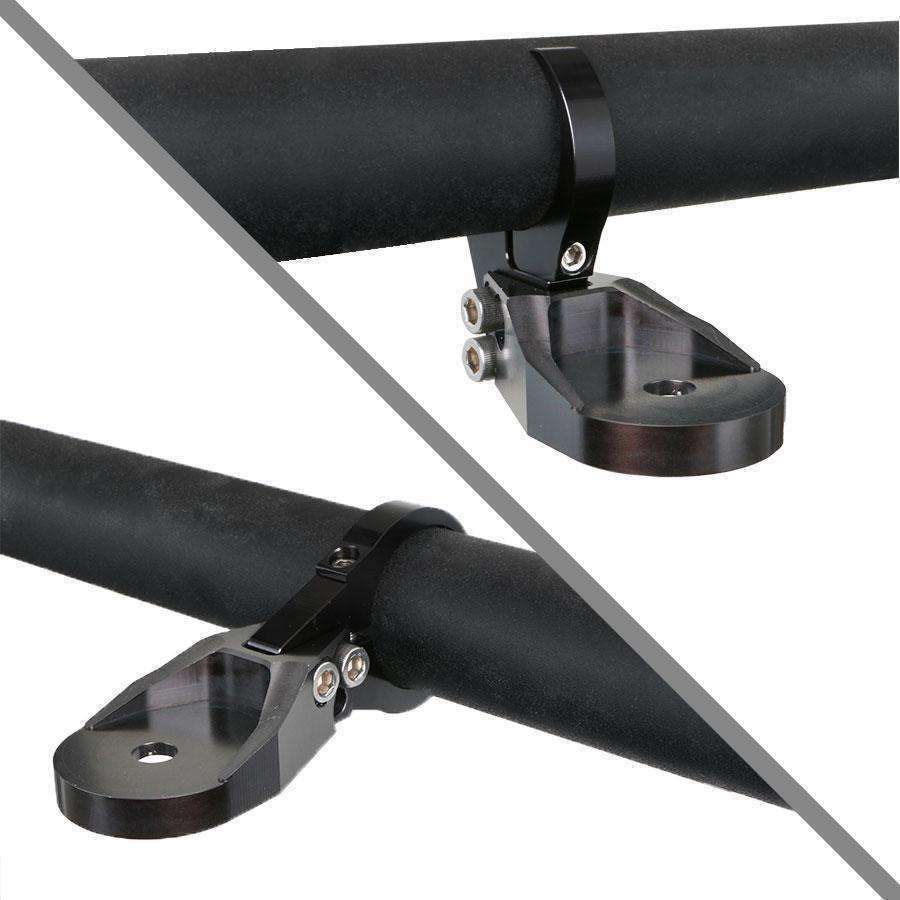

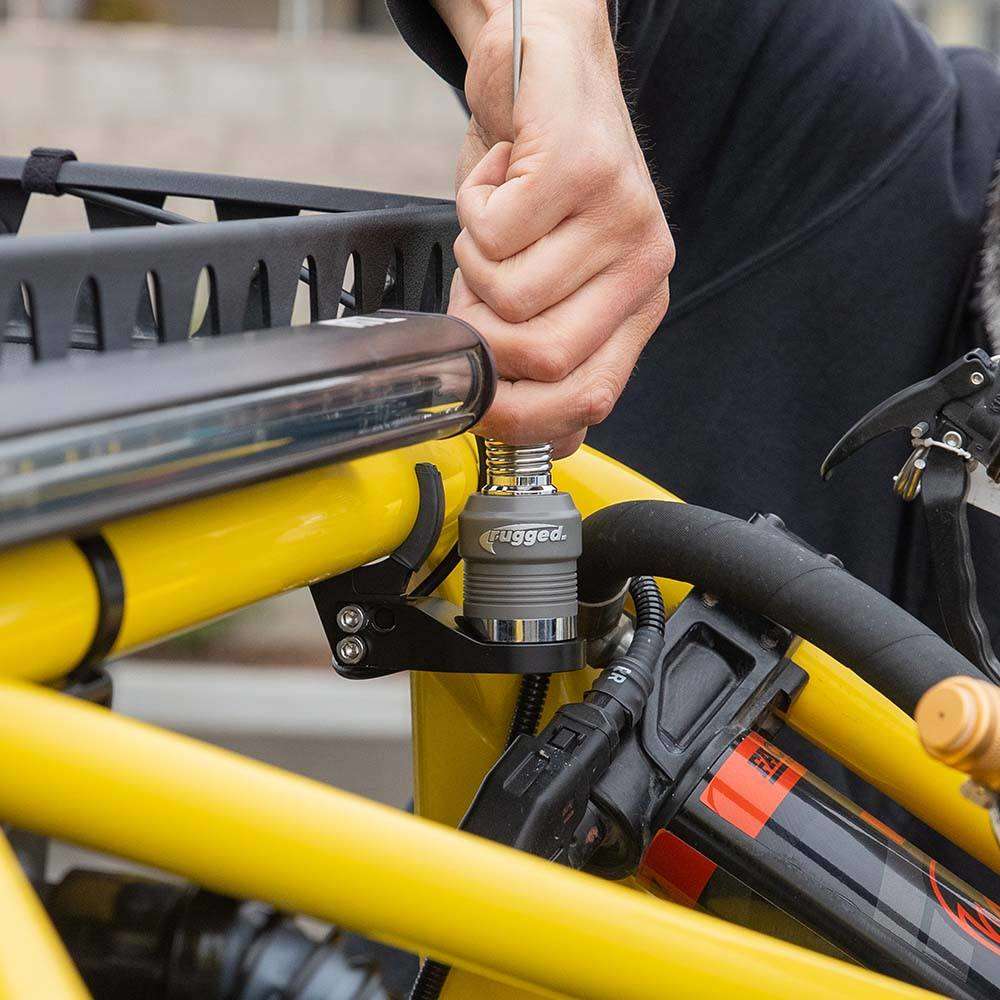

The Rugged Radios AMH-2.0 is a billet antenna bar mount for horizontal cage bars, clamping to 1 in, 1.25 in, 1.5 in, 1.75 in, 1.8 in or 2 in tubing and accepting 3/8-inch NMO-style antenna cable mounts. Because it clamps to the bar, it installs and relocates without welding or drilling — unbolt it and move the antenna wherever reception is best.

Compatibility

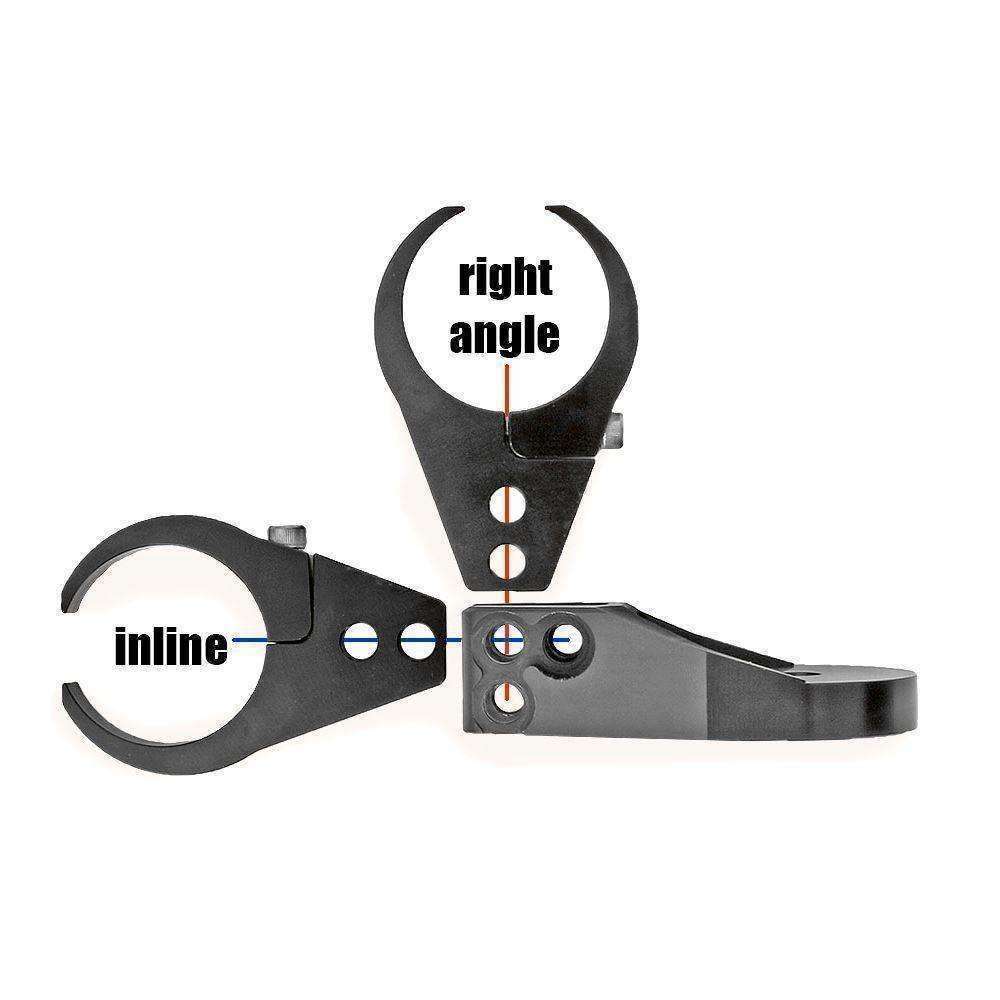

The AMH-2.0 fits any vehicle with a horizontal bar in the supported tube sizes — Rugged lists applications including Arctic Cat Wildcat, Can-Am Commander and Maverick, Honda Big Red, Kawasaki Teryx, Polaris Pro R, Redline Revolt, Segway and Yamaha Rhino among others. It is designed for 3/8-inch NMO-style antenna cables and does not work with the NMO-MT-3/4 mount. The updated design offers two positions on a horizontal bar: extending outward perpendicular, or dropping the antenna down and away from obstructions.

Specifications

• Billet aluminum bar mount
• Clamps 1 / 1.25 / 1.5 / 1.75 / 1.8 / 2 in horizontal tubing
• Accepts 3/8-inch NMO-style antenna cable mounts (not NMO-MT-3/4)
• Two mounting orientations for antenna placement
• Bolt-on clamp — no welding or drilling

Sold as the bar mount only. Antenna and NMO cable mount are not included.

Frequently Asked Questions

What tube sizes does the AMH-2.0 clamp to?

Horizontal bars in 1 in, 1.25 in, 1.5 in, 1.75 in, 1.8 in and 2 in diameters.

Which antenna mounts does it accept?

3/8-inch NMO-style antenna cable mounts. It does not work with the NMO-MT-3/4.

Does installing it require drilling?

No. It clamps and bolts to the bar, so it installs — and relocates — without welding or drilling.
