Rugged Radios Antenna Bar Mount for 1.5in Roll Bar

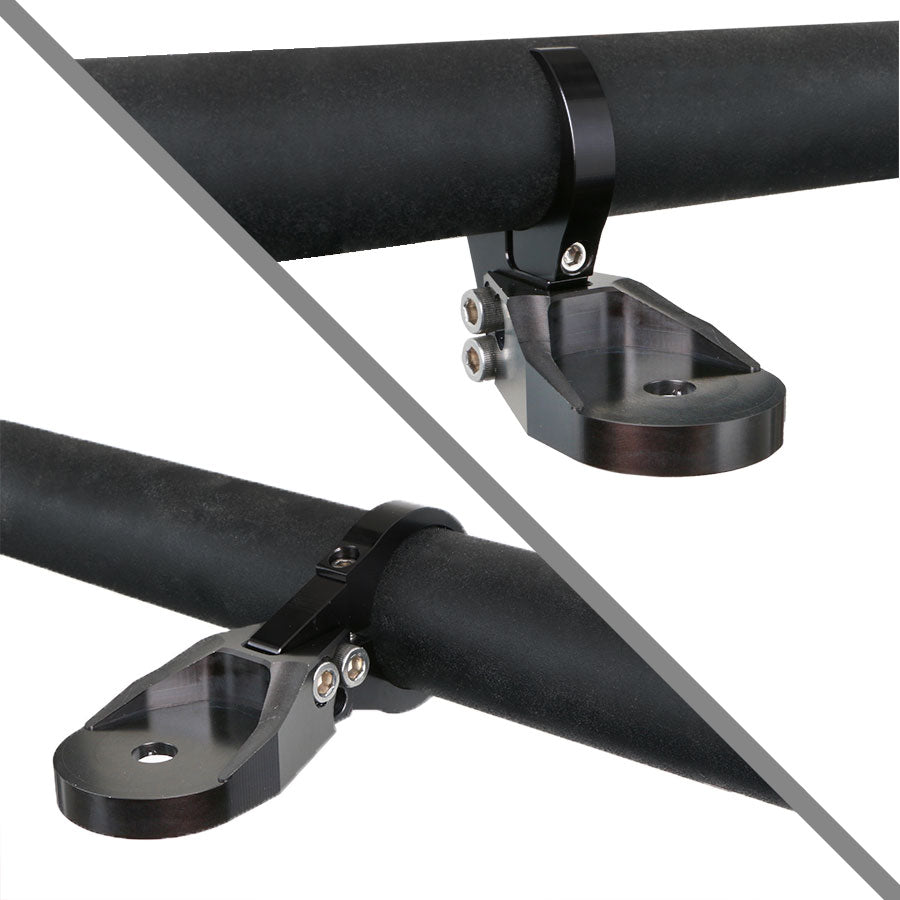

The Rugged Radios AMH Antenna Bar Mount clamps a 3/8-inch NMO-style antenna mount to horizontal roll cage or accessory tubing, offered here in 1.0-inch and 1.8-inch clamp bores. The billet clamp bolts on with no welding, no drilling, and no mess, and can be unbolted and relocated at any time. Two placement options are built in: the inline position extends the antenna outward, perpendicular from the horizontal bar, while the right-angle position drops the mount down and away from obstructions such as roof tapering over the bar.

What's Included

Sold as one complete assembly: the NMO-style antenna mount plus a horizontal-bar clamp in your chosen bore size. Antenna and antenna cable are not included. Rugged also sells the antenna mount by itself, without a bar clamp, as ANT-MT-H-BLK.

Fitment

Choose the bore that matches your bar. Per Rugged's size guide, the front seat-back tube on the Can-Am Commander, Maverick, and Defender is 1.00 inch (AMH-1.0), while the Can-Am Maverick X3 and X3 Max perimeter and crossbar tubes and Maverick R perimeter tubes are 1.80 inch (AMH-1.8). Does not fit NMO-MT-3/4 antenna cable mounts - it accepts 3/8-inch NMO-style cables only. The 1.8-inch clamp does not fit 1.75-inch tubing such as Polaris RZR and Ranger perimeter cages; that size needs the AMH-1.75, sold separately by Rugged along with 1.25, 1.5, 2.0, and larger bores.

Which size fits my machine?

Measure your bar or use Rugged's guide: Commander/Maverick/Defender seat-back tube = 1.0 in; Maverick X3 family cage = 1.8 in. Polaris RZR/Ranger cages are 1.75 in and need the AMH-1.75.

Will it work with my antenna?

It accepts 3/8-inch NMO-style antenna cable mounts only. It does not work with NMO-MT-3/4 style cables.

Do I need to drill or weld?

No. The clamp bolts around the bar and can be unbolted and relocated at any time.
