RACELINE

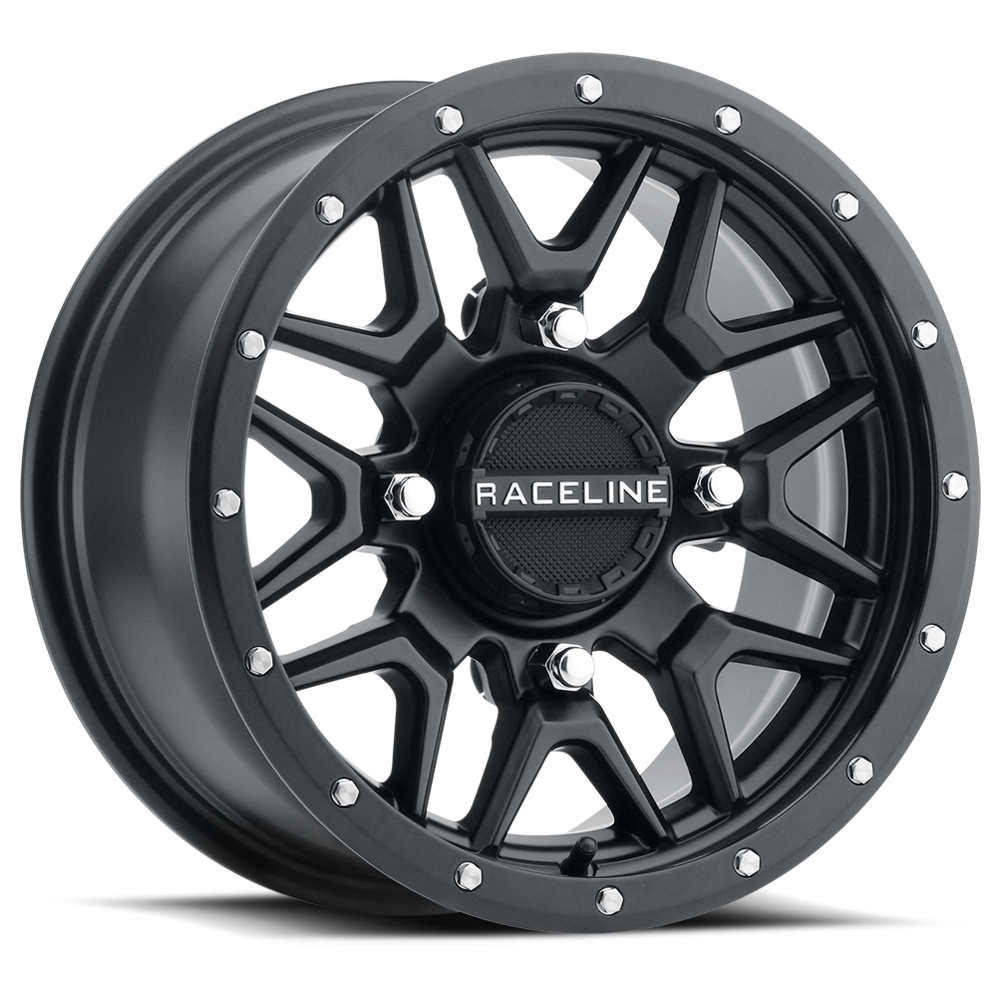

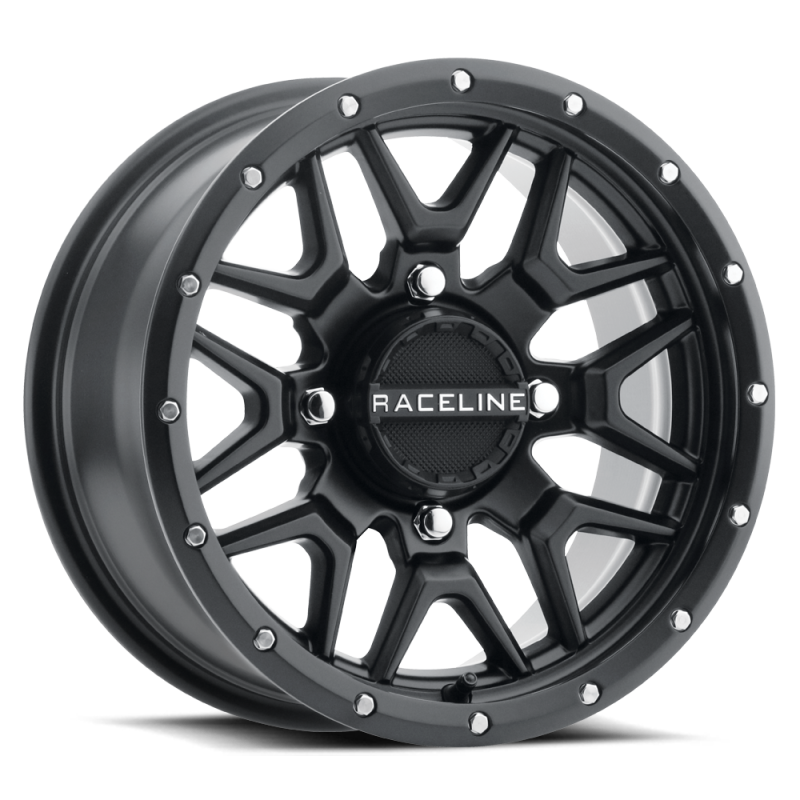

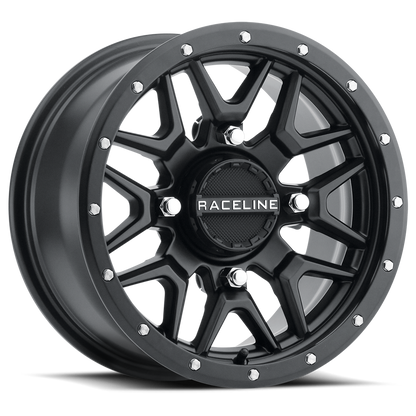

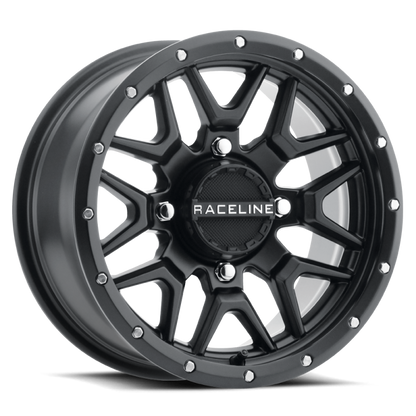

Raceline Krank 14x7 4x156 +10mm UTV Wheel
Raceline Krank 14x7 4x156 +10mm UTV Wheel
SKU:A94B-47056+10
In stock
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Durable A356 aluminum construction handles hard off-road use while keeping weight down for responsive handling
- 14x7 size with 4x156 bolt pattern and +10 mm offset provides proper stance for many UTV and ATV platforms
- Simulated beadlock ring delivers aggressive off-road styling without the complexity of a true beadlock
- 8 split V-spoke design improves brake cooling and adds a modern, race-inspired look
- 60° conical seat lug interface helps ensure secure mounting and consistent torque retention
- Satin black finish pairs well with a wide range of vehicle colors and hides dirt from trail riding
- Front/rear compatible sizing simplifies wheel rotation and replacement on your machine
The Raceline Krank A94B-47056+10 is a 14x7 UTV and ATV wheel engineered to deliver strength, style, and consistent performance for riders who push their machines on trail, track, and dunes. With a 4x156 bolt pattern and +10 mm offset, this satin black wheel is a direct-fit upgrade for many popular off-road vehicles using this pattern.
Key Benefits
- Strong yet lightweight - Constructed from heavy duty A356 aluminum to handle harsh off-road impacts while keeping unsprung weight low for sharper steering response.
- Confident fit and stance - 14x7 size with 4x156 bolt pattern and +10 mm offset helps achieve a stable footprint and proper clearance on compatible UTV and ATV platforms.
- Aggressive beadlock-inspired style - Simulated beadlock ring and 8 split V-spoke design give your machine a race-ready look without the complexity of true beadlocks.
- Secure mounting - Designed for 60 degree conical seat lugs to help maintain proper torque and keep the wheel firmly seated under hard use.
- Durable satin black finish - Sleek black coating complements most vehicle color schemes and helps hide dust and mud between washes.
What's Included
- One Raceline Krank wheel, 14x7, 4x156 bolt pattern, +10 mm offset, satin black (MPN A94B-47056+10)
Specifications
- Brand: Raceline
- Model: Krank A94B
- Part Number (MPN): A94B-47056+10
- Wheel Size: 14 x 7 inches
- Wheel Diameter: 14 inches
- Wheel Width: 7 inches
- Bolt Pattern: 4 x 156 mm (4 x 6.14 inches)
- Offset: +10 mm
- Backspacing: 4.33 inches (approximate)
- Material: Heavy duty A356 aluminum
- Finish: Satin black
- Design: 8 split V-spoke with simulated beadlock ring
- Lug Seat: 60 degree conical
- Mounting Position: Front/Rear
- Load Rating: 1000 lbs (per wheel)
- Center Bore: 132.5 mm
- Center Cap: CPR-A82-156
- Weight: 15.9 lbs
Fitment
Direct-fit replacement for UTV and ATV applications using a 4x156 bolt pattern, 14x7 wheel size, and +10 mm offset. Always confirm bolt pattern, offset, load rating, and clearance on your specific vehicle before installation.
FAQ
FAQ
Is this wheel sold individually or as a set?
It is sold individually — one wheel. Order four to outfit a full machine.
Is this a true beadlock wheel?
No — it uses a simulated (non-functional) beadlock ring for an aggressive look without the added weight. The tire mounts conventionally to the rim.
What vehicles use this bolt pattern?
The 4/156 bolt pattern fits many Polaris RZR, RZR 4, and Ranger 4-lug UTVs. Confirm your machine's bolt pattern, hub bore, and offset clearance before ordering.
Specifications
Specifications
- material
- A356 aluminum
- finish
- Satin black
- size
- 14x7
- design
- 8 split V-spoke with simulated beadlock ring
- offset mm
- 10
- bolt pattern
- 4x156
- construction
- Heavy duty A356 cast aluminum
- beadlock type
- Simulated beadlock
- lug seat type
- 60 degree conical seat
- backspacing
- 4.33 in
- center bore mm
- 132.5
- wheel width
- 7 in
- center cap part
- CPR-A82-156
- load rating lbs
- 1000
- mounting position
- front/rear
