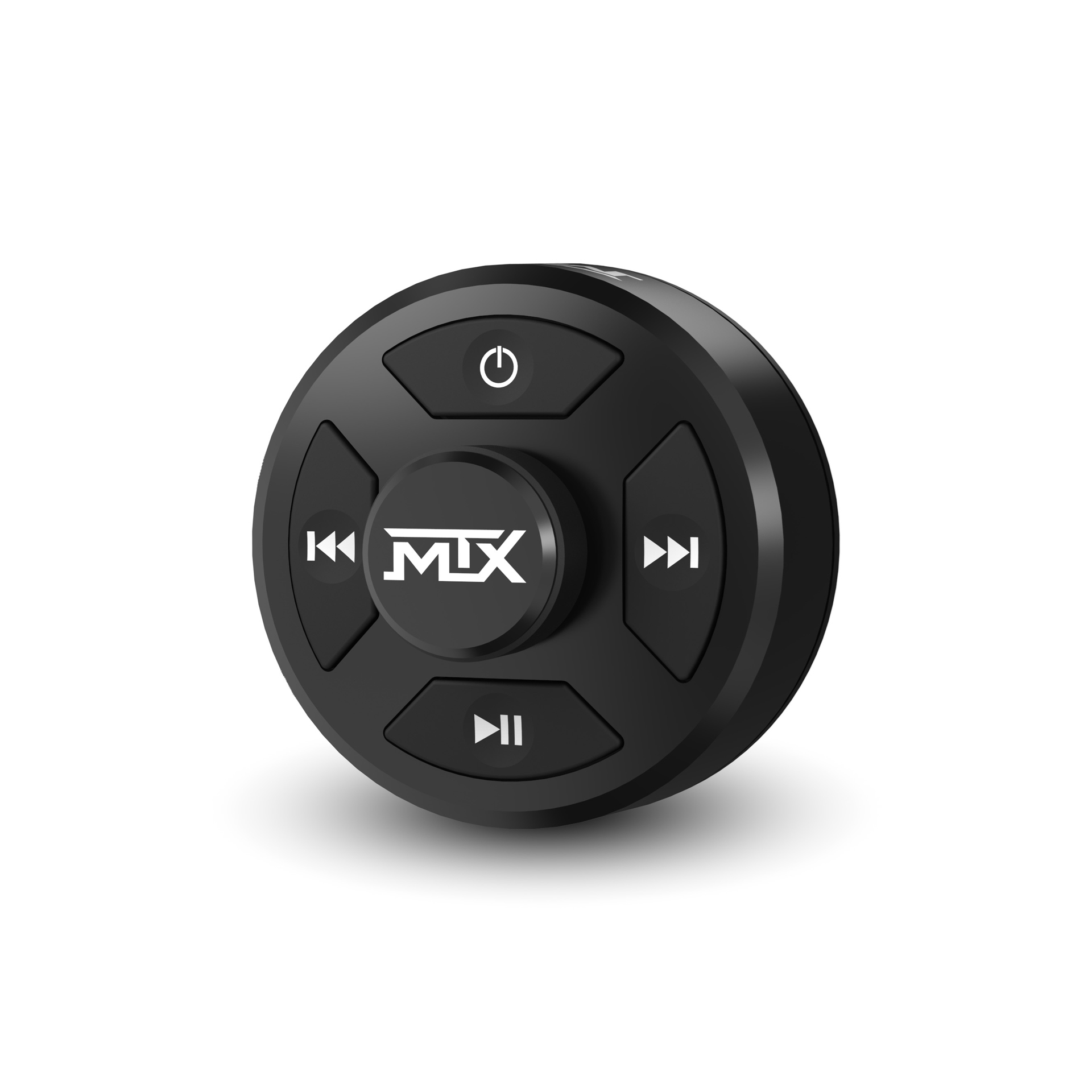

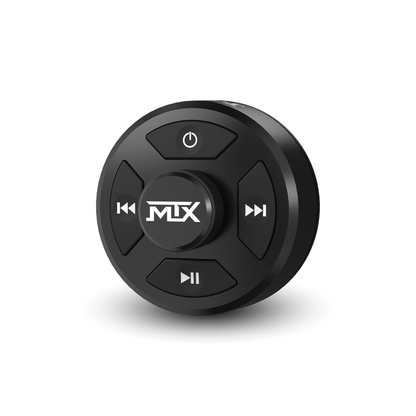

MTX AWBTC IP65 Universal Bluetooth Receiver and Remote Control

The MTX AWBTC is an IP65-rated all-weather Bluetooth receiver and remote control that replaces a head unit on a UTV, ATV, boat, car or truck, streaming audio from a phone or tablet and feeding an amplifier through two sets of 4-volt RCA preouts.

Key Benefits

• IP65 rated against water and dust, so it can be mounted on an open dash or a handlebar where a conventional head unit would not survive mud, rain and trail spray.
• Two sets of 4-volt RCA preouts — a high signal voltage that drives a long cable run to an amplifier cleanly, and two sets means a full-range amplifier and a subwoofer amplifier can be fed at once without a splitter.
• Replaces the head unit entirely rather than adding to one, and works with most aftermarket amplified systems.
• Automatically reconnects to the last paired device on power-up, so the phone stays in a pocket instead of being re-paired at every trailhead.
• Backlit front-panel buttons for playback and track control plus a rotary volume knob with integrated Bluetooth control, all sized to be worked with gloves on and visible at night.
• Three mounting options in the one part — surface, flush, or clamped to 7/8, 1 or 1-1/4 inch handlebars — so it suits a dash cutout, a flat panel or a bar equally.
• Compact 2.375 inch diameter and 1.438 inch depth, small enough to fit where a DIN chassis cannot.
• Backed by a 36 month MTX warranty from date of purchase.

Fitment

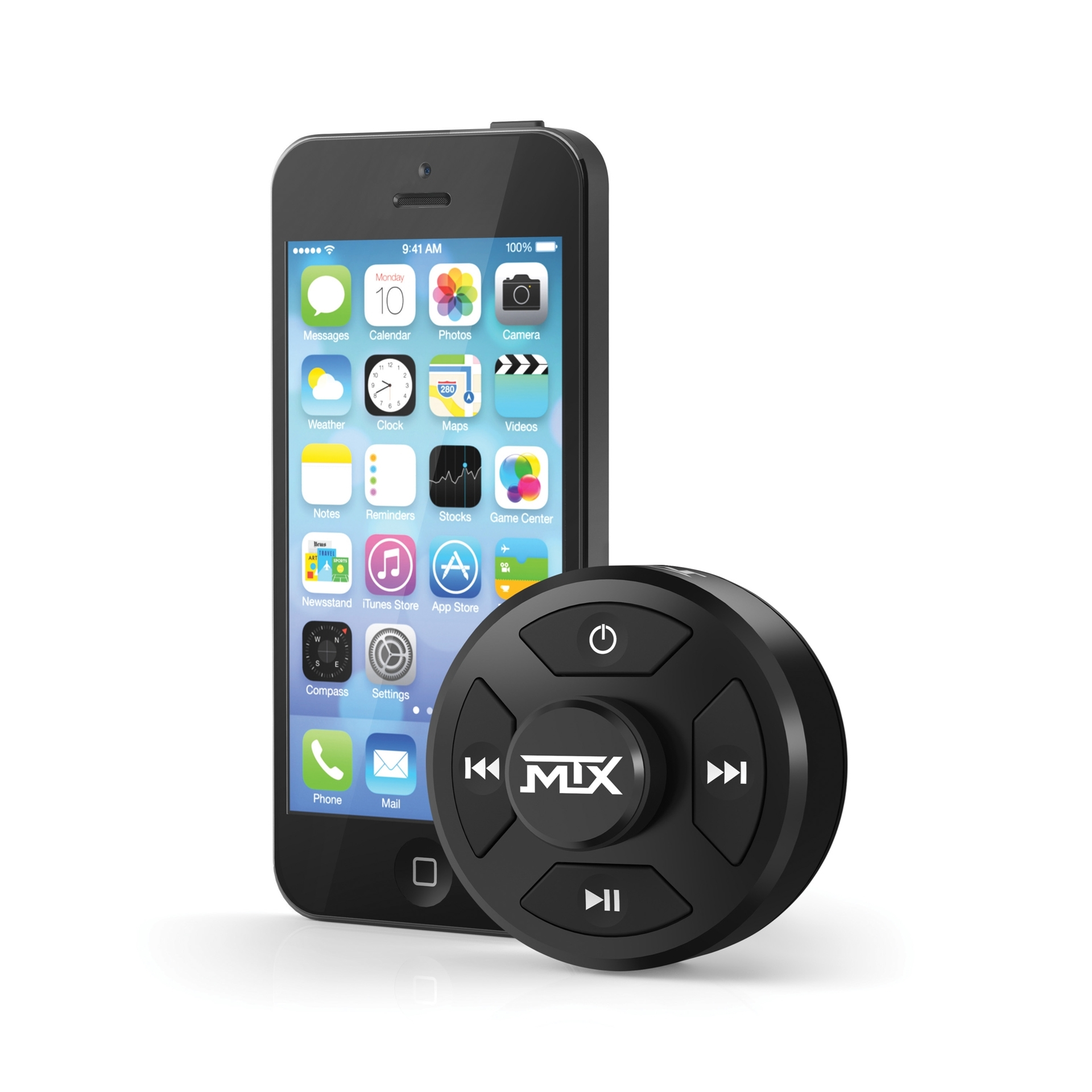

This is a universal product, not a vehicle-specific one. MTX lists it for boats, UTVs, ATVs, cars and trucks, and it pairs with most Bluetooth-enabled smartphones and tablets including iPhone and Android devices.

What decides fitment is the mounting location and the rest of the system. Surface and flush mounting need a flat area clearing a 2.375 inch diameter face and 1.438 inches of depth behind it; clamp mounting needs a 7/8, 1 or 1-1/4 inch bar. Wiring is power, ground and the RCA outputs.

Plan the system around the outputs. The AWBTC provides line-level RCA preouts rather than speaker-level outputs, so it is a source and controller for an amplified system — it works alongside an amplifier and speakers, or an amplified sound bar with an auxiliary input, rather than driving passive speakers on its own.
