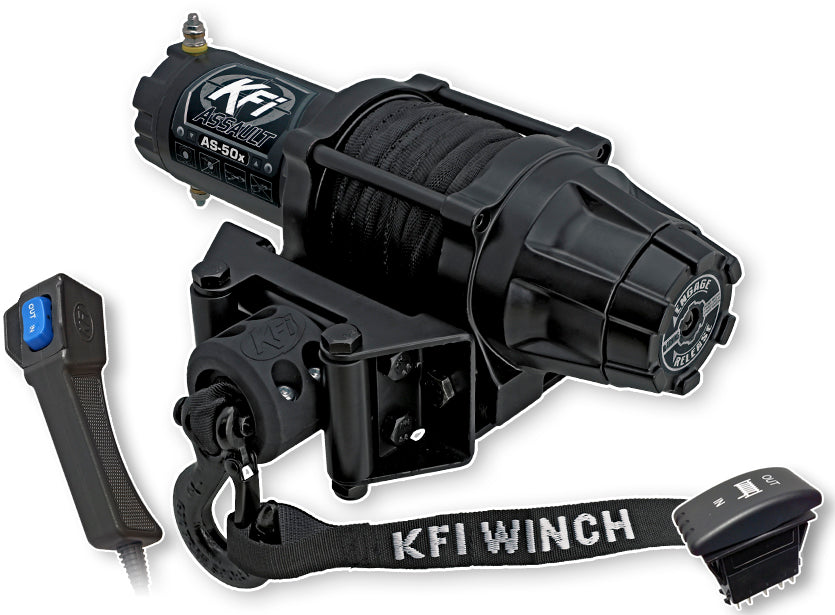

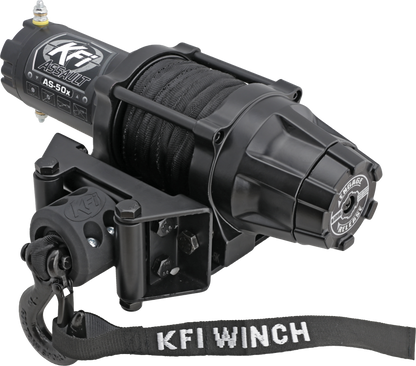

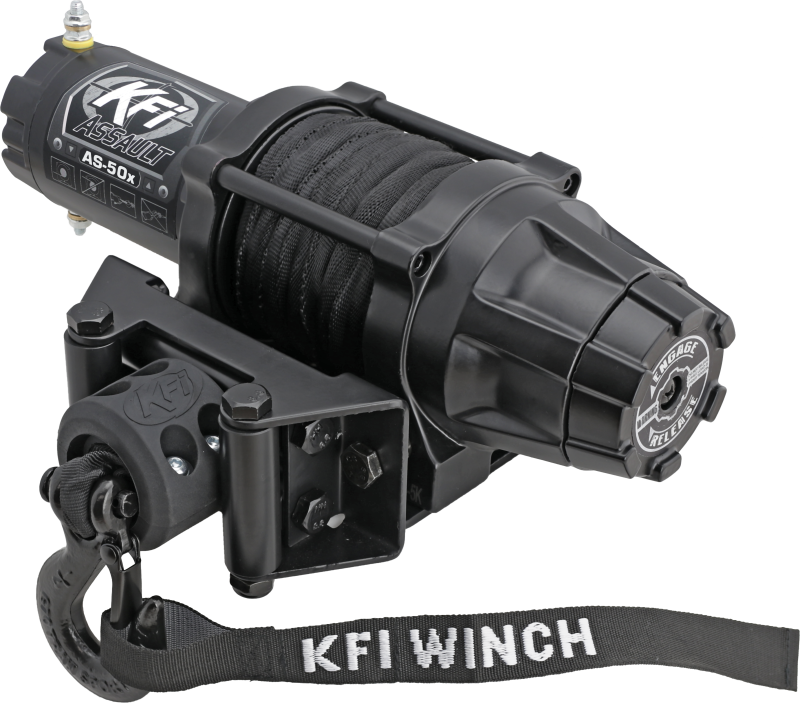

KFI Assault Series 5000 lb Synthetic Winch for ATV UTV

The KFI #AS-50X is an Assault Series 5,000 lb ATV/UTV winch with 15/64" x 38' synthetic rope with 5' protective sheath. It features a dynamic and mechanical braking system, water-resistant seals, a heavy-duty all-metal turn clutch and a multi-directional POM roller fairlead.

Fitment

Universal ATV/UTV winch using the standard 3.00" x 4.875" 4-hole mounting pattern. It requires a KFI (or compatible) winch mount for your machine, sold separately.

This is the standard-width version; for wider side-by-sides that need the 6.60" wide mount choose the AS-50WX instead.

Specifications

• Model: KFI #AS-50X (Assault Series)
• Rated line pull: 5,000 lb
• Cable: 15/64" x 38' synthetic rope with 5' protective sheath
• Motor: 12V DC 1.22 hp permanent magnet, 180:1 gear ratio
• Braking: dynamic and mechanical
• Fairlead: multi-directional POM roller
• Mounting: 3.00" x 4.875" standard 4-hole pattern
• Includes: 14' corded handheld remote, UTV dash rocker switch with blue LED, heavy-duty electric contactor, split cable hook stopper, mounting hardware and instructions

Frequently Asked Questions

Does this winch come with a mount?

No. KFI #AS-50X uses the standard 3.00" x 4.88" 4-hole pattern and needs a vehicle-specific KFI winch mount, sold separately.

Is the cable steel or synthetic?

15/64" x 38' synthetic rope with 5' protective sheath.

How is the AS-50X different from the AS-50WX?

The AS-50X uses the standard 3.00" x 4.875" 4-hole mount and 38' of synthetic rope. The AS-50WX has the same 5,000 lb rating but a wide 3.00" x 6.60" mount and 50' of rope for wider side-by-sides. Both are separate from the plug-and-play ASPR-50 built for the Polaris Ranger XP 1000.
