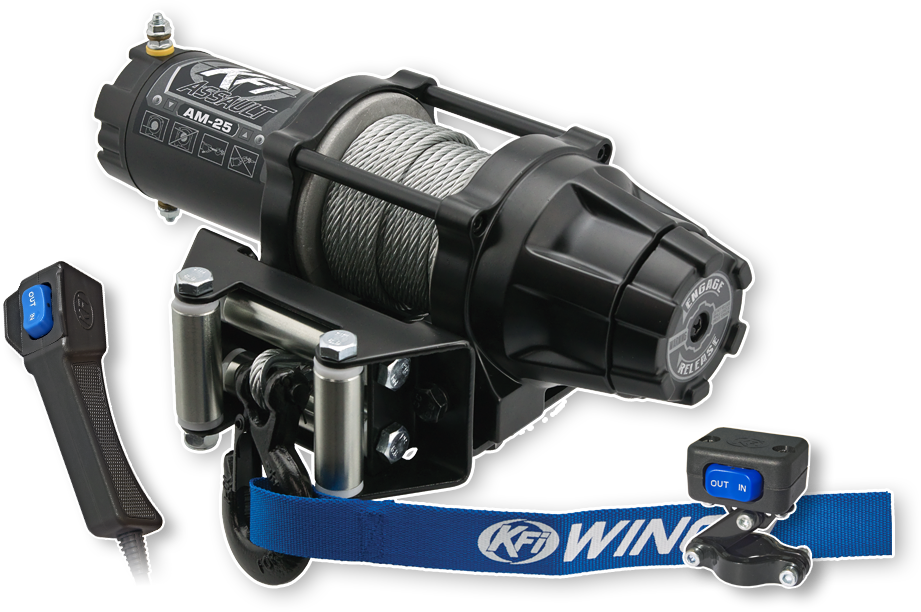

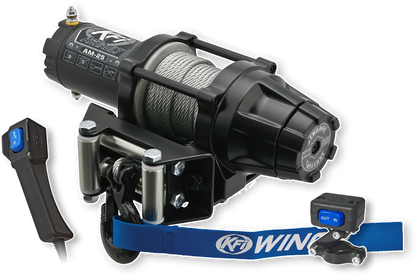

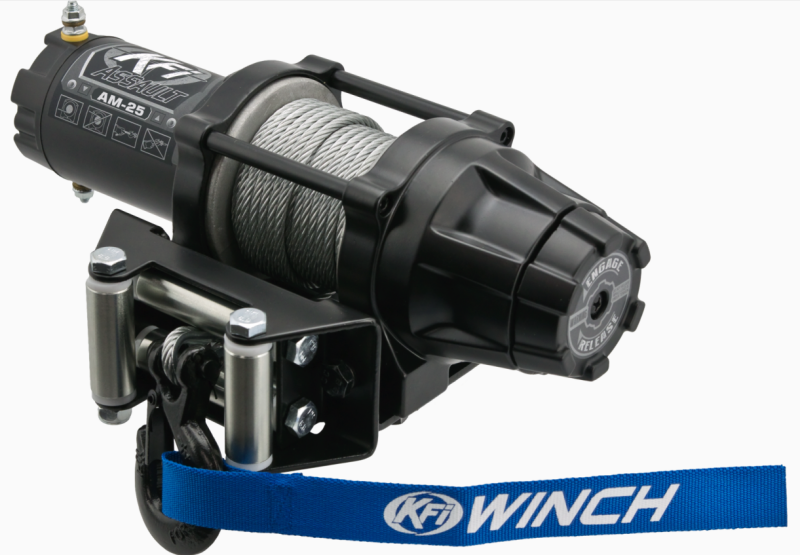

KFI Assault Series 2500 lb Steel Cable Winch
KFI Assault Series 2500 lb Steel Cable Winch
SKU:AM-25
In stock
- FREE shipping on this item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Assault Series 2,500 lb rated line pull
- 3/16" x 45.9' steel cable
- 12V DC 1.07 hp motor, 180:1 gear ratio
- Dynamic and mechanical braking, water-resistant seals
- Includes mini-rocker switch, contactor and hardware (mount sold separately)
The KFI #AM-25 is an Assault Series 2,500 lb ATV/UTV winch with 3/16" x 45.9' steel cable. It features a dynamic and mechanical braking system, water-resistant seals, a heavy-duty all-metal turn clutch and a multi-directional POM roller fairlead.
Fitment
Universal ATV/UTV winch. It uses the industry-standard 3.00" x 4.88" 4-hole mounting pattern and requires a KFI (or compatible) winch mount for your machine, sold separately.
This winch does not include a vehicle-specific mount. Order the KFI winch mount for your ATV or UTV to install it.
Specifications
- Model: KFI #AM-25 (Assault Series)
- Rated line pull: 2,500 lb
- Cable: 3/16" x 45.9' steel cable
- Motor: 12V DC 1.07 hp permanent magnet, 180:1 gear ratio
- Braking: dynamic and mechanical
- Fairlead: multi-directional POM roller
- Mounting: 3.00" x 4.88" 4-hole pattern
- Includes: mini-rocker handlebar switch with adjustable bracket, heavy-duty electric contactor, mounting hardware and instructions
FAQ
FAQ
Does this winch come with a mount?
No. KFI #AM-25 uses the standard 3.00" x 4.88" 4-hole pattern and needs a vehicle-specific KFI winch mount, sold separately.
Is the cable steel or synthetic?
3/16" x 45.9' steel cable.
How is the Assault Series lineup different?
Assault winches come in steel-cable (AM) and synthetic-rope (AS) versions at matching ratings: AM-25/AS-25 pull 2,500 lb and AM-35/AS-35 pull 3,500 lb. The 5,000 lb AS-50X (38' cable, standard mount) and AS-50WX (50' cable, wide mount) are the larger UTV models, and the ASPR-50 is a plug-and-play kit pre-built for the Polaris Ranger XP 1000.
Specifications
Specifications
- gear type
- All-metal planetary gear
- rope type
- steel
- motor type
- Permanent magnet
- capacity lbs
- 2500
- motor voltage
- 12V DC
- rope length ft
- 45.9
- motor horsepower
- 1.07
- rope diameter
- 0.1875 in
- rated line pull lbs
- 2500
- gear reduction ratio
- 180:1
- winch body length
- 13.5 in
- mounting hole quantity
- 4
- winch body diameter
- 4.44 in
- mounting pattern width
- 4.88 in
- mounting pattern length
- 3 in
