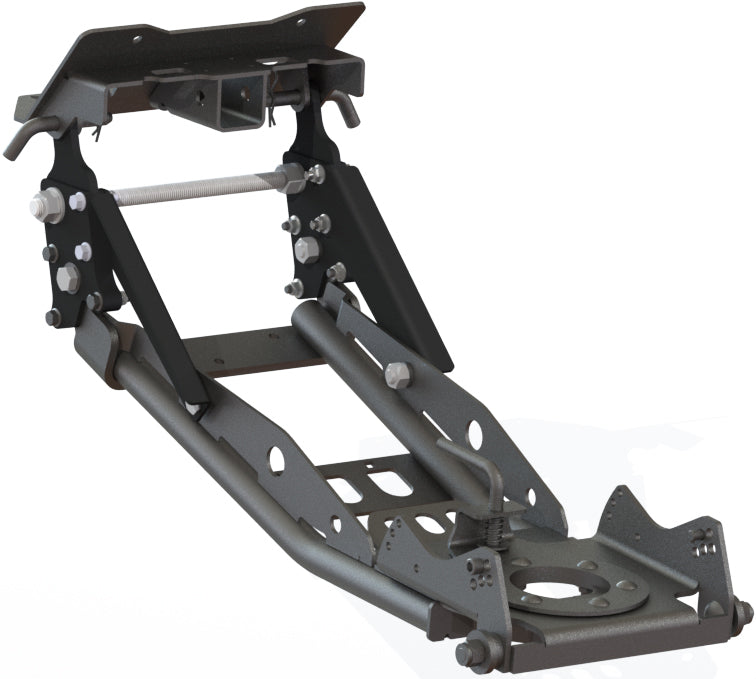

KFI 4" UTV Plow Lift Leveling Kit for Lifted UTVs (105635 Tube)

The KFI 105705 4" UTV plow lift kit is a heavy-duty tube leveling kit designed to bring your KFI UTV plow system back to level on lifted machines and UTVs running oversize tires. By raising the plow push tube attachment point, it restores the correct blade angle and improves plowing performance and control.

Key Benefits

• 4 inch lift for proper blade angle - Raises the push tube mounting point by 4 inches so your plow blade runs level on lifted UTVs and machines with larger tires.
• Improves plow performance - Correct blade leveling helps the cutting edge bite into snow and material more effectively, reducing uneven wear and chatter.
• Built for lifted UTVs - Specifically intended for machines with a plow pin height of about 14–16 inches, common on lifted and high-clearance setups.
• Durable Grade 50 steel construction - Made from strong alloy steel, shot blasted before coating and finished in a tough black powder coat for long-lasting corrosion resistance.
• Easy bolt-on integration - Designed to bolt onto existing KFI UTV plow systems using push tube 105635, keeping installation straightforward.

What's Included

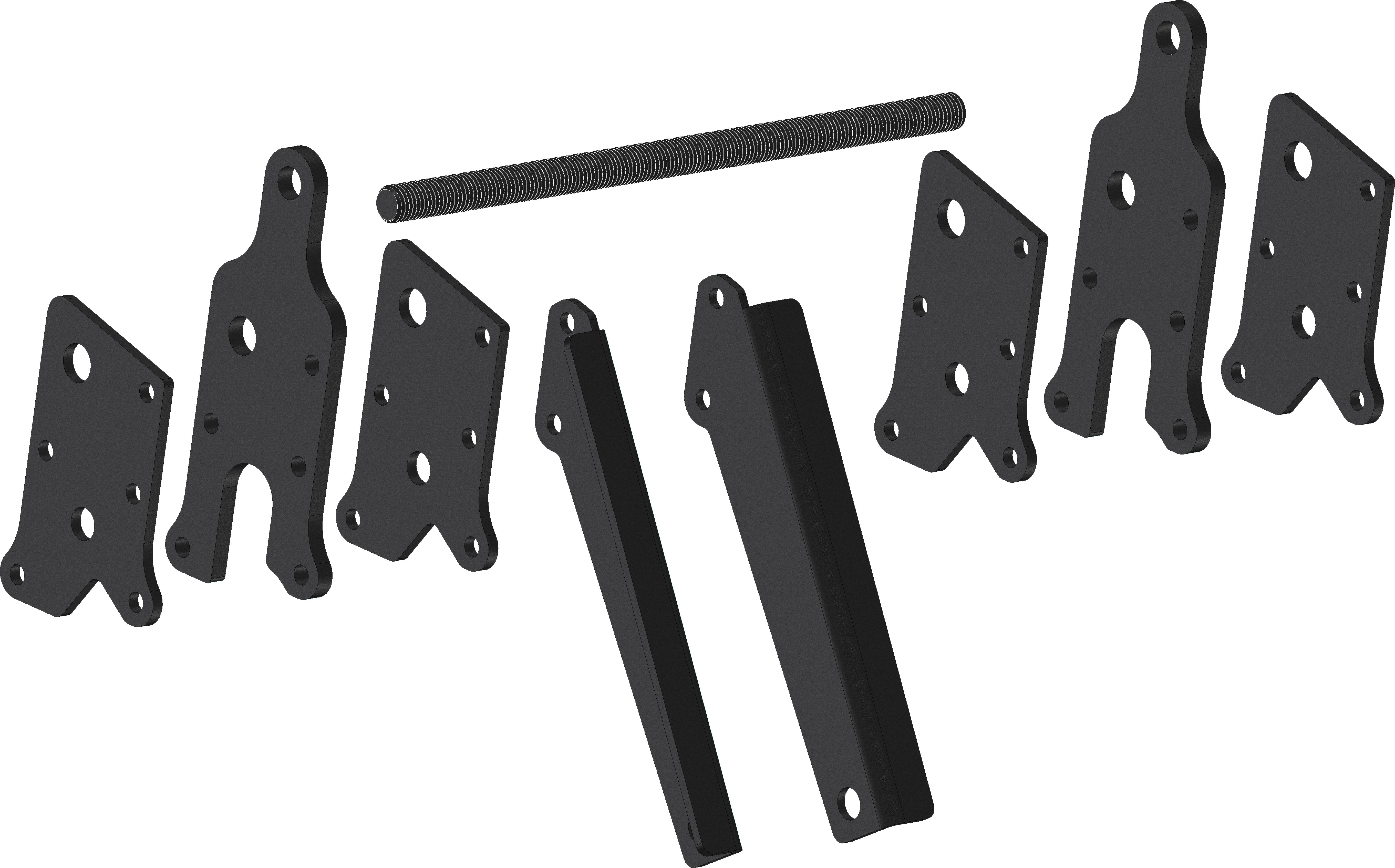

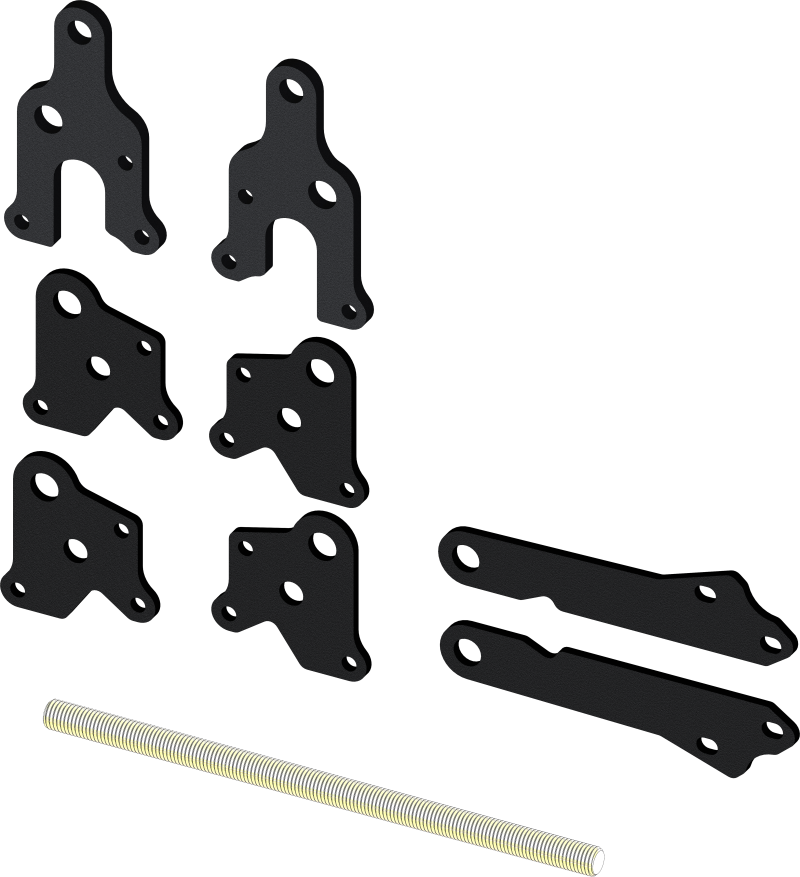

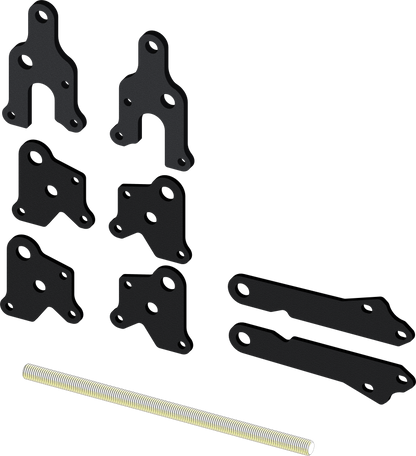

• KFI 105705 4" UTV plow lift / tube leveling kit assembly
• Bracketry and components as supplied by KFI for installation

Specifications

• Brand: KFI Products
• Part number: 105705
• Product type: UTV plow lift / tube leveling kit
• Lift height: 4 inches of plow tube lift
• Material: Alloy steel (Grade 50 steel construction)
• Finish: Shot blasted, black powder-coated
• Position: Front center plow mount
• Compatibility: Works with KFI UTV push tube 105635 (also referenced as 10-5635/33-08410 in some catalogs)
• Pin height range: For machines with plow mount pin height approximately 14–16 inches
• Weight: 13.2 lbs
• Dimensions (packaged): 16.0 in L x 5.0 in W x 5.0 in H
• Adjustable: No (fixed 4" lift)

Fitment

Direct-fit accessory for KFI UTV plow systems using the specified push tube. This kit is designed for:

• Most lifted UTVs with a KFI UTV front-mounted plow system and push tube 105635, where the plow mount pin height is approximately 14–16 inches (front center plow position).

This 4" tube leveling kit will work universally on most lifted UTVs equipped with the KFI UTV push tube 105635 and will not work with the older KFI UTV tube 105235.
