ICON Stage 3 CDCV Suspension System for 2022-2023 Toyota Land Cruiser

Name: ICON Stage 3 CDCV Suspension System for 2022-2023 Toyota Land Cruiser
Brand: ICON
SKU: K53263
Price: 5456.52 USD
Availability: InStock

ICON Stage 3 CDCV Suspension System for 2022-2023 Toyota Land Cruiser

$5,456.52 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53263

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 3 system: front coilovers, rear shocks, and billet upper control arms in one bolt-on package
1-3 inches of front lift to fit aggressive wheel and tire setups up to 35 inches
VS 2.5 Series remote-reservoir coilovers for maximum travel and heat dissipation
10-level externally adjustable CDC Valves let you dial in compression damping
Billet aluminum upper control arms with Delta Joint PRO correct geometry and add camber/caster adjustment
No cutting or welding required for a true bolt-on install
Fully rebuildable and revalveable for long-term serviceability

The ICON Vehicle Dynamics K53263 Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2022-2023 Toyota Land Cruiser 300 Series, providing 1 to 3 inches of adjustable front lift and clearing up to a 35-inch tire. It uses CDCV valving with 10 external settings of manual compression damping adjustment with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Provides 1-3 inches of front lift to clear larger wheel and tire packages up to 35 inches
VS 2.5 Series remote-reservoir front coilovers deliver maximum travel and superior damping control
CDC Valves offer 10 externally adjustable levels of compression damping to tune ride feel on demand
Billet aluminum upper control arms with Delta Joint PRO correct front-end geometry and add camber and caster adjustment
Bolt-on design requires no cutting or welding for a straightforward installation
Fully rebuildable and revalveable shocks protect your investment for the long haul

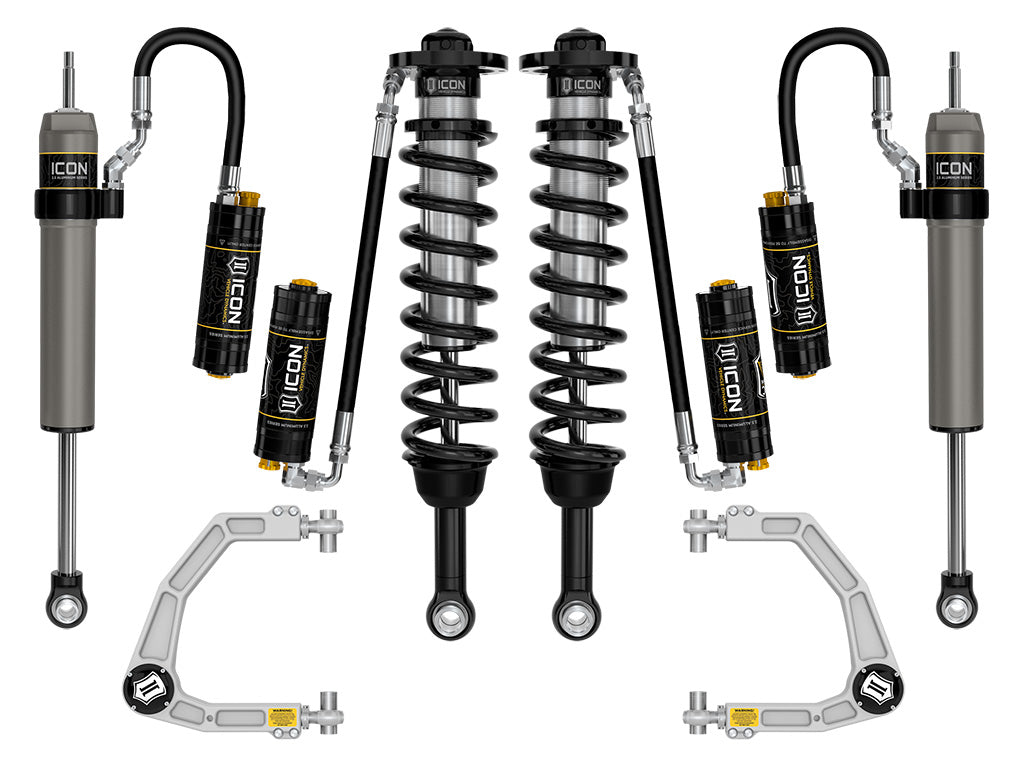

What's Included

VS 2.5 Series remote-reservoir front coilovers with ICON-engineered springs

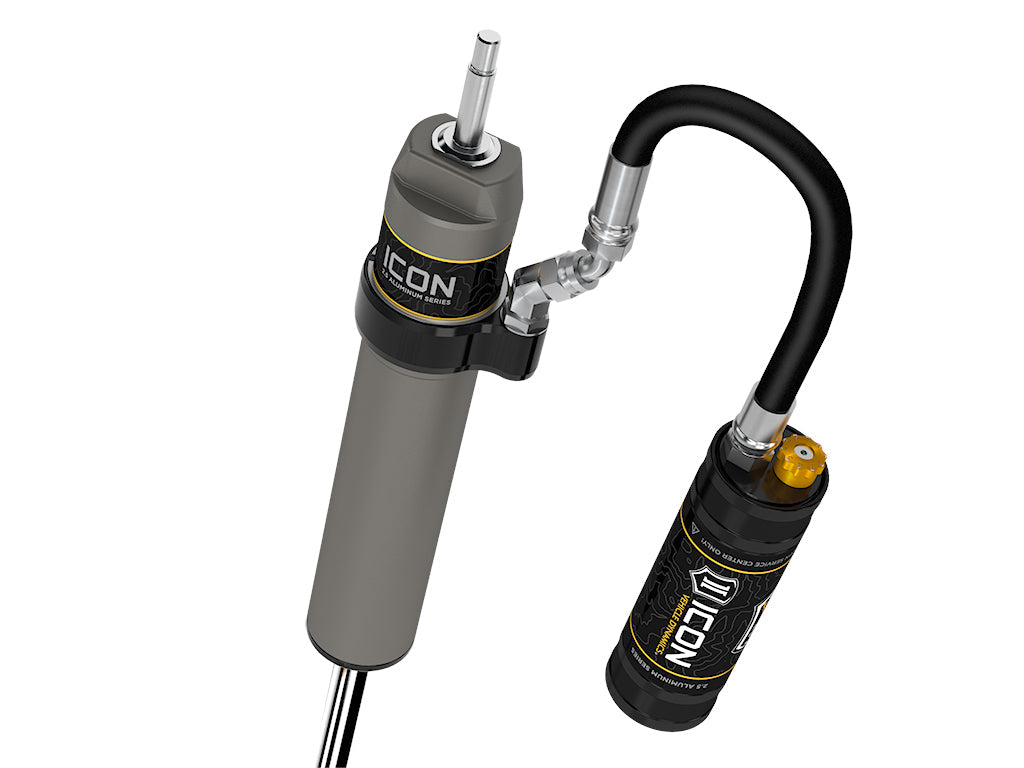

2.5 Aluminum Series remote-reservoir rear shocks

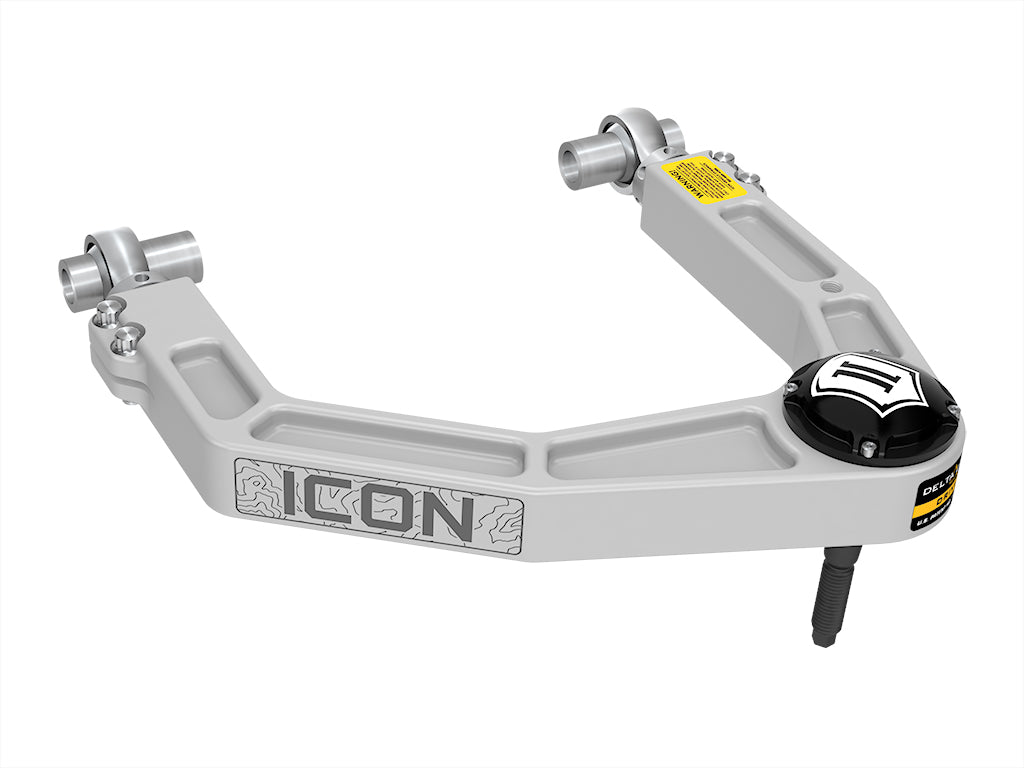

Billet aluminum upper control arm kit with integrated Delta Joint PRO
CDC Valves (manual external adjusters) on front and rear

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53263
System: Stage 3 Suspension System, Billet
Front lift: 1-3 inches adjustable over stock
Rear lift: 0-2 inches over stock
Valve type: CDCV (manually adjustable CDC Valves, 10 compression levels)
Shock body: 2.5 inch, remote reservoir, rebuildable and revalveable
Recommended max tire: 35 x 12.50 (larger may require fender trimming)

Fitment

Engineered specifically for the 2022-2023 Toyota Land Cruiser 300 Series. NOT compatible with vehicles equipped with the factory load-leveling rear height control air suspension.

2022-2023 Toyota Land Cruiser 300 Series (front and rear)

FAQ

Will the ICON K53263 fit a Land Cruiser with factory air suspension?

No. It is built for the 2022-2023 Toyota Land Cruiser 300 Series and is not compatible with the factory load-leveling rear height-control air suspension.

How much lift does the ICON K53263 provide, and is the damping adjustable?

It provides 1 to 3 inches of adjustable front lift and up to 2 inches of rear lift, clearing up to a 35-inch tire. The 2.5 Series remote-reservoir front coilovers and 2.5 Aluminum Series rear shocks are equipped with CDC Valves for 10 settings of external compression damping adjustment.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

This complete billet system pairs remote-reservoir front coilovers and 2.5 Aluminum Series remote-reservoir rear shocks (both with 10-setting CDC Valves) with billet aluminum upper control arms and the Delta Joint PRO.
