ICON Stage 7 CDCV Suspension System for 03-09 Lexus GX470

Name: ICON Stage 7 CDCV Suspension System for 03-09 Lexus GX470
Brand: ICON
SKU: K53177T
Price: 6338.87 USD
Availability: InStock

$6,338.87 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53177T

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 0-3.5 inch lift to clear larger wheel and tire packages
2.5 series extended-travel coilovers with remote reservoirs run cooler under hard use
CDCV manual compression adjustment dials in ride quality without tools
Tubular Delta Joint upper control arms deliver high-angle durability over factory UCAs
Rear coil-spring conversion permanently eliminates the troublesome factory air bags
Adjustable trailing links and track bar correct pinion angle and rear geometry
Complete bolt-on front and rear system with no cutting or welding

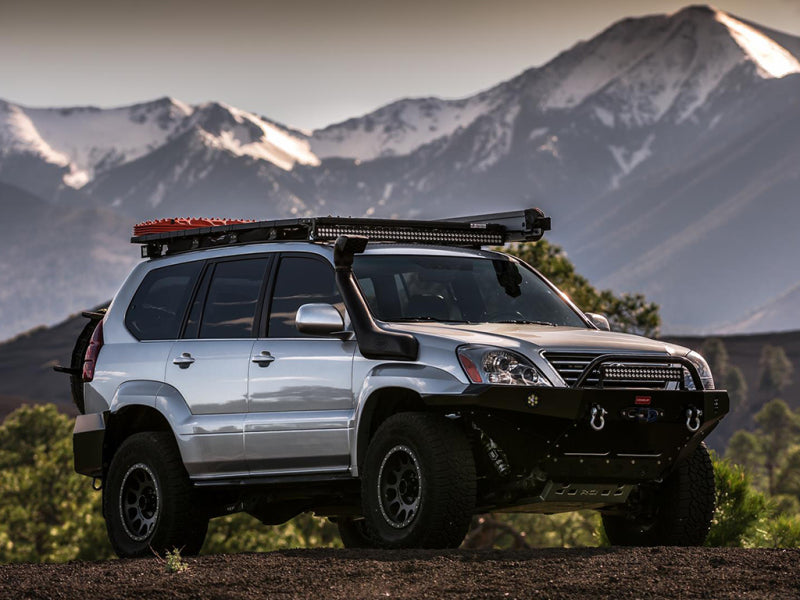

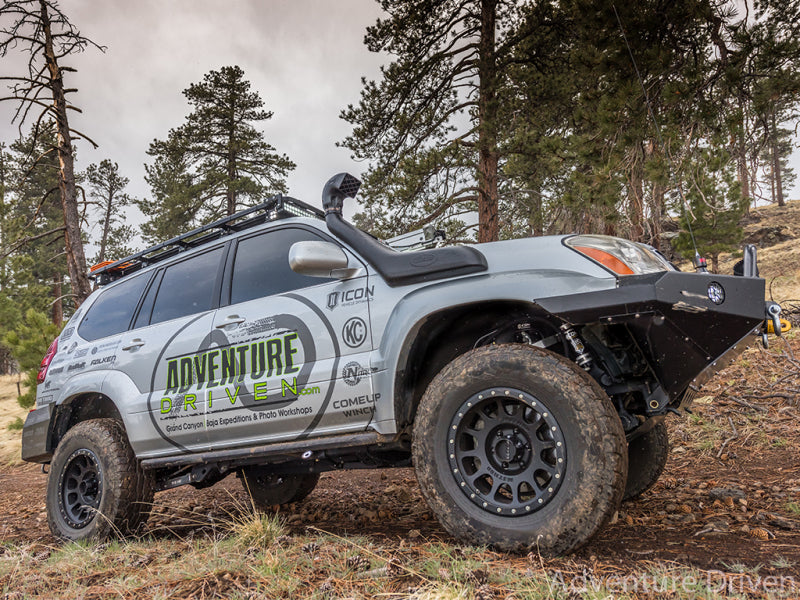

The ICON K53177T Stage 7 Suspension System is a complete bolt-on kit for the 2003-2009 Lexus GX470, delivering 0-3.5 inches of front lift with CDC-adjustable 2.5 Series coilovers and rear shocks, tubular Delta Joint upper control arms, tubular rear links, an adjustable track bar, and a rear coil-conversion that replaces the factory air ride.

Key Benefits

Adjustable 0-3.5 inch lift to fit larger wheels and tires
2.5 series extended-travel coilovers with remote reservoirs for superior heat dissipation
CDCV (Compression Damping Control Valve) lets you fine-tune ride quality by hand, no tools required
Tubular steel upper control arms with patented Delta Joint for high-angle articulation and durability
Rear coil-spring conversion eliminates the failure-prone factory air bags
True bolt-on install with no cutting or welding

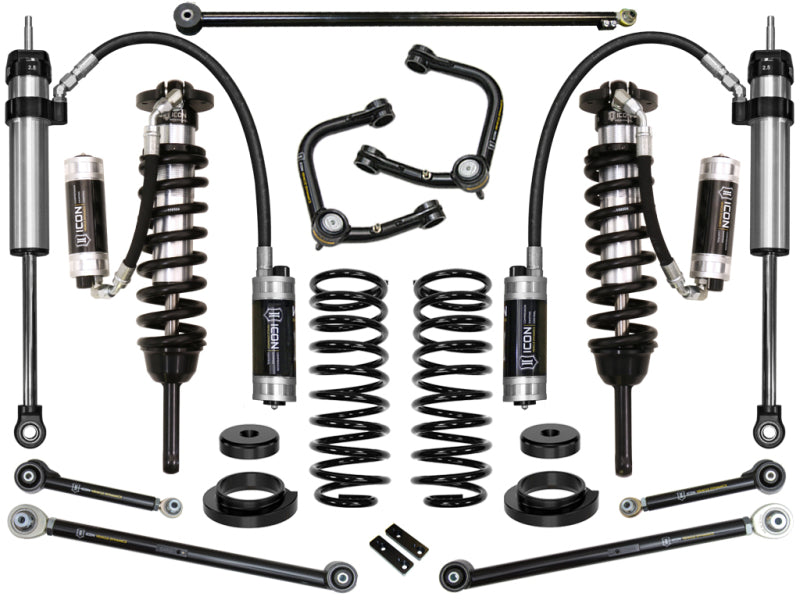

What's Included

Front 2.5 series CDCV coilover shocks with remote reservoirs
Tubular steel front upper control arms with ICON Delta Joint
Rear 2.5 Aluminum Series remote-reservoir shocks with CDC valving
Tubular steel rear upper and lower trailing links
Adjustable rear track bar
Rear coil-spring conversion kit (replaces factory air bags) with 2 inch lift springs

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53177T
System: Stage 7 complete front and rear suspension
Lift Range: 0-3.5 inches (adjustable)
Front Coilover: 2.5 series, extended travel, remote reservoir
Valve Type: CDCV manual compression damping control
Front UCA: Tubular steel with Delta Joint
Install: Bolt-on, no cutting or welding

Fitment

Direct-fit for the 2003-2009 Lexus GX470. This is a complete standalone system; no additional lift components are required.

2003-2009 Lexus GX470 (front and rear)

FAQ

Are the ICON K53177T shocks adjustable?

Yes. Stage 7 (K53177T) uses ICON CDC (Compression Damping Control) valving front and rear for by-hand compression tuning with no tools. The lower GX470 stages use non-adjustable vehicle-specific valving.

Does the ICON K53177T replace the GX470 factory air suspension?

Yes. It includes a rear coil-conversion kit that permanently replaces the factory rear air ride, plus tubular Delta Joint upper control arms, tubular rear links, and an adjustable track bar.

What vehicle does the ICON K53177T fit?

It is a complete standalone system for the 2003-2009 Lexus GX470 and requires no additional lift components.
