ICON Stage 5 Suspension System for 03-09 Lexus GX470 0-3.5in

Name: ICON Stage 5 Suspension System for 03-09 Lexus GX470 0-3.5in
Brand: ICON
SKU: K53175T
Price: 4194.65 USD
Availability: InStock

$4,194.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53175T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inch adjustable front lift for larger tire and wheel fitment
2.5 Series remote-reservoir shocks resist fade on extended off-road runs
Tubular Delta Joint upper control arms restore geometry and add durability
Rear coil conversion permanently eliminates failure-prone factory air bags
Bump Zone technology prevents harsh bottom-out over rough terrain
Vehicle-specific rear valving balances ride quality front to rear
Complete bolt-on system requires no cutting or welding

The ICON K53175T Stage 5 Suspension System is a complete bolt-on kit for the 2003-2009 Lexus GX470, delivering 0-3.5 inches of front lift with 2.5 Series remote-reservoir coilovers, tubular steel Delta Joint upper control arms, tubular rear links, and a rear coil-conversion that replaces the factory air ride.

Key Benefits

Height-adjustable 0-3.5 inch front lift to dial in your stance and clear bigger tires
2.5 Series remote-reservoir shocks add oil volume and cooling to resist fade on long off-road days
Tubular Delta Joint upper control arms restore correct geometry and add high-angle articulation and durability
Rear coil conversion eliminates the factory air bags for reliable, maintenance-free ride height
Bump Zone technology firms up the last 2 inches of compression to prevent harsh bottom-out
True bolt-on installation with no cutting or welding required

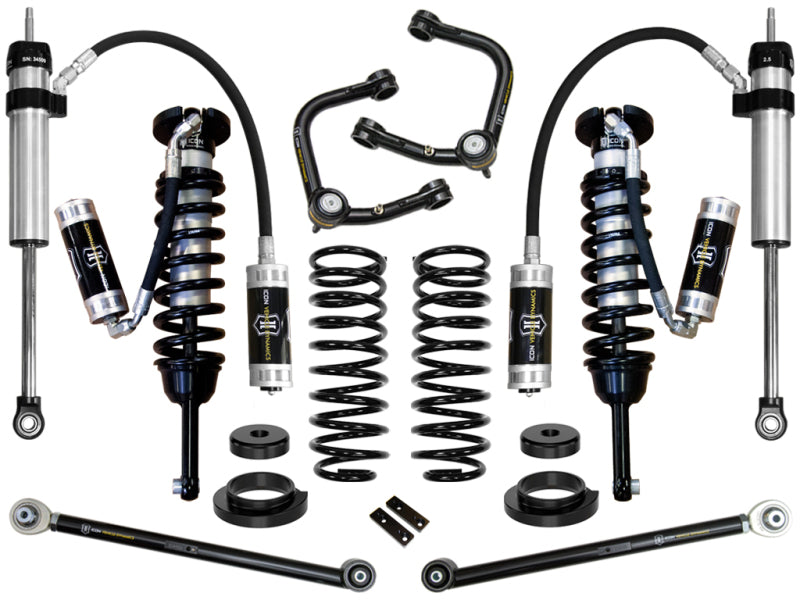

What's Included

Extended-travel 2.5 Series remote-reservoir front coilovers (0-3.5 inch adjustable)
Tubular steel Delta Joint upper control arm kit
2 inch rear lift coil springs with factory air-bag delete conversion
2.5 Series Aluminum remote-reservoir rear shocks with vehicle-specific valving
Tubular steel rear lower link arm kit

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53175T
System: Stage 5
Front Lift: 0-3.5 inches adjustable
Rear Lift: 2 inches
Front Shock: 2.5 Series extended-travel coilover, remote reservoir
Rear Shock: 2.5 Series Aluminum, remote reservoir, Bump Zone
Upper Control Arms: Tubular steel with Delta Joint
Adjustment: Manual coilover preload (spanner wrench sold separately)

Fitment

Engineered specifically for the second-generation Lexus GX470. Confirmed fitment for this exact part number:

2003-2009 Lexus GX470

FAQ

What is the difference between K53175T and K53175?

Both are Stage 5 systems for the 2003-2009 GX470. K53175T uses tubular steel Delta Joint upper control arms and tubular rear links; K53175 uses billet aluminum arms and billet rear links.

Does the ICON K53175T replace the GX470 factory air suspension?

Yes. It includes a rear coil-conversion kit that permanently replaces the factory rear air ride for a maintenance-free ride height.

Are the ICON K53175T shocks adjustable?

No. Stage 5 uses non-adjustable vehicle-specific valving. The Stage 7 K53177T adds CDC compression adjustment front and rear.
