ICON Stage 5 Billet UCA Suspension System for 03-09 Lexus GX470

Name: ICON Stage 5 Billet UCA Suspension System for 03-09 Lexus GX470
Brand: ICON
SKU: K53175
Price: 5115.7 USD
Availability: InStock

$5,115.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53175

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Front coilovers adjust from 0 to 3.5 inches of lift to fit larger tire and wheel setups
Eliminates the unreliable factory rear air suspension with a durable coil conversion kit
2.5 Series remote-reservoir shocks dissipate heat for fade-free off-road performance
Billet aluminum Delta Joint upper control arms restore alignment and add high-angle strength
Complete front-to-rear matched system tuned with vehicle-specific valving
Bolt-on installation requires no cutting or welding
KDSS compatible (requires rear track bar 54200 on KDSS vehicles)

The ICON K53175 Stage 5 Suspension System is a complete bolt-on kit for the 2003-2009 Lexus GX470, delivering 0-3.5 inches of front lift with 2.5 Series remote-reservoir coilovers, billet aluminum Delta Joint upper control arms, billet rear links, and a rear coil-conversion that replaces the factory air ride.

Key Benefits

Height-adjustable front coilovers dial in 0-3.5 inches of lift to clear larger wheel and tire packages
Deletes the failure-prone factory rear air suspension with a robust coil-over conversion
Extended-travel 2.5 inch shocks with remote reservoirs resist heat fade on long off-road runs
Billet aluminum Delta Joint upper control arms restore correct geometry and add high-angle durability
True bolt-on installation with no cutting or welding required

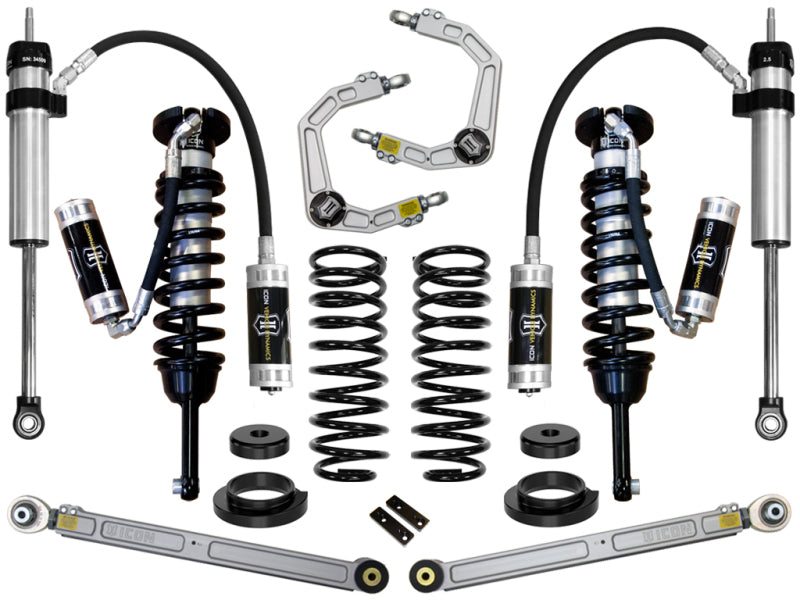

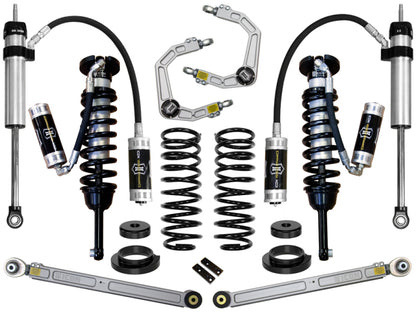

What's Included

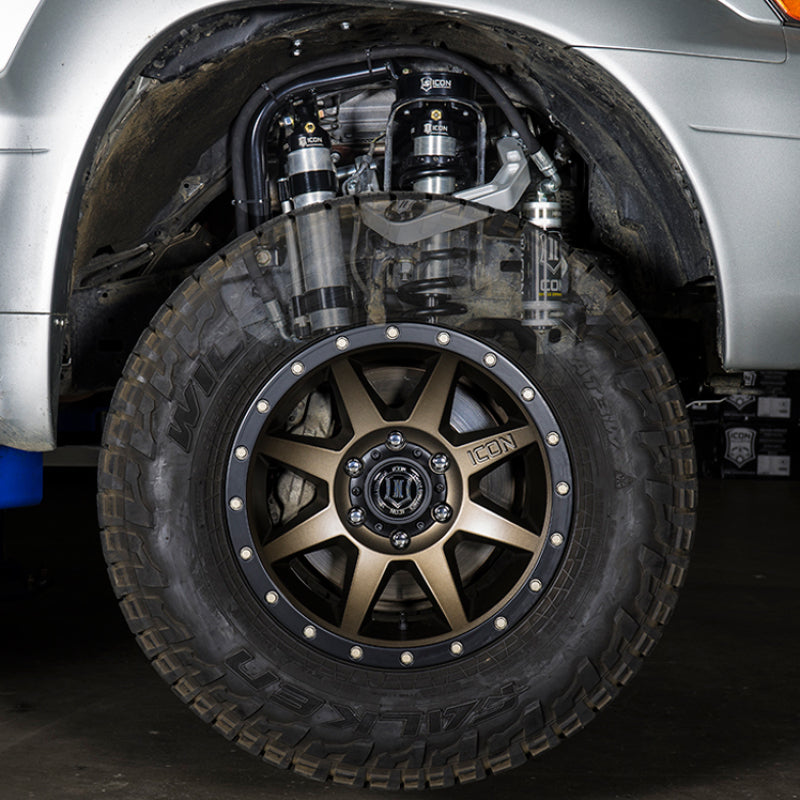

Adjustable front coilovers with remote reservoirs (extended-travel 2.5 inch shocks, 7/8 inch shafts)
Billet aluminum Delta Joint upper control arms
2.5 Aluminum Series remote-reservoir rear shocks (7/8 inch shafts)
2 inch lift rear coil springs and rear coil conversion kit to eliminate the factory air system
Billet rear lower links
Mounting hardware

Specifications

Front lift: 0-3.5 inches (adjustable)
Rear lift: 2 inches
Shock body: 2.5 inch diameter, remote reservoir, 7/8 inch shafts
Upper control arm: billet aluminum with patented Delta Joint
Drivetrain: 4WD
Installation: bolt-on, no cutting or welding
Recommended tire: up to 33 x 11.50 (larger may require trimming)

Fitment

Direct fit for the 2003-2009 Lexus GX470. KDSS-equipped vehicles require ICON rear track bar 54200 (sold separately); front sway bar relocation brackets are not used on KDSS vehicles. A 700 lb front coil spring is available for vehicles carrying heavier front-end equipment. This is the billet upper control arm version (K53175); a tubular UCA version is offered separately as K53175T.

2003-2009 Lexus GX470

FAQ

What is the difference between K53175 and K53175T?

Both are Stage 5 systems for the 2003-2009 GX470. K53175 uses billet aluminum Delta Joint upper control arms and billet rear links; K53175T uses tubular steel Delta Joint arms and tubular rear links.

Does the ICON K53175 replace the GX470 factory air suspension?

Yes. It includes a rear coil-conversion kit that permanently replaces the factory rear air ride for a maintenance-free ride height.

Are the ICON K53175 shocks adjustable?

No. Stage 5 uses non-adjustable vehicle-specific valving. The Stage 7 K53177T adds CDC compression adjustment front and rear.
