ICON Stage 4 Suspension System for 03-09 Lexus GX470

Transform your 2003-2009 Lexus GX470 with the ICON K53174T Stage 4 Suspension System, ICON's most complete bolt-on lift package for the GX platform. It delivers up to 3.5 inches of height-adjustable lift, dramatically increased wheel travel, and a controlled ride that performs on the highway and the trail alike.

Key Benefits

• Height-adjustable 0-3.5in lift dials in your stance and clears larger tires up to 33x11.50
• Extended-travel 2.5 front coilovers with internal reservoirs resist fade and soak up rough terrain
• Tubular steel upper control arms with the patented ICON Delta Joint correct geometry and add high-angle durability
• Rear coil conversion kit permanently eliminates the failure-prone factory air suspension
• Adjustable tubular rear lower links set proper pinion angle and roll-steer geometry
• Complete bolt-on system requires no cutting or welding

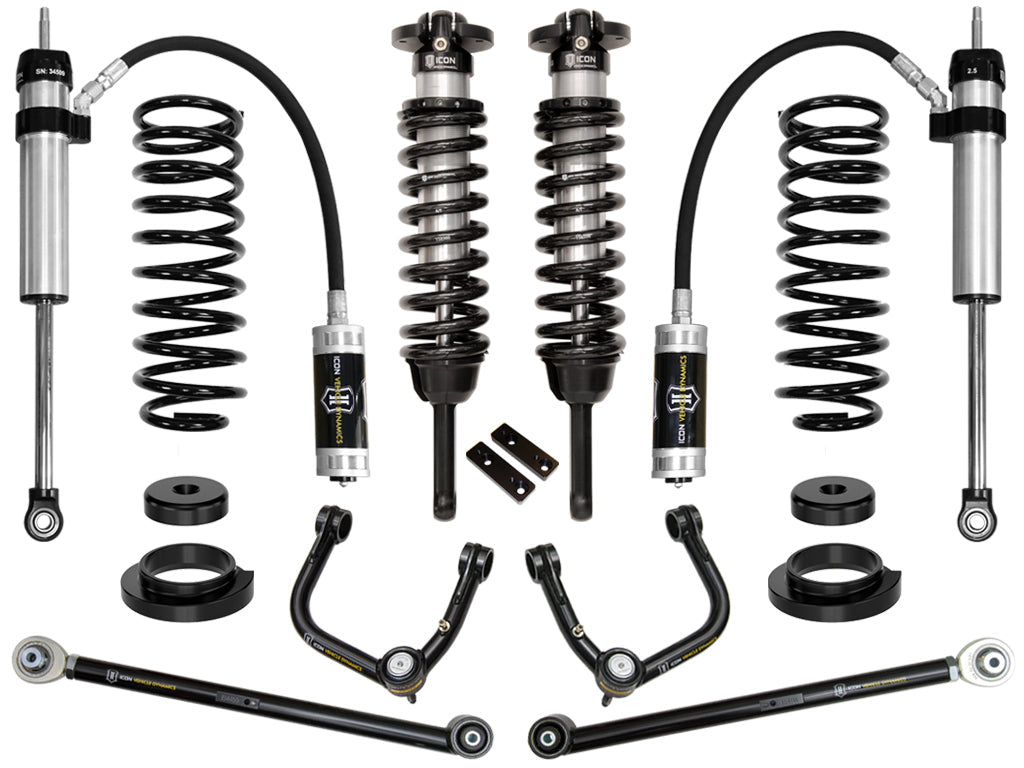

What's Included

• Front extended-travel 2.5 VS internal-reservoir coilover kit (58645)
• Tubular Delta Joint upper control arm kit (58451DJ)
• Tubular rear lower trailing arm kit (54000T)
• Rear 2in lift spring kit (52700)
• GX460/GX470 rear coil conversion kit (56110)
• Rear 2.5 VS remote-reservoir shock pair (57810P)

Specifications

• Lift range: 0-3.5in adjustable (front)
• Front shock: 2.5 series velocity-sensitive coilover, internal reservoir
• Rear shock: 2.5 series velocity-sensitive, remote reservoir, 7/8in shaft
• Upper control arms: tubular steel, ICON Delta Joint
• Rear: coil-spring conversion (replaces factory air bags)
• Recommended tire: 33x11.50
• Install: bolt-on, no cutting or welding

Fitment

Engineered specifically for and fits only the 2003-2009 Lexus GX470. The included rear coil conversion kit replaces the factory air suspension on this platform.

• 2003-2009 Lexus GX470
