ICON Stage 3 0-3.5in Suspension System for 03-09 Lexus GX470

Name: ICON Stage 3 0-3.5in Suspension System for 03-09 Lexus GX470
Brand: ICON
SKU: K53173
Price: 4039.65 USD
Availability: InStock

$4,039.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53173

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 2.5 front coilovers provide 0-3.5 inches of lift to fit larger tires
Billet aluminum Delta Joint upper control arms add strength and correct suspension geometry
Rear coil-conversion kit eliminates the unreliable factory air ride system
Vehicle-specific valving balances ride quality from front to rear
Adjustable billet rear lower links set proper pinion angle and roll-steer geometry
Complete Stage 3 front and rear package for a finished lift in one box
True bolt-on install with no cutting or welding required

The ICON K53173 Stage 3 Suspension System is a complete bolt-on kit for the 2003-2009 Lexus GX470, delivering 0-3.5 inches of front lift with 2.5 Series front coilovers, billet aluminum Delta Joint upper control arms, and a rear coil-conversion package that replaces the factory air ride.

Key Benefits

Height-adjustable front coilovers dial in 0-3.5 inches of lift to clear larger wheels and tires
Billet aluminum Delta Joint upper control arms restore proper geometry and add high-angle durability
Included rear coil-conversion kit permanently eliminates the failure-prone factory air ride system
Vehicle-specific front-to-rear valving balances comfort and control on pavement and trail
Bolt-on installation requires no cutting or welding

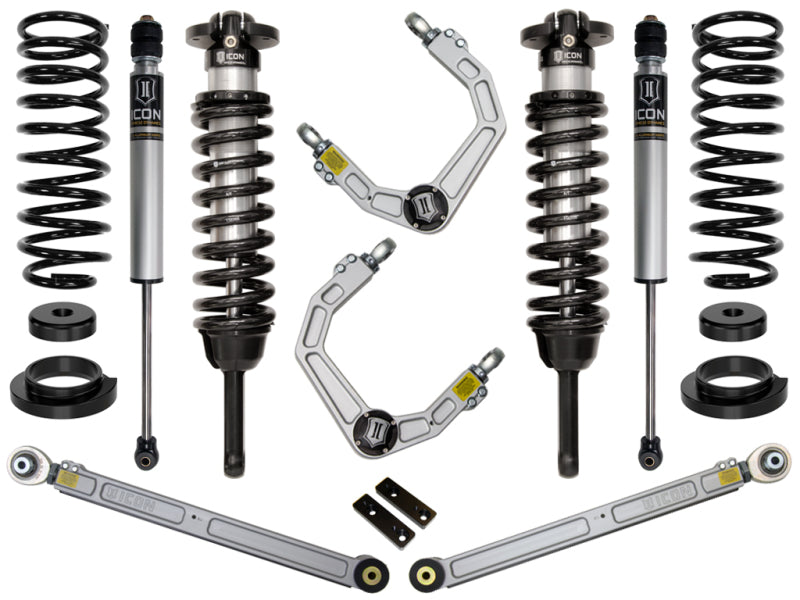

What's Included

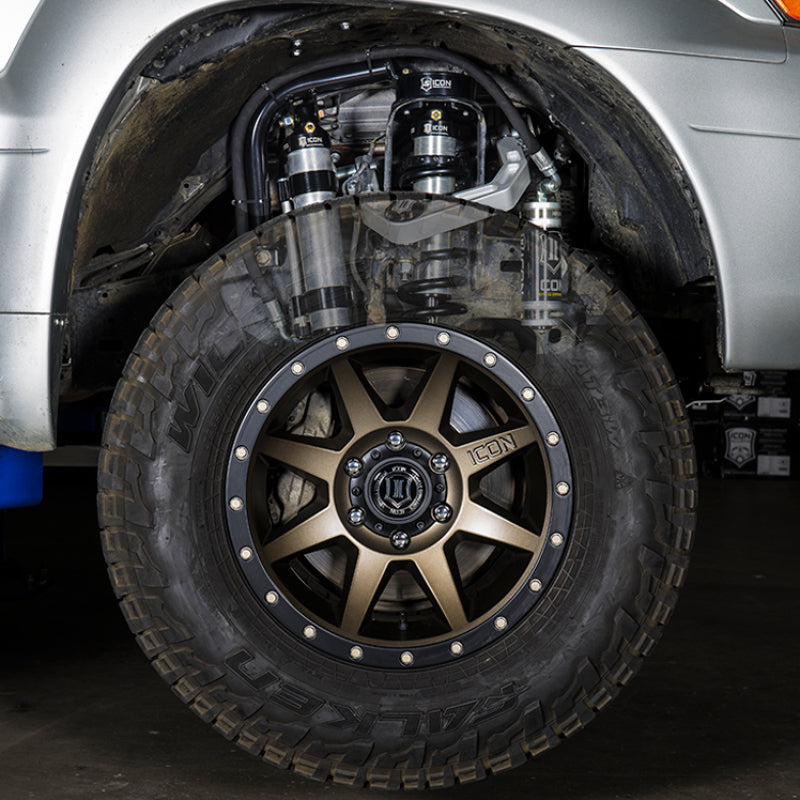

Pair of 2.5 extended-travel front coilover shocks with internal reservoirs (height-adjustable 0-3.5 in)
Billet aluminum Delta Joint upper control arms (pair)
2-inch lift rear coil springs (air-to-coil conversion)
2.0 Aluminum Series internal-reservoir rear shocks (pair)
Billet aluminum adjustable rear lower links

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53173
System Stage: Stage 3
Front Lift Range: 0-3.5 inches (adjustable)
Rear Lift: 2 inches (coil conversion)
Front Shock: 2.5 internal-reservoir coilover
Rear Shock: 2.0 Aluminum Series internal-reservoir
Upper Control Arms: Billet aluminum with Delta Joint
Position: Front and rear

Fitment

Engineered specifically for the 2003-2009 Lexus GX470 (J120). KDSS-equipped vehicles are compatible but require ICON track bar 54200 (sold separately). Some applications may require minor trimming for the front reservoir bracket, and remote reservoir brackets can interfere with certain aftermarket bumper mounts.

2003-2009 Lexus GX470

FAQ

Does the ICON K53173 replace the GX470 factory air suspension?

Yes. It includes a rear coil-conversion kit that permanently replaces the failure-prone factory rear air ride, plus 2.5 front coilovers and billet Delta Joint upper control arms for 0-3.5 inches of lift.

Does the ICON K53173 work on a KDSS-equipped GX470?

Yes, but KDSS-equipped models require ICON track bar 54200, sold separately.

Are the ICON K53173 shocks adjustable?

No. Stage 3 uses non-adjustable vehicle-specific valving. The Stage 7 K53177T adds CDC compression adjustment front and rear.
