ICON Stage 1 Suspension System for 2005-2011 Toyota Hilux
ICON Stage 1 Suspension System for 2005-2011 Toyota Hilux
SKU:K53136
In stock
- Calculated shipping — oversized item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Adjustable 0 to 3 inch front lift to level the Hilux and clear larger tires
- Vehicle-specific tuned 2.5 inch coilovers built for the Hilux chassis
- ICON-engineered Eibach coil springs deliver superior ride feel through full travel
- Internal-reservoir front shocks resist fade and stay cool on long trails
- Matched ICON 2.0 Aluminum Series rear shocks complete the system
- 100% bolt-on install with no drilling, cutting, or welding
- Retains factory upper control arms for a clean Stage 1 setup
The ICON K53136 Stage 1 Suspension System is a complete bolt-on kit for the 2005-2011 Toyota Hilux, pairing height-adjustable 2.5-inch internal-reservoir front coilovers (0-3 inches of lift) with 2.0 Aluminum Series rear shocks and retaining the factory upper control arms.
Key Benefits
- Height-adjustable 2.5 inch front coilovers dial in 0 to 3 inches of lift
- Vehicle-specific shock tuning matched to the Hilux chassis and payload
- ICON-engineered Eibach coil springs for superior ride feel through full travel
- Internal-reservoir front coilovers for exceptional cooling on long, rough trails
- 100% bolt-on installation with no drilling, cutting, or welding

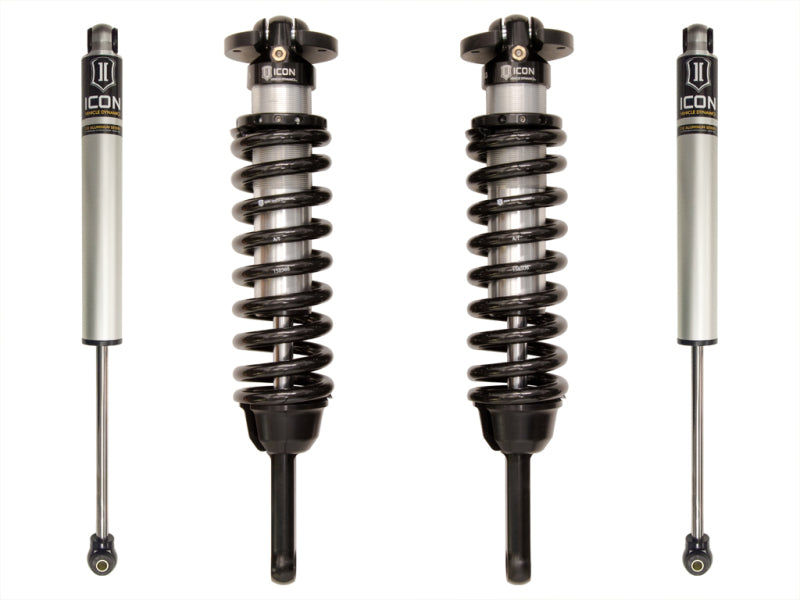

What's Included
- Pair of front 2.5 inch coilover shocks with internal reservoir
- ICON-engineered Eibach front coil springs
- Pair of ICON 2.0 Aluminum Series monotube rear shocks
- Mounting hardware
Fitment
Engineered specifically for the 2005-2011 Toyota Hilux.
- 2005-2011 Toyota Hilux (front coilovers with matched rear shocks)
FAQ
FAQ
How much lift does the ICON K53136 provide?
0 to 3 inches of adjustable front lift from the 2.5-inch coilovers, matched with 2.0 Aluminum Series rear shocks.
Does the ICON K53136 require aftermarket upper control arms?
No. This Stage 1 kit retains the factory upper control arms and installs 100% bolt-on with no drilling, cutting, or welding.
What vehicle does the ICON K53136 fit?
It is built specifically for the 2005-2011 Toyota Hilux.
Vehicle Fitment
Vehicle Fitment
| Years | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2005–2011 | Toyota | Hilux | — | Front |
Specifications
Specifications
- notes
- Retains factory upper control arms
- valve
- standard non-adjustable (Stage 1; not CDCV/CDEV)
- spring
- ICON-engineered Eibach coil
- install
- 100% bolt-on, no drilling/cutting/welding
- lift range
- 0-3 in (adjustable)
- rear shock
- ICON 2.0 Aluminum Series monotube
- front shock
- 2.5 in coilover, internal reservoir
- uca required
- no (retains factory upper control arms)
- recommended tire
- 33 x 11.25 in
- recommended tire size
- 33 x 11.25 inch (larger may require trimming)
