ICON Stage 7 CDCV Suspension System for 03-09 4Runner/FJ Cruiser

Transform your 2003-2009 Toyota 4Runner or 2007-2009 FJ Cruiser with the ICON Stage 7 Suspension System (K53057T) - a complete, fully matched front and rear package engineered for the highest level of on- and off-road performance. Built around 2.5 Series Remote Reservoir front coilovers and tubular Delta Joint upper control arms, this is ICON's top-tier bolt-on system for the 4th-gen 4Runner platform.

Key Benefits

• Up to 3.5" of adjustable front lift to clear larger tires and level the stance
• Tool-free CDCV compression damping adjustment, front and rear, to tune ride for any terrain or load
• Patented Delta Joint upper control arms combine ball-joint durability with high-angle uniball travel
• Bump Zone technology in the rear shocks resists harsh bottom-out in the last 2" of travel
• Complete front-and-rear system - no guesswork pairing mismatched components
• Bolt-on installation with no cutting or welding required

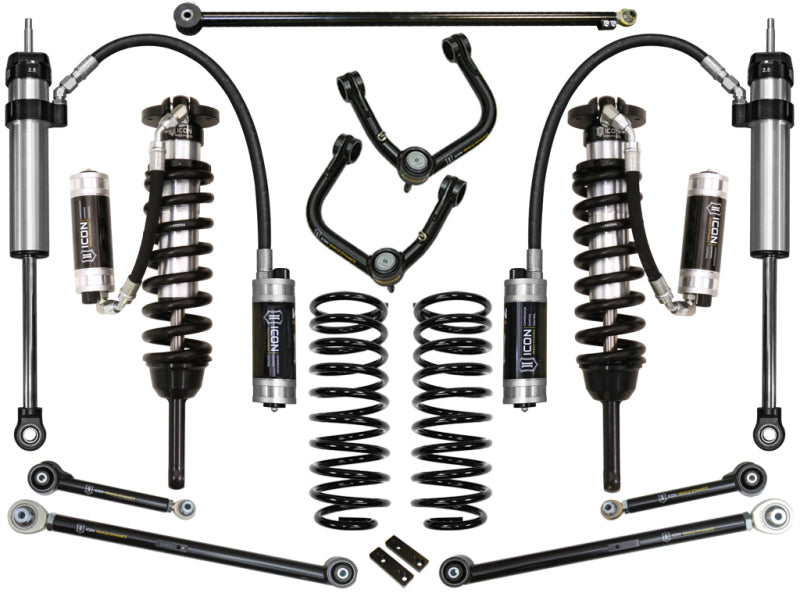

What's Included

• 2.5 Series Remote Reservoir front coilovers with CDCV
• Tubular Delta Joint upper control arm kit
• 2.5 Aluminum Series remote reservoir rear shocks with CDCV and Bump Zone
• 2" rear coil springs
• Adjustable rear track bar
• Tubular rear upper and lower link arm kit

Specifications

• Front lift range: 0-3.5"
• Valve type: CDCV (manual knob, tool-free compression adjustment), front and rear
• Front coilover: 2.5 Series remote reservoir
• Rear shock: 2.5 Aluminum Series remote reservoir with Bump Zone
• Upper control arms: tubular with patented Delta Joint (included)
• Recommended tire: 33" x 11.50" (larger may require fender trimming)
• Installation: bolt-on, no cutting or welding

Fitment

This system is vehicle-specific to the following Toyota models. Verify your model year before ordering.

• 2003-2009 Toyota 4Runner
• 2007-2009 Toyota FJ Cruiser
