ICON Stage 7 CDCV Suspension System for 03-09 Toyota 4Runner/FJ

Transform the on- and off-road performance of your 2003-2009 Toyota 4Runner or 2007-2009 FJ Cruiser with ICON's Stage 7 Suspension System. This complete, bolt-on front and rear package delivers extended travel, premium damping control, and durable billet components for serious trail capability without cutting or welding.

Key Benefits

• Up to 3.5 inches of front lift to clear up to 33x11.50 tires and level the stance
• End-user adjustable CDCV compression damping front and rear for ride tuning across any terrain or load
• Extended-travel remote-reservoir coilovers paired with ICON UCAs for increased front droop travel
• Patented Delta Joint billet upper control arms combine ball-joint durability with uniball high-angle performance
• Bolt-on installation with no cutting or welding required

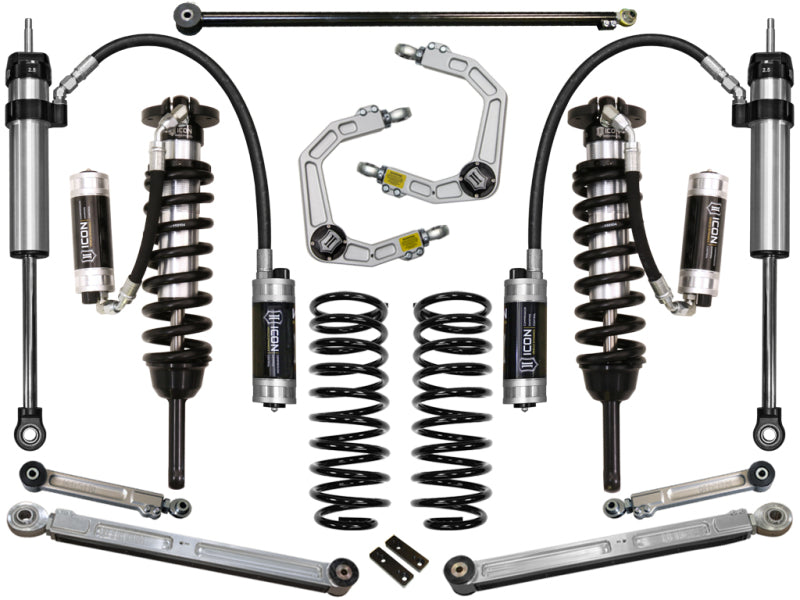

What's Included

• 2.5 Series remote-reservoir front coilovers with CDCV
• Billet aluminum Delta Joint upper control arm kit
• 2.5 Aluminum Series rear shocks with remote reservoir and CDCV
• 2-inch rear coil springs
• Billet aluminum rear upper and lower link arm kit (on-vehicle pinion angle adjustment)
• Adjustable rear track bar

Specifications

• Front lift range: 0-3.5 inches
• Valving: CDCV manual compression damping control, front and rear
• Coilover bodies: CAD-plated corrosion resistant with 7/8in shafts
• UCA material: 6061 aircraft-grade CNC-machined billet aluminum
• Recommended max tire: 33x11.50 (larger sizes may require trimming)
• Position: front and rear (complete system)

Fitment

This system is designed specifically for the following vehicles. The FJ Cruiser fits model years 2007-2009.

• 2003-2009 Toyota 4Runner
• 2007-2009 Toyota FJ Cruiser
