ICON Stage 5 2.5 Suspension System for 03-09 Toyota 4Runner/FJ Cruiser

Take your 2003-2009 Toyota 4Runner or 2007-2009 FJ Cruiser to the top of ICON's lineup with the Stage 5 Suspension System. This complete front-and-rear package adds extended-travel 2.5 Series remote reservoir coilovers to the proven Stage 4 platform for balanced damping and serious on- and off-road capability.

Key Benefits

• Extended-travel 2.5 Series remote reservoir front coilovers increase front droop travel and resist fade on long, fast off-road runs
• 2.5 Series remote reservoir rear shocks add oil volume and cooling so the rear keeps working hard without fade
• Billet aluminum Delta Joint upper control arms correct geometry at lift height and deliver high-angle, high-durability articulation
• 0-3.5 inches of adjustable front lift to dial in your stance and clear up to 33-inch tires
• True bolt-on install with no cutting or welding required

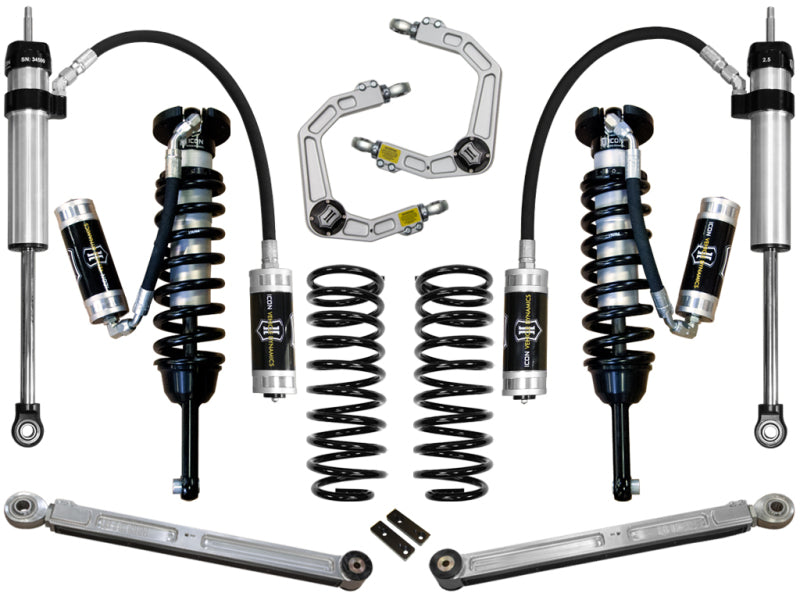

What's Included

• Extended-travel 2.5 Series Remote Reservoir front coilover shocks (pair)
• 2.5 Aluminum Series Remote Reservoir rear shocks (pair)
• 2-inch rear coil springs
• ICON billet aluminum Delta Joint upper control arm kit
• Tubular rear lower link arm kit
• Mounting hardware

Specifications

• Lift: 0-3.5 inches adjustable (front)
• Front shock: 2.5 Series remote reservoir coilover, 7/8-inch shaft, CAD-plated body
• Rear shock: 2.5 Aluminum Series remote reservoir
• Upper control arms: 6061 billet aluminum with patent-pending Delta Joint
• Construction: CNC-machined 6061 aircraft-grade aluminum components
• Recommended tire: 33 x 11.50 (larger may require trimming)
• Optional 700 lb/in expedition coil available for heavier-equipped vehicles

Fitment

This system is a direct fit for the following vehicles. It is a complete standalone front and rear lift system - no separate lift kit required.

• 2003-2009 Toyota 4Runner
• 2007-2009 Toyota FJ Cruiser

Note: remote reservoir mounting brackets may interfere with some aftermarket bumper mounts and windshield washer bottles.
