ICON Stage 4 0-3.5" Lift System for 03-09 4Runner / 07-09 FJ Cruiser

Name: ICON Stage 4 0-3.5" Lift System for 03-09 4Runner / 07-09 FJ Cruiser
Brand: ICON
SKU: K53054
Price: 5470.41 USD
Availability: InStock

$5,470.41 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53054

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

The ICON Vehicle Dynamics K53054 Stage 4 Suspension System is a complete bolt-on front-and-rear lift system for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470, delivering 0 to 3.5 inches of adjustable front lift with 2 inches of rear lift.

Key Benefits

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

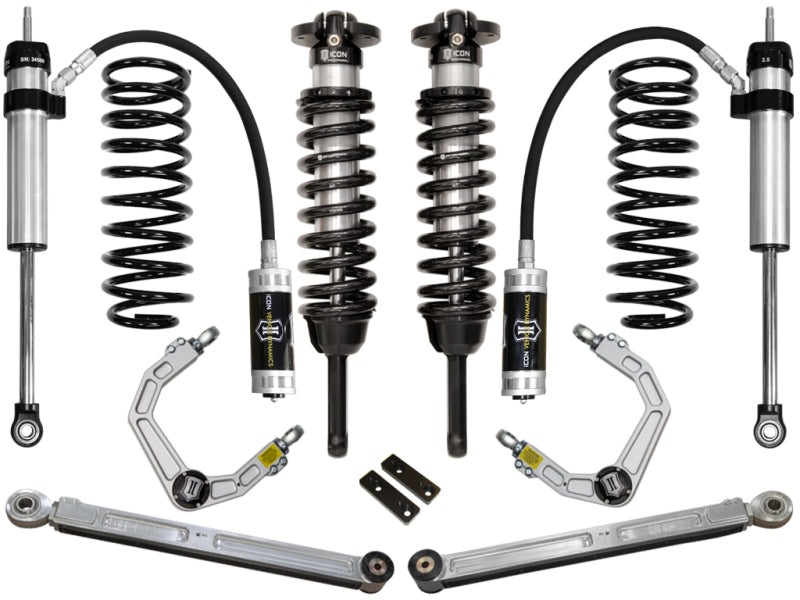

What's Included

Front extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving (0 to 3.5 inches of adjustable lift)
Billet aluminum ICON Delta Joint upper control arms
Billet aluminum rear lower trailing arm kit (adjustable)
Rear 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
Rear 2-inch lift coil springs
Mounting hardware

Sold as one complete Stage 4 front-and-rear suspension system for a single vehicle.

Specifications

Brand: ICON Vehicle Dynamics
Part number: K53054
System: Stage 4 complete front-and-rear suspension system
Front lift: 0 to 3.5 inches (adjustable)
Rear lift: 2 inches
Front coilover: extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving
Upper control arms: billet aluminum ICON Delta Joint upper control arms (included)
Rear links: billet aluminum lower trailing arms
Rear shocks: 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
Construction: 6061 aircraft-grade aluminum, CAD-plated coilover bodies, FK rod-end bearings
Installation: bolt-on, no cutting or welding

Fitment

The K53054 Stage 4 system is engineered specifically for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470. All years share this ICON application; the front coilovers are matched to this chassis and the rear springs, shocks, and links are shared across the GX470 and 4Runner/FJ platforms.

2003-2009 Toyota 4Runner
2007-2009 Toyota FJ Cruiser
2003-2009 Lexus GX470

Does not fit the 2010-2024 Toyota 4Runner, 2010-2014 FJ Cruiser, or 2010-2023 Lexus GX460 (those use the K5306x series). The K53054 ships with billet aluminum upper control arms; the K53054T is the identical system with tubular-steel Delta Joint upper control arms instead.

FAQ

Does the K53054 fit my GX470?

Yes. The K53054 Stage 4 system fits the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470. It is a single ICON application covering all three vehicles for those years.

What is the difference between the K53054 and the K53054T?

Both are the same Stage 4 system with the same coilovers, shocks, and springs. The K53054 includes billet aluminum ICON Delta Joint upper control arms, while the K53054T uses tubular-steel Delta Joint upper control arms.

Do I need to cut or weld to install this system?

No. This is a complete bolt-on system that installs with hand tools using factory mounting points; no cutting or welding is required.
