ICON Stage 3 2.5 Suspension System for 03-09 4Runner/FJ

Transform your 2003-2009 Toyota 4Runner or 2007-2009 FJ Cruiser with the ICON K53053 Stage 3 Suspension System, a complete front-and-rear package engineered for adjustable lift, extended wheel travel, and rugged off-road capability without sacrificing on-road ride quality.

Key Benefits

• Adjustable 0-3.5" of front lift to dial in your stance and clear larger tires
• Extended-travel 2.5 Series front coilovers for greater wheel travel and control
• Billet aluminum Delta Joint upper control arms restore correct geometry and add front droop travel
• CNC-machined 6061 billet rear lower links are far stronger than the OE stamped-steel units
• No-drill, bolt-on installation using factory mounting points

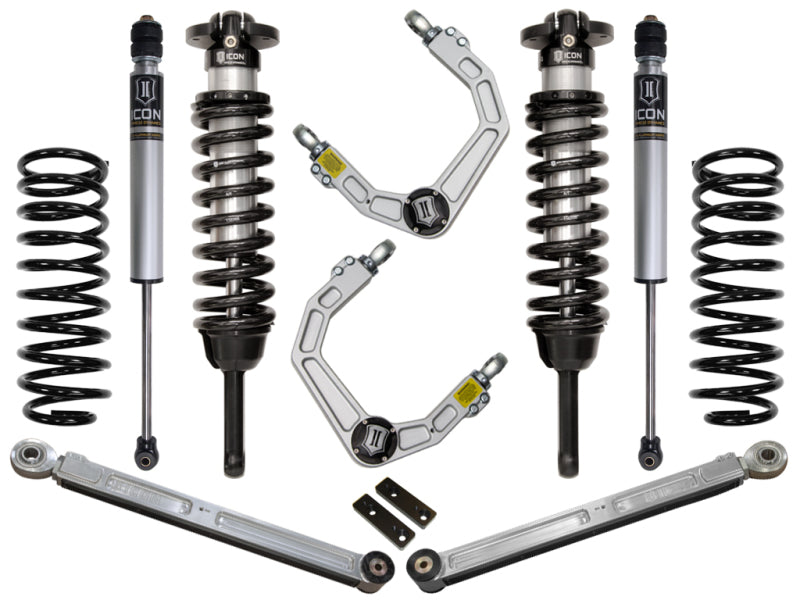

What's Included

• Front extended-travel 2.5 Series IR coilover kit (pair)
• Billet Delta Joint upper control arm kit
• Rear 2.0 Aluminum Series IR shocks (pair)
• Rear lift coil springs
• Billet aluminum rear lower link kit
• Mounting hardware

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53053
• Stage: 3 (Billet UCA)
• Front lift: 0-3.5" (adjustable)
• Rear lift: approximately 2"
• Front shock: 2.5 Series Extended Travel coilover, CDCV (manually adjustable damping)
• Rear shock: 2.0 Aluminum Series
• Recommended tire size: 33" x 11.50"
• Position: Front and rear

Fitment

This exact kit (K53053) is verified by ICON Vehicle Dynamics to fit the following Toyota vehicles. Upper control arms are included; no additional aftermarket UCAs are required.

• 2003-2009 Toyota 4Runner
• 2007-2009 Toyota FJ Cruiser
