ICON Stage 2 Suspension System for 03-09 4Runner & FJ Cruiser

Transform your Toyota 4Runner or FJ Cruiser with the ICON Vehicle Dynamics K53052T Stage 2 Suspension System. This complete bolt-on package delivers 0-3.5 inches of adjustable front lift, increased wheel travel, and refined damping for confident performance both on the trail and on the street.

Key Benefits

• Adjustable 0-3.5 inches of front lift to clear larger tires and level the stance
• Extended Travel 2.5 Series front coilovers add wheel travel for a smoother, more controlled ride
• Tubular upper control arms with patented Delta Joint deliver durability and high-angle articulation
• Vehicle-specific tuning front and rear for superior damping and body control
• Bolt-on installation with no cutting or welding required

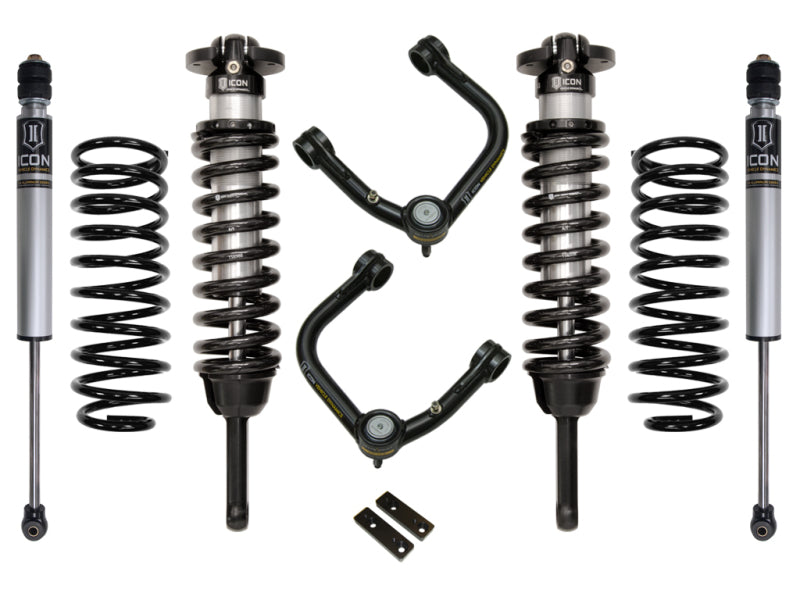

What's Included

• Front Extended Travel 2.5 Series coilover shocks
• Tubular upper control arms with ICON Delta Joints
• Rear 2-inch lift spring kit
• Rear 2.0 Series internal reservoir shocks

Specifications

• Brand: ICON Vehicle Dynamics
• Part number: K53052T
• Series: Stage 2
• Front shock: 2.5 Series Extended Travel coilover
• Rear shock: 2.0 Series internal reservoir
• Front lift: 0-3.5 inches (adjustable)
• Rear lift: 2 inches
• Upper control arms: Tubular with Delta Joint (included)
• Construction: 6061 aircraft-grade CNC-machined aluminum components

Fitment

Engineered as a direct bolt-on system for the following Toyota platforms. The included tubular upper control arms are required to support the extended travel front coilovers.

• 2003-2009 Toyota 4Runner
• 2007-2009 Toyota FJ Cruiser
