ICON

ICON Stage 2 Suspension System for 03-09 4Runner/FJ Cruiser

Name: ICON Stage 2 Suspension System for 03-09 4Runner/FJ Cruiser
Brand: ICON
SKU: K53052
Price: 3612.05 USD
Availability: InStock

$3,612.05 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53052

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable
Complete front-and-rear system tuned by ICON for balanced on- and off-road performance

The ICON Vehicle Dynamics K53052 Stage 2 Suspension System is a complete bolt-on front-and-rear lift system for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470, delivering 0 to 3.5 inches of adjustable front lift with 2 inches of rear lift.

Key Benefits

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

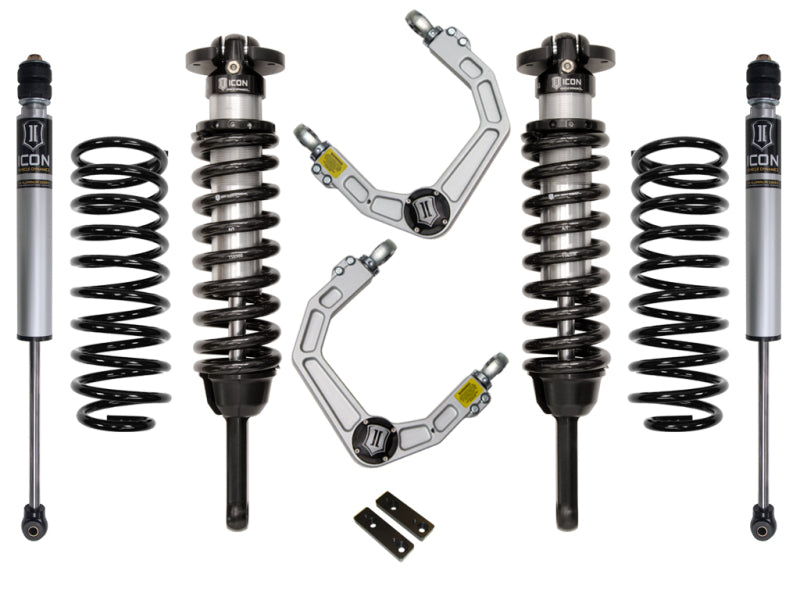

What's Included

Front extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving (0 to 3.5 inches of adjustable lift)
Billet aluminum ICON Delta Joint upper control arms
Rear 2.0 Aluminum Series internal-reservoir shocks
Rear 2-inch lift coil springs
Mounting hardware

Sold as one complete Stage 2 front-and-rear suspension system for a single vehicle.

Specifications

Brand: ICON Vehicle Dynamics
Part number: K53052
System: Stage 2 complete front-and-rear suspension system
Front lift: 0 to 3.5 inches (adjustable)
Rear lift: 2 inches
Front coilover: extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving
Upper control arms: billet aluminum ICON Delta Joint upper control arms (included)
Rear shocks: 2.0 Aluminum Series internal-reservoir shocks
Construction: 6061 aircraft-grade aluminum, CAD-plated coilover bodies, FK rod-end bearings
Installation: bolt-on, no cutting or welding

Fitment

The K53052 Stage 2 system is engineered specifically for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470. All years share this ICON application; the front coilovers are matched to this chassis and the rear springs, shocks, and links are shared across the GX470 and 4Runner/FJ platforms.

2003-2009 Toyota 4Runner
2007-2009 Toyota FJ Cruiser
2003-2009 Lexus GX470

Does not fit the 2010-2024 Toyota 4Runner, 2010-2014 FJ Cruiser, or 2010-2023 Lexus GX460 (those use the K5306x series). The K53052 ships with billet aluminum upper control arms; the K53052T is the identical system with tubular-steel Delta Joint upper control arms instead.

FAQ

Does the K53052 fit my GX470?

Yes. The K53052 Stage 2 system fits the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470. It is a single ICON application covering all three vehicles for those years.

What is the difference between the K53052 and the K53052T?

Both are the same Stage 2 system with the same coilovers, shocks, and springs. The K53052 includes billet aluminum ICON Delta Joint upper control arms, while the K53052T uses tubular-steel Delta Joint upper control arms.

Do I need to cut or weld to install this system?

No. This is a complete bolt-on system that installs with hand tools using factory mounting points; no cutting or welding is required.
