ICON 2.5 Stage 1 Suspension System for 03-09 Toyota 4Runner FJ

Take command of your 2003-2009 Toyota 4Runner or 2007-2009 FJ Cruiser with the ICON Vehicle Dynamics Stage 1 Suspension System (K53051). This complete, bolt-on package replaces tired factory components with vehicle-specific tuned ICON 2.5 Series front coilovers and matched rear shocks and springs for a confident stance, added ground clearance, and dramatically improved ride quality on the street and on the trail.

Key Benefits

• 0 to 3.5 inches of adjustable front lift to clear larger tires and level the ride height
• Vehicle-specific damping tune front to rear for smooth, controlled performance
• Reduces factory body roll for sharper handling and a more planted feel
• Bolt-on installation with no cutting or welding required
• Rebuildable, serviceable ICON shocks built for the long haul

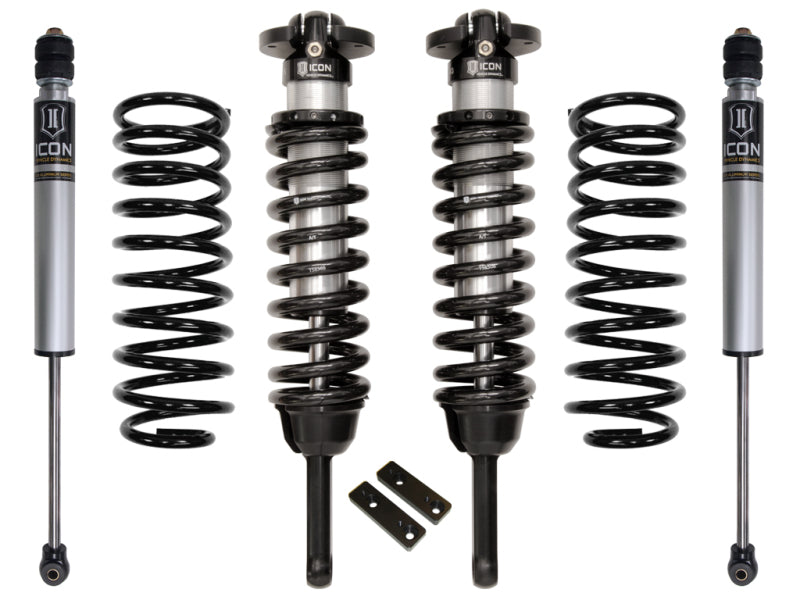

What's Included

• Two ICON 2.5 Series front coilover shocks, vehicle-specific tuned and manually adjustable for ride height
• Two ICON 2.0 Aluminum Series rear monotube shocks tuned to match the front coilovers
• Rear 2-inch lift coil springs
• Mounting hardware

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53051
• Stage: Stage 1
• Front coilover: 2.5 Series, manually adjustable (no electronic valving)
• Lift range: 0 to 3.5 inches front, 2 inches rear
• Recommended tire size: 33 x 11.50
• Installation: Bolt-on, no cutting or welding

Fitment

Engineered and tuned for the following vehicles:

• 2003-2009 Toyota 4Runner (2WD/4WD)
• 2007-2009 Toyota FJ Cruiser
