ICON

ICON Stage 3 Billet UCA Suspension System 05-23 Toyota Tacoma

Name: ICON Stage 3 Billet UCA Suspension System 05-23 Toyota Tacoma
Brand: ICON
SKU: K53003
Price: 3836.75 USD
Availability: InStock

$3,836.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53003

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5-inch extended-travel front coilovers for increased wheel travel
Billet aluminum upper control arms with the patented Delta Joint
2.0 Aluminum Series remote-reservoir rear shocks
Rear Add-A-Leaf adds 1.5 inches of rear lift
Billet-UCA version; K53003T is the tubular-UCA version
4WD only; fits 2016-2023 Toyota Tacoma

The ICON Vehicle Dynamics K53003 is a Stage 3 suspension system for the 2016-2023 Toyota Tacoma (4WD), combining 2.5 Series extended-travel front coilovers, billet aluminum upper control arms with the patented Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

Key Benefits

2.5-inch extended-travel front coilovers with internal reservoir for increased wheel travel
Billet aluminum upper control arms with the patented ICON Delta Joint for corrected geometry and durability
2.0 Aluminum Series remote-reservoir rear shocks with vehicle-specific valving
Rear Add-A-Leaf replaces the factory overload leaves for 1.5 inches of rear lift
0-2.75 inches of front lift on 2016-2023 models

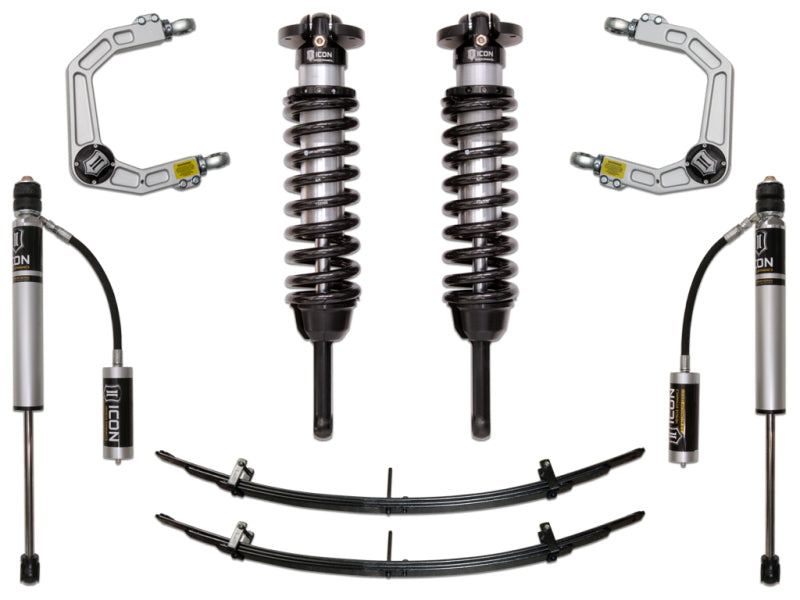

What's Included

Pair of ICON 2.5 Series extended-travel front coilovers with internal reservoir
Pair of ICON billet aluminum upper control arms with Delta Joint
Pair of ICON 2.0 Aluminum Series remote-reservoir rear shocks
ICON rear Add-A-Leaf kit

Fitment

Fits the 2016-2023 Toyota Tacoma in 4WD. Front lift is 0-2.75 inches with 1.5 inches of rear lift from the Add-A-Leaf; 2017-2023 TRD Pro models are limited to 0-1.25 inches front and 1 inch rear. Does not fit 2WD Tacoma models with 5-lug wheel studs. This Stage 3 uses billet aluminum upper control arms; the K53003T is the same Stage 3 with tubular upper control arms. Stage 4 (K53004) upgrades the front coilovers to remote reservoirs.

FAQ

What upper control arms come in the K53003?

The K53003 includes billet aluminum upper control arms with the patented ICON Delta Joint. The K53003T is the same Stage 3 built with tubular upper control arms.

What is included in the Stage 3 system?

It includes 2.5 Series extended-travel front coilovers, billet UCAs with Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

How much lift does it provide?

Front lift is 0-2.75 inches on 2016-2023 Tacomas, plus 1.5 inches of rear lift from the Add-A-Leaf.

How is Stage 3 different from Stage 4?

Stage 3 uses internal-reservoir front coilovers; Stage 4 (K53004) upgrades to remote-reservoir front coilovers for more cooling capacity.

Vehicle Fitment

Years	Make	Model	Submodel
2016–2023	Toyota	Tacoma	—

Specifications

lift: 0-2.75in front / ~1.5in rear
rear: 2.0 Aluminum Series remote-reservoir shocks + Add-A-Leaf (1.5 in rear lift)
type: Complete Stage 3 system (coilovers + UCAs + add-a-leaf + rear shocks)
front: 2.5 Series extended-travel internal-reservoir coilovers
system: Stage 3 (extended-travel coilovers + billet UCAs + rear shocks + Add-A-Leaf)
sold as: Complete kit
includes: 2.5 RR front coilovers, billet tubular UCAs, rear add-a-leaf, 2.0 RR rear shocks
drivetrain: 4WD only
front lift: 0-2.75 in (2016-2023); TRD Pro 0-1.25 in
upper control arms: Billet aluminum with Delta Joint
