ICON 3.0 VS RR CDCV Front Coilover Kit for 2008-2021 Land Cruiser 200

Name: ICON 3.0 VS RR CDCV Front Coilover Kit for 2008-2021 Land Cruiser 200
Brand: ICON
SKU: 58765
Price: 3974.3 USD
Availability: InStock

ICON 3.0 VS RR CDCV Front Coilover Kit for 2008-2021 Land Cruiser 200

$3,974.30 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58765

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Flagship 3.0-inch remote-reservoir shock body resists fade under sustained load
CDCV single-knob adjuster with 10 manual compression settings
Adjustable front lift for the 200 Series and LX570
Built for heavily accessorized overland rigs
Requires aftermarket upper control arms
Fits 2008-2021 Land Cruiser 200 Series and Lexus LX570

The ICON Vehicle Dynamics 58765 is a 3.0 Series VS remote-reservoir CDCV front coilover kit for the 2008-2021 Toyota Land Cruiser 200 Series and 2008-2021 Lexus LX570, built from ICON's largest Toyota shock body for maximum control.

Key Benefits

Large 3.0-inch shock body with more piston area and oil volume than 2.5 shocks for superior damping and fade resistance
CDCV single-knob adjuster with 10 external compression settings
Adjustable front lift to clear larger tires and level the stance
Aluminum remote reservoirs add cooling for extended off-road and overland use
Built for heavily loaded and accessorized rigs

What's Included

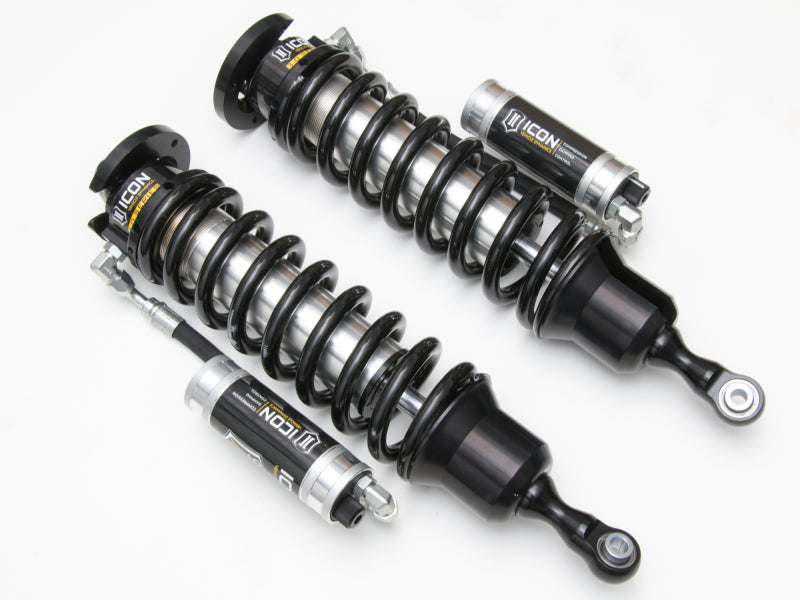

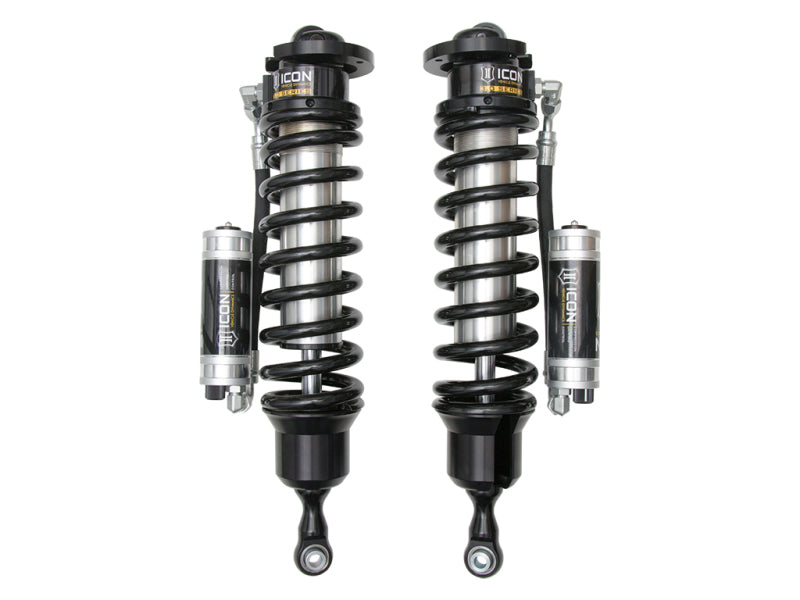

Pair of ICON 3.0 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Specifications

Brand: ICON Vehicle Dynamics
Series: 3.0 Series VS remote reservoir
Valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
Lift range: Adjustable front lift over stock
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: Aftermarket UCAs required

Fitment

Fits the 2008-2021 Toyota Land Cruiser 200 Series and 2008-2021 Lexus LX570. This 3.0 Series system is designed to run with aftermarket upper control arms. Does not fit the 2022 and newer Land Cruiser 300 Series. Requires aftermarket upper control arms. For a smaller 2.5-inch body that runs on the factory UCA and is KDSS compliant, choose the 58760C.

FAQ

Do I need upper control arms for the 58765?

Yes. ICON specifies this 3.0 Series coilover be used with aftermarket upper control arms.

Does it fit the Lexus LX570?

Yes. It fits the 2008-2021 Land Cruiser 200 Series and the 2008-2021 Lexus LX570.

How is the 58765 different from the 58760C?

The 58765 uses the larger 3.0-inch shock body and requires aftermarket UCAs; the 58760C uses the 2.5-inch body, is KDSS compliant, and runs on the factory UCA.
