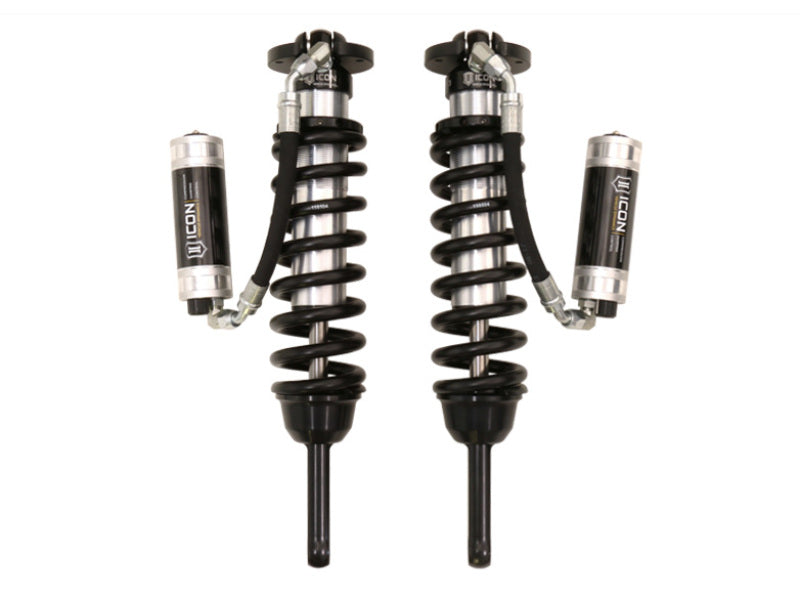

ICON 2.5 Ext Travel CDCV Front Coilover Kit for FJ Cruiser & 4Runner

Name: ICON 2.5 Ext Travel CDCV Front Coilover Kit for FJ Cruiser & 4Runner
Brand: ICON
SKU: 58745C-700
Price: 2423.15 USD
Availability: InStock

$2,423.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58745C-700

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDCV front coilover kit (MPN 58745C-700) is a bolt-in front suspension upgrade for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 levels of adjustment for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

Specifications

Brand: ICON Vehicle Dynamics
Part number (MPN): 58745C-700
Series: ICON V.S. 2.5 Series
Reservoir: Remote Reservoir
Front lift range: 0-3.5 inches of front lift
Damping: CDCV manual compression adjuster with 10 levels of adjustment
Position: Front (sold as a pair)
Travel: Extended travel
Spring rate: 700 lb/in
Construction: a corrosion-resistant CAD-plated 2.5-inch shock body, 7/8-inch shaft, and FK rod-end bearings

What's Included

Sold as a front pair of CDCV coilovers with 700 lb/in springs.

Fitment

This kit is a direct front-suspension fit for 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, and 2003-2009 Lexus GX470. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.
