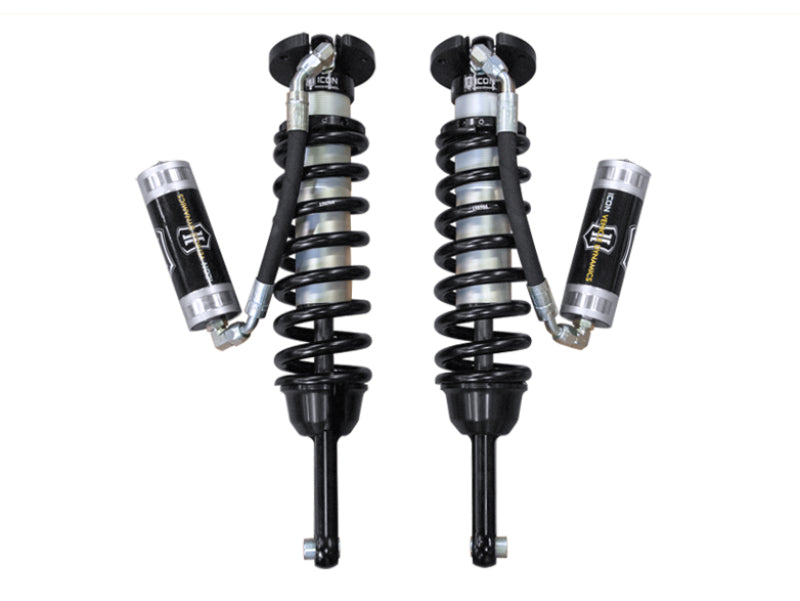

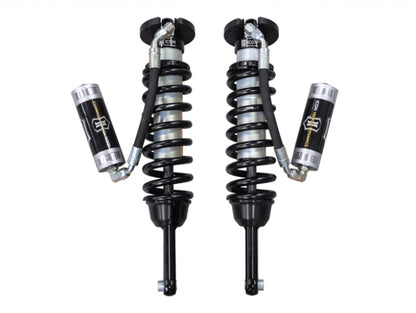

ICON Ext Travel Front Coilovers 07-09 FJ/03-09 4Runner/GX470

Transform the front end of your Toyota FJ Cruiser, 4Runner, or Lexus GX470 with the ICON Vehicle Dynamics V.S. 2.5 Series extended travel remote reservoir front coilover kit (PN 58745). Engineered for serious off-road performance, this pair delivers a sport-tuned ride on the street and confident control over the rough stuff.

Key Benefits

• Larger 2.5 in shock body and increased piston area for superior damping over stock
• Remote reservoirs keep oil cooler for consistent damping during heavy use
• 0-3.5 inches of adjustable front lift to clear larger wheel and tire packages
• Extended travel length increases usable front wheel travel
• Vehicle-specific valving balances on-road comfort with off-road capability
• Upgraded coil springs support added weight from bumpers and winches

What's Included

• Pair of front 2.5 Series remote reservoir coilover shocks
• ICON-engineered 700 lb/in coil springs (pre-assembled)
• Sway bar relocation bracket kit and mounting hardware

Specifications

• Position: Front (pair)
• Series: V.S. 2.5 extended travel remote reservoir
• Spring rate: 700 lb/in
• Lift range: 0-3.5 in front
• Valving: Standard (non-CDCV)
• Shock body: 2.5 in CAD-plated, 7/8 in shaft, FK rod ends

Fitment

Direct bolt-in to the OEM front shock location. Extended travel length requires aftermarket front upper control arms (sold separately). Rear shocks sold separately.

• 2007-2009 Toyota FJ Cruiser
• 2003-2009 Toyota 4Runner
• 2003-2009 Lexus GX470
