ICON

ICON 2.5 VS IR Front Coilover Kit for 03-09 4Runner FJ GX470

Name: ICON 2.5 VS IR Front Coilover Kit for 03-09 4Runner FJ GX470
Brand: ICON
SKU: 58645
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58645

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

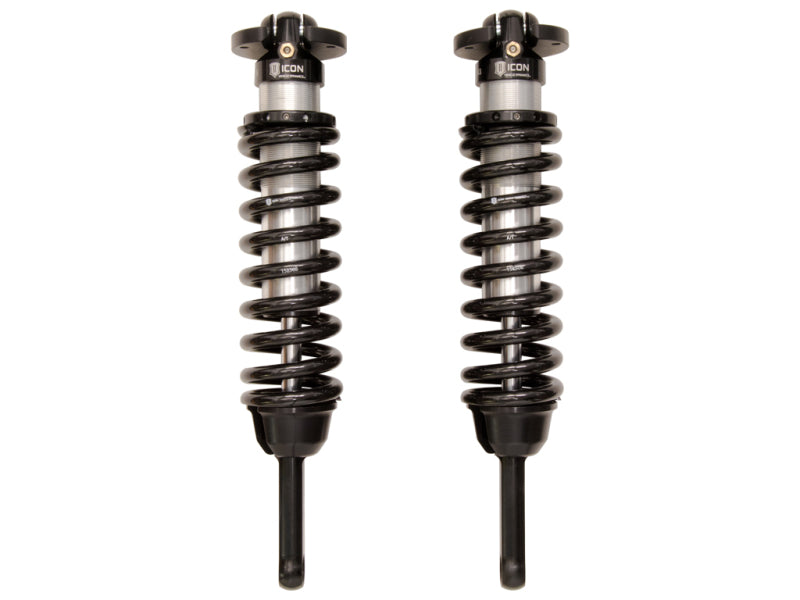

The ICON Vehicle Dynamics 58645 is a Vehicle Specific (V.S.) 2.5 Series extended-travel front coilover kit for the 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser and 2003-2009 Lexus GX470.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Specifications

Position: Front (sold as a pair)
Series: ICON Vehicle Specific (V.S.) 2.5 Series
Shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
Reservoir: Internal reservoir (IR)
Valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
Front lift range: 0-3.5 inches
Brand: ICON Vehicle Dynamics
Part number: 58645

Fitment

Fits the following applications, verified for ICON part number 58645: 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, 2003-2009 Lexus GX470. Extended-travel version that requires aftermarket upper control arms; the standard-travel kit for stock UCAs is ICON 58640. The extended-travel length requires aftermarket front upper control arms (sold separately). If you are keeping the factory upper control arms, choose the standard-travel ICON 58640 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.
