ICON Billet Upper Control Arms Delta Joint for 4Runner FJ GX

Name: ICON Billet Upper Control Arms Delta Joint for 4Runner FJ GX
Brand: ICON
SKU: 58551DJ
Price: 1429.95 USD
Availability: InStock

$1,429.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58551DJ

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant

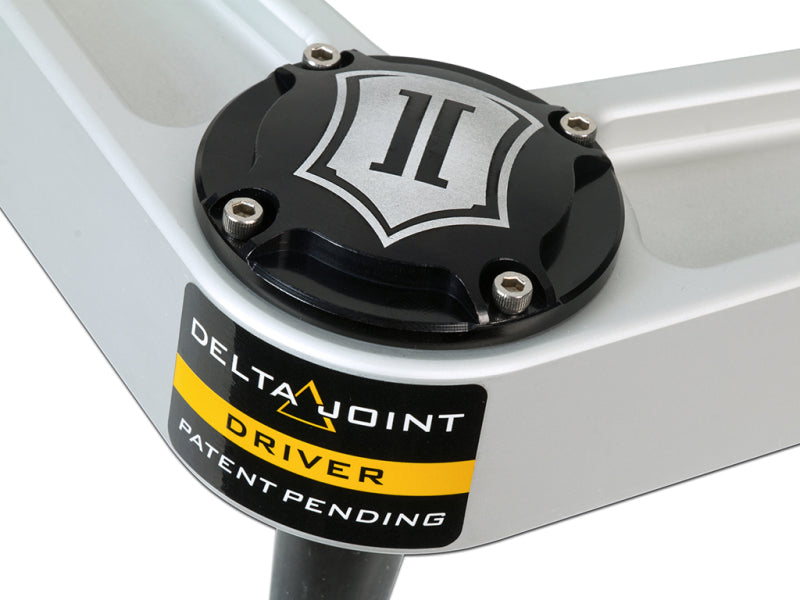

ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability
Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points

The ICON Vehicle Dynamics 58551DJ is a billet aluminum Delta Joint upper control arm kit for the 2003-2024 Toyota 4Runner, 2007-2014 Toyota FJ Cruiser, 2010-2023 Lexus GX460 and 2003-2009 Lexus GX470.

It replaces the factory upper control arms to restore correct front-end geometry and add tire and travel clearance when running an ICON front coilover lift.

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant
ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability
Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points
Backed by ICON's limited lifetime warranty on the fabricated weldment; the Delta Joint carries a 5-year limited warranty when run in a complete ICON suspension system.

What's Included

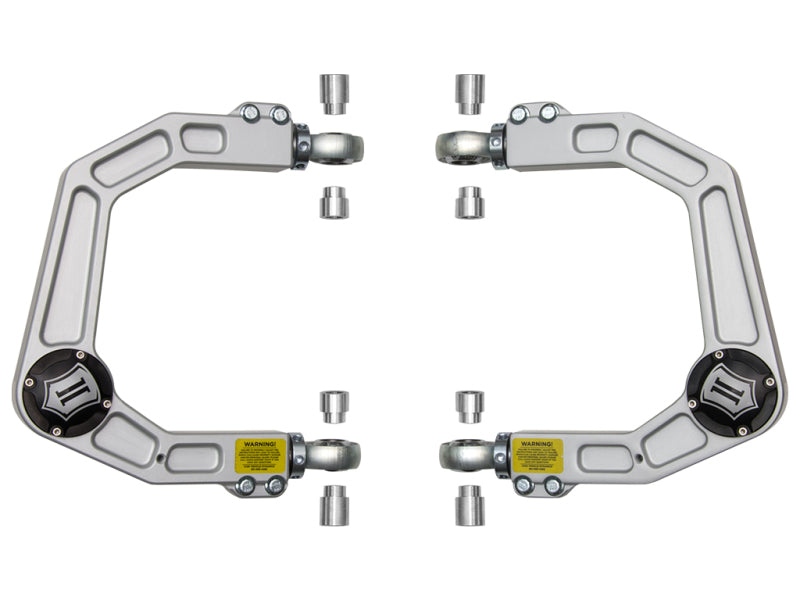

Pair of billet aluminum upper control arms (left and right) with integrated Delta Joint assemblies
Serviceable bushings/adjuster hardware
Installation hardware and instructions

Specifications

Position: Front (sold as a pair, left and right)
Joint: ICON Delta Joint (patented high-angle sealed ball joint)
Construction: CNC-machined 6061 billet aluminum, matte anodized
Adjustable: On-vehicle caster and camber
Brand: ICON Vehicle Dynamics
Part number: 58551DJ

Fitment

Direct-fit for the following applications, verified for ICON part number 58551DJ: 2003-2024 Toyota 4Runner, 2007-2014 Toyota FJ Cruiser, 2010-2023 Lexus GX460, 2003-2009 Lexus GX470. CNC-machined 6061 billet version with on-vehicle caster/camber adjustment; the tubular 1026 DOM steel version is ICON 58451DJ. This is the billet aluminum arm — for the tubular steel version see ICON 58451DJ.

2003-2024 Toyota 4Runner
2007-2014 Toyota FJ Cruiser
2010-2023 Lexus GX460
2003-2009 Lexus GX470

FAQ

What is the difference between the billet and tubular ICON UCAs?

The billet arm is CNC-machined from 6061 aluminum with threaded adjuster sleeves for on-vehicle caster and camber tuning; the tubular arm (ICON 58451DJ) is welded 1026 DOM steel with fixed built-in caster. Both use the Delta Joint.

Does this fit the 4Runner and Lexus GX?

Yes — it covers the 2003-2024 4Runner, 2007-2014 FJ Cruiser and 2003-2009 Lexus GX470 / 2010-2023 GX460.

Can I adjust caster and camber?

Yes — the billet arms include threaded adjuster sleeves for on-vehicle caster and camber tuning.
