Diamond Audio HX1200.1D 1200 Watt 1 Channel Amp

The Diamond Audio HX1200.1D single channel 1200 watt RMS amplifier is designed for power hungry systems that require a small amp with big power.

• Anodized extruded aluminum heat sink provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Audiophile grade high-tolerance components used throughout
• Class D amplifier technology
• Balanced deferential inputs for superior noise rejection
• Output clip indicators for precise system set-up
• Fully variable, 24dB per octave, electronic crossover
• Variable 18dB per octave sub-sonic filter
• Phase adjustable from 0 to 180 degrees
• Adjustable Bass EQ (45Hz: 0 db to +12dB) / remote level control included

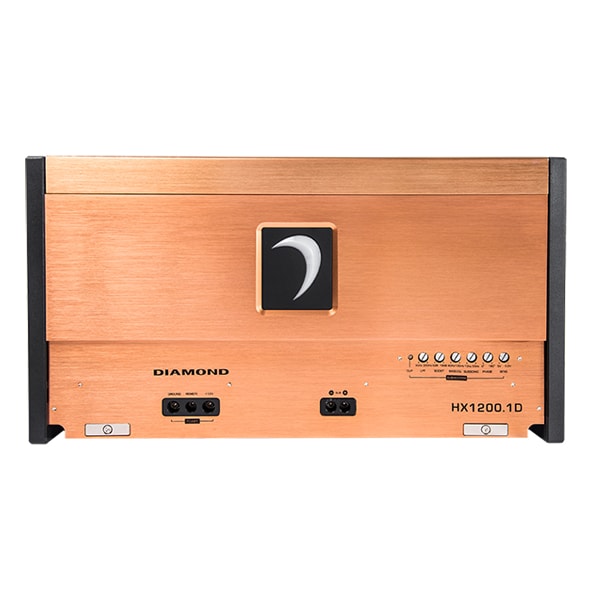

• Top mounted controls for convenient adjustment
• Illuminated logo / fully concealed mounting

Diamond Audio HX1200.1D Owners Manual

Specs

• RMS Power Rating
  • RMS Power (4Ω): 540 W RMS
  • RMS Power (2Ω):  870 W RMS
  • RMS Power (1Ω): 1200 W RMS

• Type
  • Topology: Class D

• Power Supply
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC-17.0VDC
  • Idle Current: (0.7A)

• Distortion
  • THD 4(1KH@4Ω) : 0.01%
  • S/N Ratio(A weighted@1W): -80dBA
  • S/N Ratio(A weighted@FP): -95dBA

• Input Sensitivity
  • Low Input Level: 200mV-5.0V
  • High Input Level: N/A

• Input Impedance
  • Low Input Level: 20 KΩ
  • High Input Level: N/A

• Output Stage
  • Output Impedance: 0.0297 Ω
  • Damping Factor(50Hz@4Ω): >250
  • Bandwidth(-3dB): 10Hz-300Hz

• Crossover(-12dB/Oct)
  • Variable High-Pass: N/A
  • Variable Low-Pass: 30Hz-300Hz
  • Variable Sub-Sonic: 10Hz-55Hz@12dB

• Fuse Ratings
  • ATC: 30A X 4

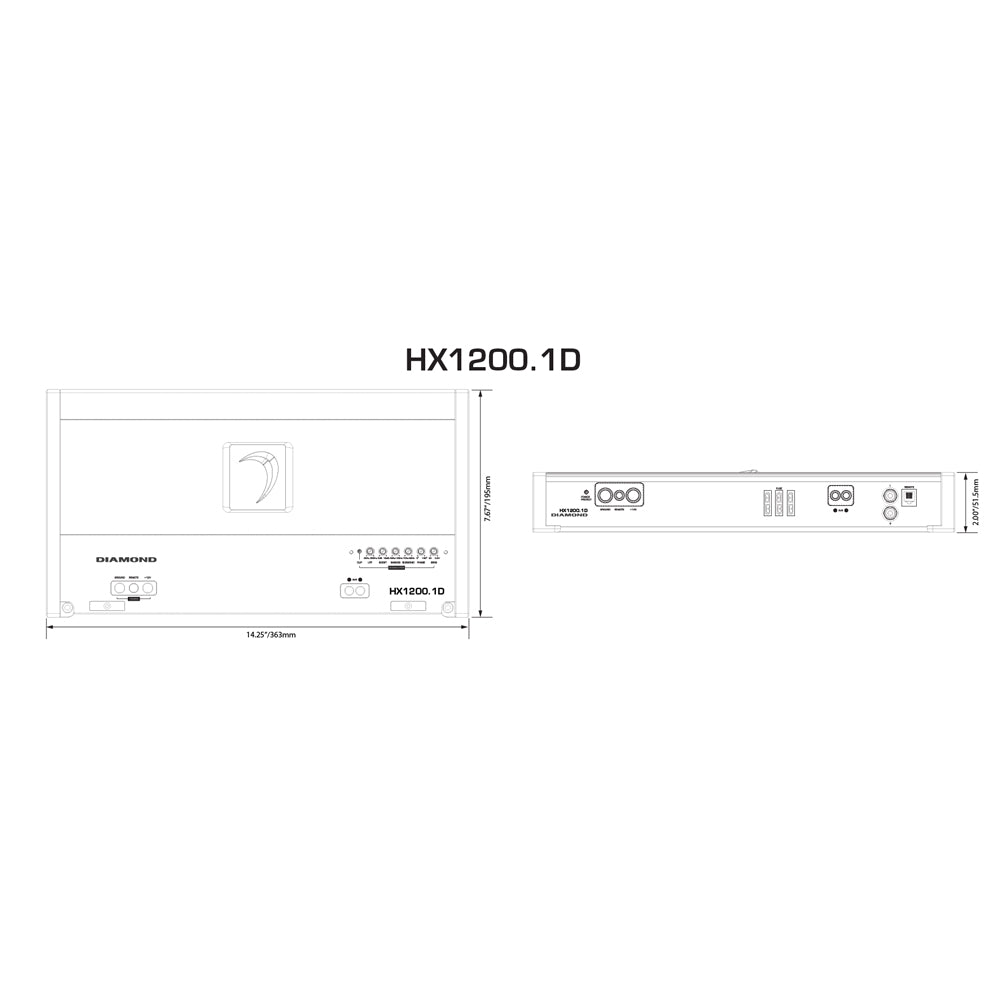

• Dimensions
  • Length x Width x Height(Inches): 14.25" x 7.67" x 2"
  • Length x Width x Height(mm): 363 x 195 x 51.5
