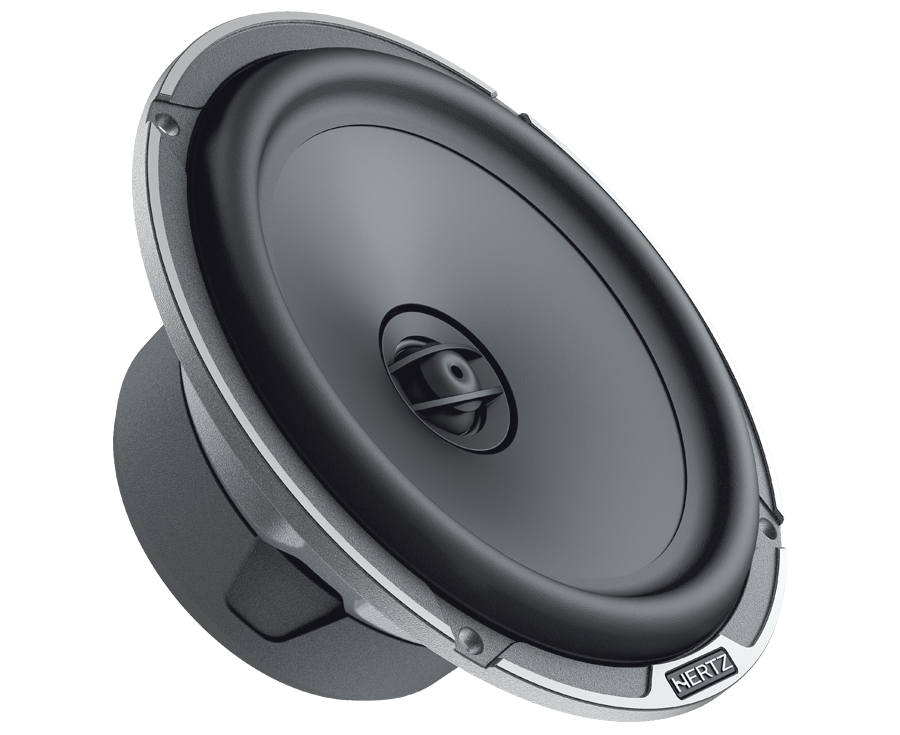

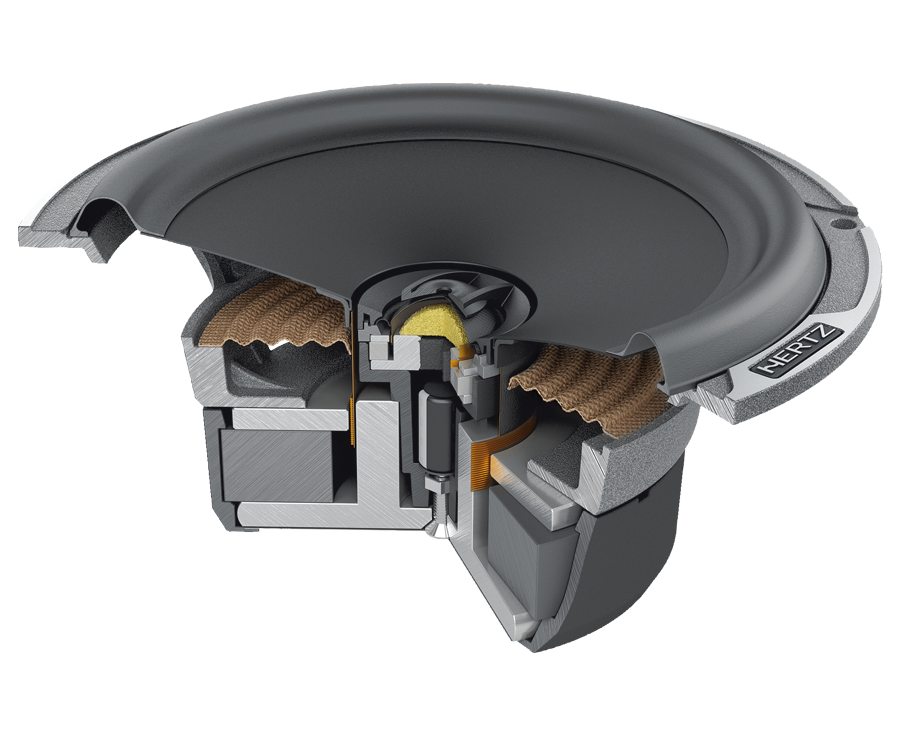

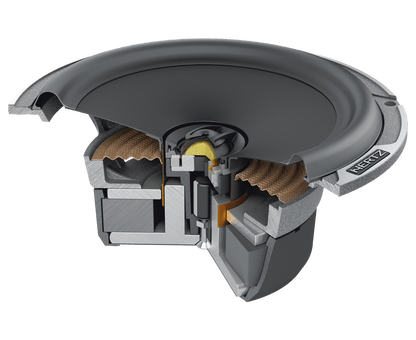

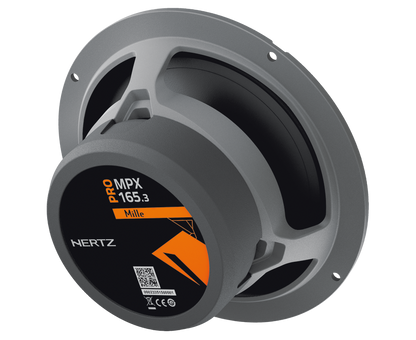

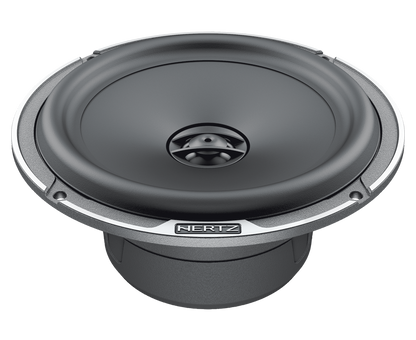

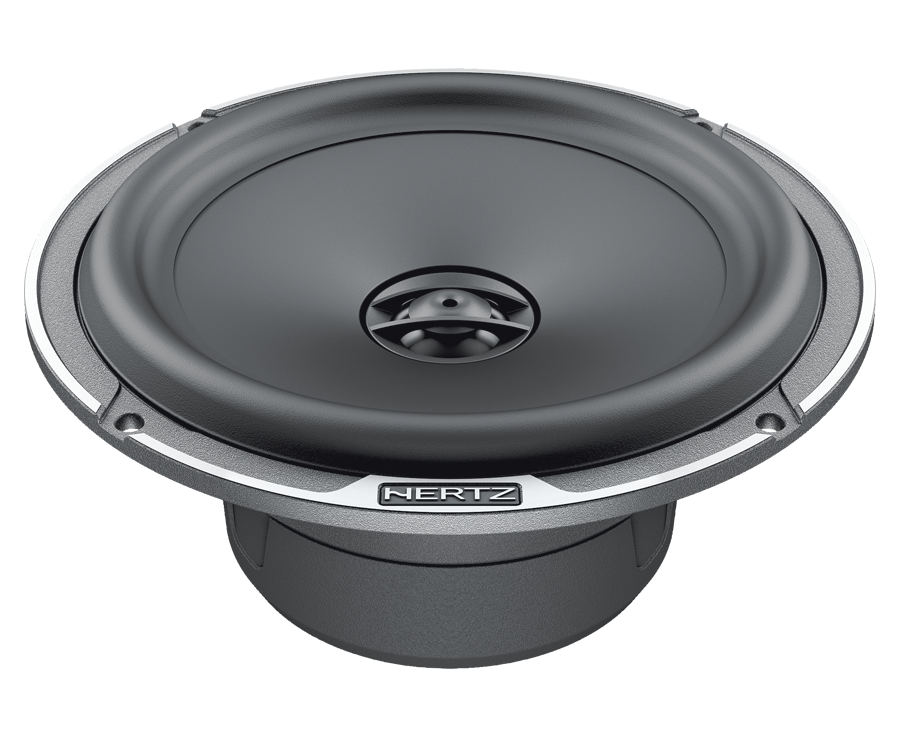

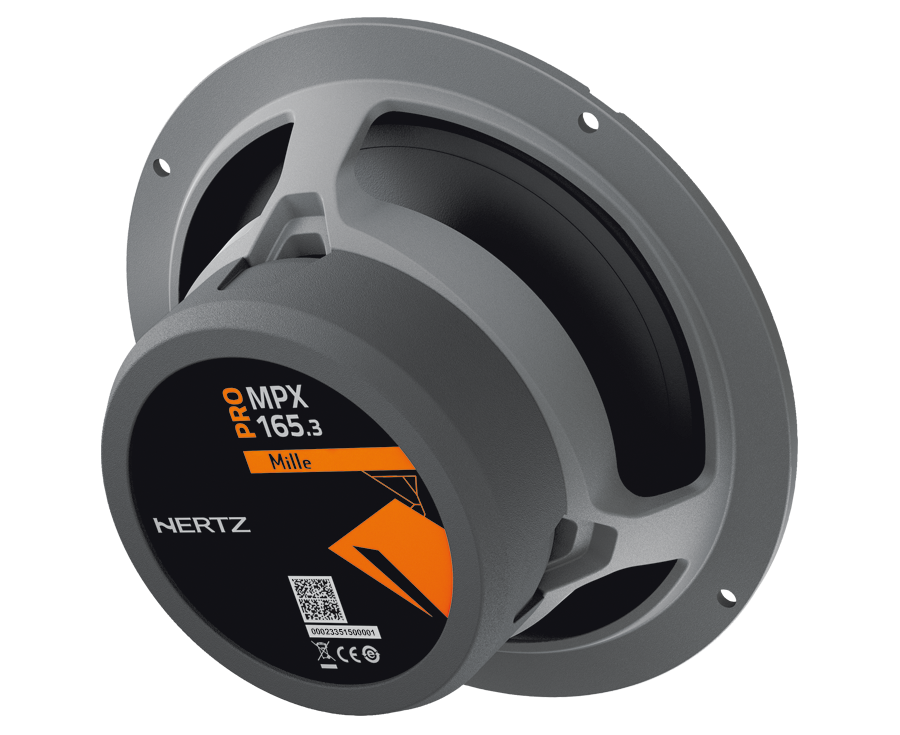

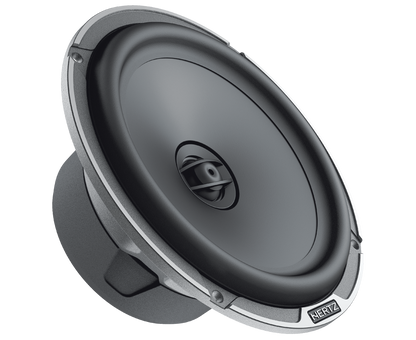

The coax tweeter concentric to the woofer of the MPX 165.3 ( 2-Way 6.5 inch (165mm) Coaxial ) car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Specs
|
Power Handling - Peak W |
200 |
|
Power Handling - Continuous W |
100 |
|
Impedance Ω |
4 |
|
Frequency response Hz |
45 ÷ 21,5k |
|
Sensitivity dB SPL |
92 |
|
Woofer size mm (in.) |
165 (6.5) |
|
Tweeter size mm (in.) |
25 (1) |
|
Woofer Voice Coil Ø mm (in.) |
36 (1.42) |
|
Tweeter voice coil Ø mm (in.) |
20 (0.8) |
| Woofer magnet |
High density flux ferrite |
| Tweeter magnet |
Neodymium |
| Woofer cone |
Pressed-pulp cone with cotton fibers |
| Tweeter dome |
Tetolon |
