Hertz ML 2500.3 Mille Legend 10" 4-Ohm Subwoofer 700W RMS

The Hertz ML 2500.3 is a Mille Legend series 10-inch (250 mm) component car audio subwoofer with a single 4-ohm voice coil, rated 700 W continuous and 1400 W peak power handling and designed for compact sealed enclosures of 17-25 liters. It is a universal 12-volt component subwoofer for any vehicle installation — it requires an enclosure and an external amplifier.

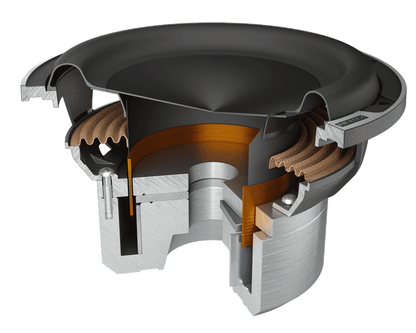

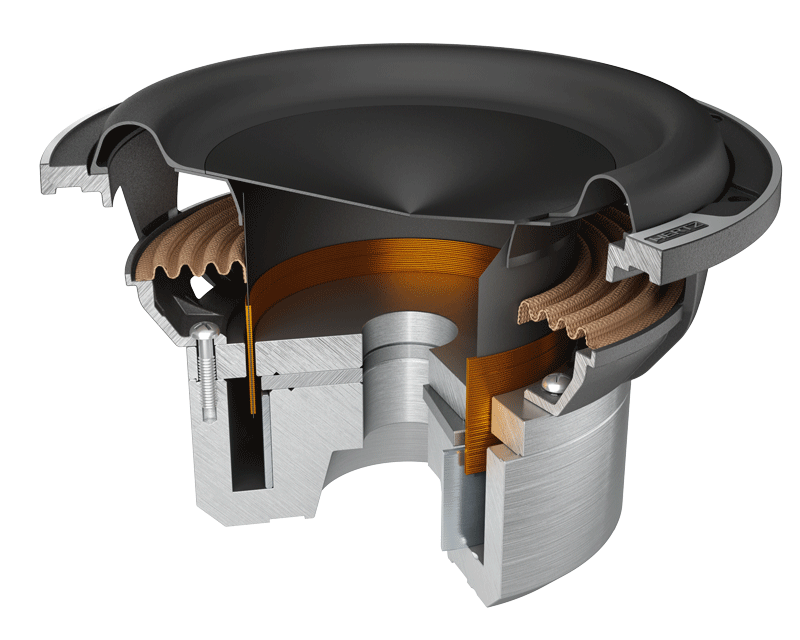

The motor uses an oversized neodymium magnet (95 x 28 x 6 mm) optimized with FEA simulation, a 100 mm (4-inch) CCAW voice coil wound on a fiberglass TIL former, and an aluminium shorting ring on the center pole for low distortion at high output. The mineral-injected pressed-pulp Exponential V-cone rides on a Boundary Free IIR rubber surround in a six-spoke anti-resonant aluminium alloy basket. With a top-mount depth of only 137 mm (5.4 in), it fits enclosures many 10-inch subwoofers of this output class cannot.

What's Included

Sold as a single subwoofer — one ML 2500.3 driver. No grille is included; the matching Hertz MLG 2500 die-cast aluminium grille (Hertz model MLG 2500.3) is sold separately.

Specifications

• Size: 250 mm (10 in), component subwoofer
• Impedance: 4 ohm, single voice coil
• Power handling: 700 W continuous / 1400 W peak
• Frequency response: 27 - 500 Hz
• Sensitivity: 88 dB SPL
• Voice coil: 100 mm (4 in) CCAW on TIL former
• Xmax: +/-17 mm; X-mech: +/-27 mm (1.06 in)
• Re: 2.75 ohm; Fs: 33 Hz; Vas: 23.5 l; Qts: 0.63; Qes: 0.65; Qms: 7.5; BL: 12.6 T·m
• Magnet: neodymium, 95 x 28 x 6 mm
• Cone: mineral-injected pressed-pulp Exponential V-cone; Boundary Free IIR rubber surround
• Overall diameter: 268 mm (10.55 in); top-mount depth: 137 mm (5.4 in)
• Weight: 7.5 kg (16.53 lb)
• Recommended enclosure: sealed, 17 l (0.6 cu ft) compact or 25 l (0.88 cu ft) performance

Fitment / Compatibility

The ML 2500.3 is a universal 12-volt car audio component with no vehicle-specific fitment — it installs in any vehicle that can accommodate a sealed enclosure of roughly 17-25 liters and 137 mm (5.4 in) of mounting depth. Hertz positions its Mille Power mono amplifier, the ML Power 1 (600 W x 1 at 4 ohm), as the matching amplifier for Mille subwoofers. It does not fit applications that require a dual-voice-coil subwoofer for series/parallel wiring; for dual voice coils in this size, Hertz offers the Mille Pro MP 250 D2.3 and MP 250 D4.3.

FAQ

What size box does the Hertz ML 2500.3 need?

Hertz specifies a sealed enclosure of 17 liters (0.6 cu ft) for compact installs or 25 liters (0.88 cu ft) for maximum performance. The driver's parameters are optimized for sealed-box use.

Is the Hertz ML 2500.3 a dual voice coil subwoofer?

No. The ML 2500.3 has a single 4-ohm voice coil. If you need a dual-voice-coil 10-inch Hertz subwoofer for impedance flexibility, look at the Mille Pro MP 250 D2.3 (dual 2-ohm) or MP 250 D4.3 (dual 4-ohm) instead.

Does the ML 2500.3 come with a grille?

No. The subwoofer ships without a grille. Hertz offers the die-cast aluminium MLG 2500 grille (Hertz model MLG 2500.3) as the optional matching accessory, sold separately.

Is the ML 2500.3 sold individually or as a pair?

Sold individually — one subwoofer per package.
