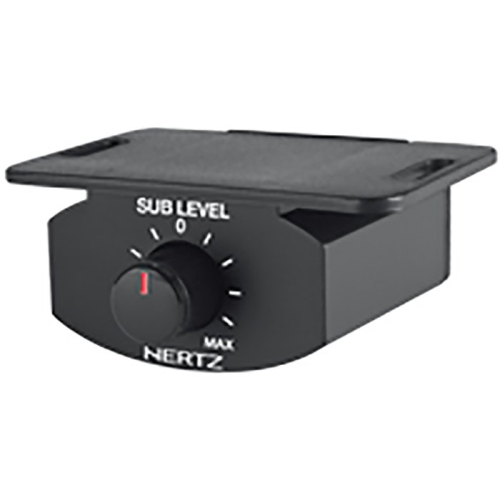

Hertz HRC 02 Remote Subwoofer Level Control for Venezia & DP Amps
Hertz HRC 02 Remote Subwoofer Level Control for Venezia & DP Amps
SKU:HRC
Available — ships in 1–2 business days
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Wired remote subwoofer level control with -20 dB to +6 dB range
- Molex plug connects to the remote port on Hertz Venezia V-series and DP 1.500 amps
- Three mounting options included: adhesive, screws, or 45 mm flush mount
- Compact 53 mm diameter x 29 mm deep knob fits dash, console, or boat panel
- Adjusts bass on the fly without changing the amplifier's gain tune
- Universal 12V accessory - install location limited only by cable routing
The Hertz HRC 02 is a wired remote subwoofer level control knob for Hertz amplifiers equipped with a Molex remote-level port, letting you adjust subwoofer output from -20 dB to +6 dB from the driver's seat. Hertz lists compatibility with the Venezia marine amplifiers (V6, V6 24V, V5, V5C, V4, V1, V1 24V) and the DP 1.500 mono amplifier; on the DP 1.500 the control operates over a -15 dB to 0 dB range. As an accessory knob it has no vehicle-specific fitment - it mounts in any 12-volt vehicle or boat where its host amplifier is installed.
The compact aluminium-look knob installs three ways with the supplied accessories: stick-on surface mount, screw-down surface mount, or flush (recessed) mount through a 45 mm panel cutout, so it integrates cleanly into a dash, console, or gunwale. Once connected to the amplifier's remote socket, it rides on top of the amp's gain setting - dial bass down for talk radio, up for bass-heavy tracks - without touching the amplifier tune.
Sold as a single remote control with mounting accessories. It is an accessory: it does nothing on its own and requires a compatible Hertz amplifier with a Molex remote-level connector.
Compatibility
The HRC 02 works only with Hertz amplifiers that have a Molex-type remote subwoofer level socket - currently the Venezia V-series and the DP 1.500. It does not fit amplifiers that use a 3.5 mm remote jack (Hertz ML Power 1/5 and HMP 1D use the HRC BM remote) or the Hertz Compact Power HCP series (which uses the plain HRC remote). Check your amplifier's manual for a remote volume/sub volume port before ordering.
FAQ
FAQ
Which Hertz amplifiers work with the HRC 02?
Hertz lists the Venezia V6, V6 24V, V5, V5C, V4, V1, and V1 24V marine amplifiers plus the DP 1.500 mono amplifier. The amplifier must have a Molex remote-level connector.
Does the HRC 02 work with the Hertz HMP 1D or ML Power amps?
No. Those amplifiers use a 3.5 mm remote jack and pair with the Hertz HRC BM remote instead; the HRC 02's Molex plug is not interchangeable with it.
How much adjustment does the HRC 02 give?
-20 dB to +6 dB of subwoofer level relative to the amplifier's set gain (on the DP 1.500 the range is -15 dB to 0 dB).
What is included and how does it mount?
You get one remote knob with accessories for three mounting methods: adhesive surface mount, screw surface mount, or flush mounting through a 45 mm cutout.
Specifications
Specifications
- function
- wired remote subwoofer level control
- mounting
- adhesive surface, screw surface, or flush mount (accessories supplied)
- connector
- Molex plug into the amplifier's remote-level port
- adjustment range
- -20 dB to +6 dB (-15 dB to 0 dB on the DP 1.500)
- overall dimensions
- 53 mm (2.09 in) diameter x 29 mm (1.14 in) deep; 45 mm (1.77 in) flush-mount cutout
- compatible amplifiers per hertz
- Venezia V6 / V6 24V / V5 / V5C / V4 / V1 / V1 24V, DP 1.500
