Hertz HMX6.5S-LD Black Powersports 6.5 Inch RGB Coax Speakers

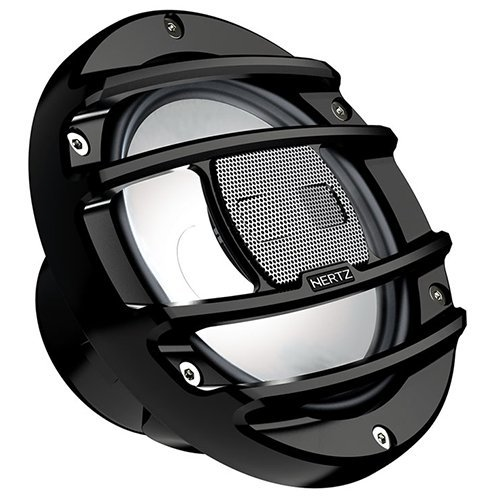

The Hertz HMX 6.5 S-LD is a two-way 165 mm (6.5 in) marine and powersports coaxial speaker with integrated RGB LED lighting, rated 75 W continuous and 150 W peak at 4 ohm - the LD suffix is Hertz's designation for the lit version of the HMX 6.5 S.

Key Benefits

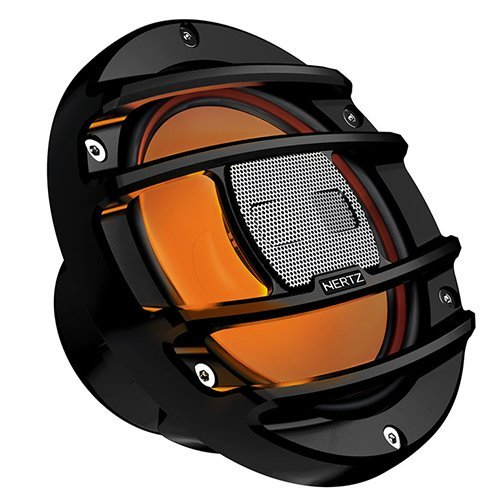

• Integrated RGB LED lighting built into the speaker itself, so a lit cab or deck does not need separate light rings added around the driver.
• Colour selection and music-reactive modes are handled by the Hertz HM RGB 1 BK controller, an RGB controller developed specifically for HMX LD models, with a radio-frequency remote.
• Same acoustic package as the unlit HMX 6.5 S: 75 W continuous, 150 W peak, 4 ohm, 89 dB sensitivity across 50 Hz to 25 kHz.

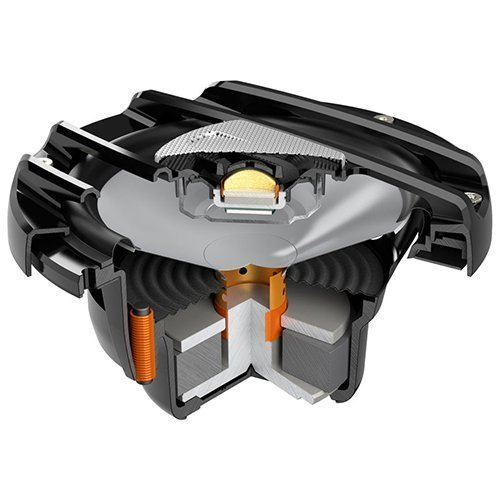

• Polypropylene cone loaded with UV inhibitors and co-moulded with a Santoprene rubber surround, on a marine-grade UV and temperature resistant polymer basket.
• Aramid fibre spider with silicone-insulated lead wires holds up to the vibration of a side-by-side or a boat.
• 36 mm PEI dome tweeter behind a stainless steel mesh grille, which passes high frequencies while protecting the dome.
• Engineered and tested against UV, salt fog, vibration, water spray, thermal shock and dust.

Fitment

The HMX 6.5 S-LD is a universal 6.5 inch coaxial speaker, not a vehicle-specific part, and it suits any 12 V system - side-by-sides, UTVs, ATVs, trucks, Jeeps and boats. What decides the install is the opening, not the make and model: the outer frame is 172.2 mm (6.78 in) across, the cutout is 125 mm (4.92 in), and it needs 95.6 mm (3.76 in) of depth behind the panel. Measure that depth first, because it is the dimension that stops most door installs.

Budget for the lighting side of the install as well as the audio side. The RGB LEDs are driven by the Hertz HM RGB 1 BK controller, which Hertz lists as a separate accessory rather than as part of this speaker, so a first-time build needs the controller as well as the speakers and amplifier power.

Impedance is 4 ohm and continuous power handling is 75 W, so match an amplifier channel to that figure rather than to the 150 W peak rating. Within the range, the plain HMX 6.5 S is the identical speaker without the LED lighting - pick that one if the build has its own lighting or needs none.
