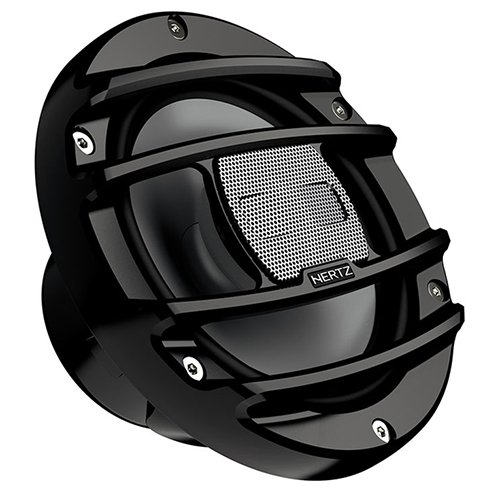

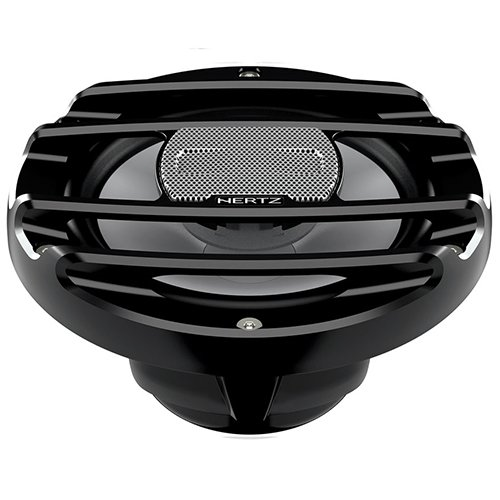

Hertz HMX6.5S Black Powersports 6.5 Inch Coax Speakers

The Hertz HMX 6.5 S is a two-way 165 mm (6.5 in) coaxial speaker built for powersports and marine use, rated 75 W continuous and 150 W peak at 4 ohm, and optimised to perform in infinite baffle - which is what a UTV door, a roll-cage pod or a boat panel actually is.

Key Benefits

• Engineered and tested for the real environment: Hertz subjects the design to UV exposure, salt fog, vibration, water spray, thermal shock and dust rather than treating weather resistance as a coating.

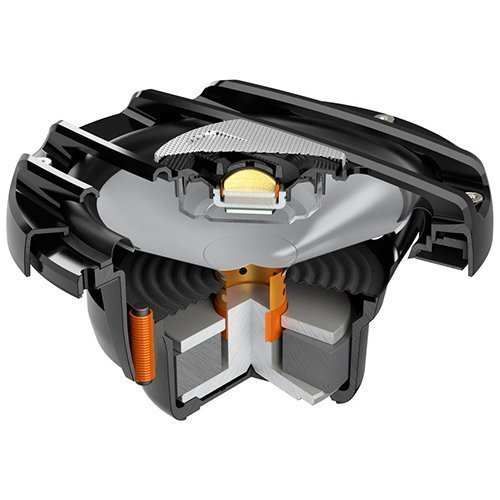

• Polypropylene cone loaded with UV inhibitors and co-moulded with a Santoprene rubber surround, so sunlight and moisture do not turn the moving parts brittle.
• Basket and grille injected in a high-temperature, UV-resistant polymer to shed water, dust and mud.
• Aramid fibre spider with silicone-insulated lead wires holds its behaviour over time in a high-vibration mounting location.
• Tuned for infinite baffle, so it delivers solid bass and real output in a door or panel with no enclosure behind it.
• 36 mm PEI dome tweeter on a neodymium magnet with an acoustic lens for off-axis dispersion, behind a stainless steel mesh grille - useful when nobody in an open cab is sitting on axis.
• 89 dB sensitivity at 4 ohm across 50 Hz to 25 kHz, so it plays loudly enough on modest amplifier power.

Fitment

The HMX 6.5 S is a universal 6.5 inch coaxial speaker, not a vehicle-specific part, and it suits any 12 V system - side-by-sides, UTVs, ATVs, trucks, Jeeps and boats. Fitment is a question of hole size and depth rather than make and model: the frame measures 172.2 mm (6.78 in) across, it needs a 125 mm (4.92 in) cutout, and it requires 95.6 mm (3.76 in) of mounting depth. That depth figure is the one that decides most installs, so measure behind the panel before ordering.

Impedance is 4 ohm, continuous power handling is 75 W and peak is 150 W, so pair it with an amplifier channel in that range rather than assuming the peak figure. On a four-channel amplifier such as the Hertz HCP 4M or HCP 4D, a pair sits comfortably within the per-channel rating.

The model number distinguishes it from its lit sibling. The HMX 6.5 S has no lighting; the HMX 6.5 S-LD is the same driver with integrated RGB LED lighting, which is driven by the separately sold Hertz HM RGB 1 BK controller. Choose the plain S if you do not want lighting in the pod or door.
