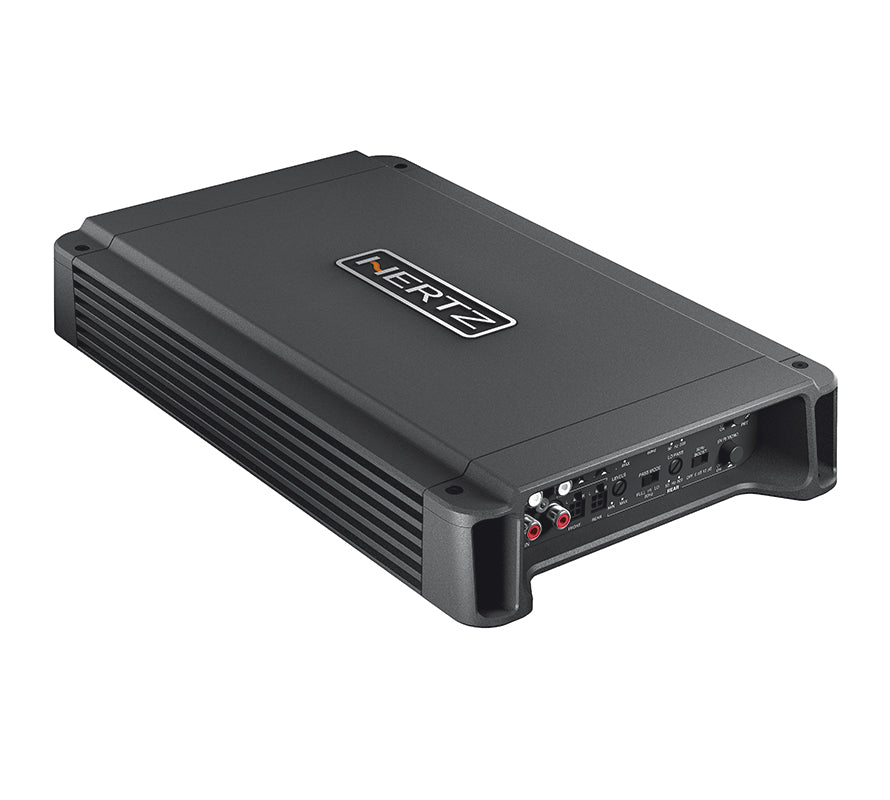

Hertz HCP 4DK 4 Channel Amp

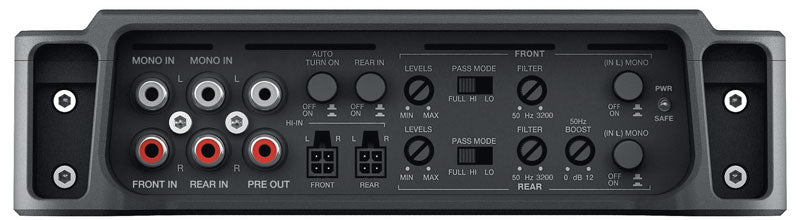

The new HCP 4DK features latest generation D-Class 2Ω stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Channel mode4 - 3 - 2Output Power (RMS)
@ 14.4 VDC4 Ch: 150 W x 4 (4 Ω)
4 Ch: 250 W x 4 (2 Ω)
3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω)
3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω)
2 Ch: 520 W x 2 (4 Ω)Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

Yes
A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
-
No
Distortion - THD
(100Hz @ 4Ω)0.03%S/N Ratio
(A weighted @ 1V)105 dBDamping factor
(100Hz @ 4Ω)200Size W x D x H
mm (in.)315 x 190 x 50 (12.40 x 7.48 x 1.97)
