DragonFire Hydra Front-Right Axle 17-18 Can-Am Maverick X3 X rs
DragonFire Hydra Front-Right Axle 17-18 Can-Am Maverick X3 X rs
SKU:522842
In stock
Couldn't load pickup availability
- FREE shipping on this item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Front-right (passenger-side) CV axle for the 2017-2018 Maverick X3 X rs Turbo R
- Dual-heat-treated chromoly shaft roughly 15-20% larger diameter than OEM
- 4340 chromoly CV cage machined for wider articulation angles

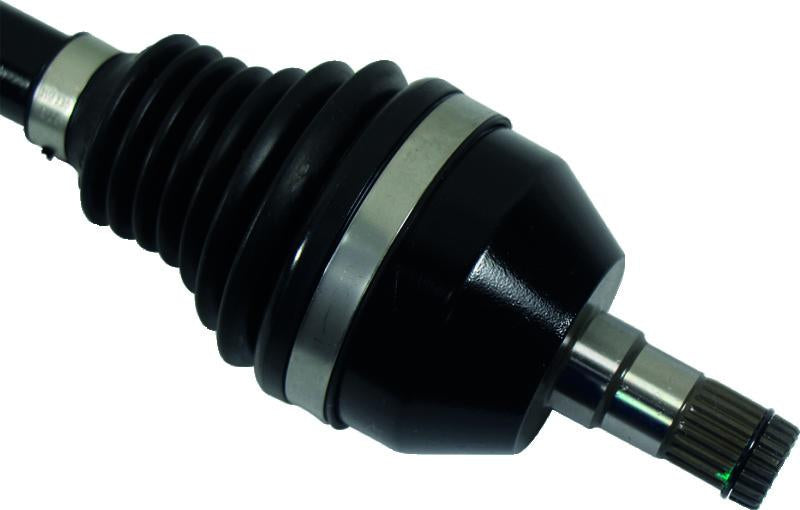

- Precision-machined, induction heat-treated CV joints
- Packed with moly grease and sealed in a TPEE CV boot against sand and mud
- Direct-fit replacement, no cutting or drilling required
- Backed by a 1-year manufacturer warranty
The DragonFire Racing Hydra Axle 522842 is a heavy-duty chromoly replacement CV axle for the front-right (passenger-side) position on the 2017-2018 Can-Am Maverick X3 X rs Turbo R (72-inch chassis). It drops into the factory location with no cutting, drilling, or modification.
The Hydra shaft is forged from dual-heat-treated high-strength chromoly steel roughly 15-20% larger in diameter than the OEM bar, with a 4340 chromoly CV cage machined for wider articulation angles. CV joints are precision-machined and induction heat-treated, then packed with high-quality moly grease and sealed in a TPEE CV boot to keep out sand and mud.
Fitment: This axle is position- and trim-specific. It fits only the front-right corner of the 2017-2018 Maverick X3 X rs Turbo R. The front-left companion for the same machine is part 522843. Does not fit the rear position (use 522841), the front-left side, the 64-inch X ds trim (front-left 522846), or the X mr trim (front-right 522845 / front-left 522848). Order two axles (one per side) to replace both fronts.
FAQ
FAQ
Is 522842 the left or right front axle?
It is the front-right (passenger-side) axle. The matching front-left axle is DragonFire 522843.
Does it fit the 64-inch Maverick X3 or the X ds?
No. 522842 is cut for the 72-inch X rs Turbo R chassis and is not interchangeable with the 64-inch X ds or base X3.
Do I need to modify anything to install it?
No. It is a direct OEM-style replacement that uses the factory mounting points with no drilling or cutting.
Vehicle Fitment
Vehicle Fitment
| Years | Make | Model | Submodel |
|---|---|---|---|
| 2017–2018 | Can-Am | Maverick X3 | X rs Turbo R |
Specifications
Specifications
- weight
- 13.6 lbs
- dimensions
- 40.0 L × 5.0 W × 4.8 H in
