DragonFire Hydra Front Axle 18-19 Can-Am X3 X mr Turbo R
DragonFire Hydra Front Axle 18-19 Can-Am X3 X mr Turbo R
SKU:522847
In stock
Couldn't load pickup availability
- FREE shipping on this item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Front CV axle for the 2018-2019 Maverick X3 X mr Turbo R (front right/left listing)
- Dual-heat-treated chromoly shaft roughly 15-20% larger diameter than OEM
- 4340 chromoly CV cage machined for wider articulation angles
- Precision-machined, induction heat-treated CV joints
- Packed with moly grease and sealed in a TPEE CV boot against sand and mud
- Direct-fit replacement, no cutting or drilling required
- Backed by a 1-year manufacturer warranty

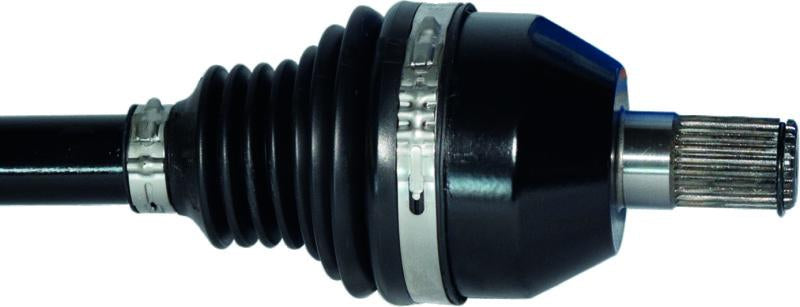

The DragonFire Racing Hydra Axle 522847 is a heavy-duty chromoly replacement CV axle for the front of the 2018-2019 Can-Am Maverick X3 X mr Turbo R (72-inch mud chassis). DragonFire lists this part for the front right/left position; it drops into the factory location with no cutting, drilling, or modification.
The Hydra shaft is forged from dual-heat-treated high-strength chromoly steel roughly 15-20% larger in diameter than the OEM bar, with a 4340 chromoly CV cage machined for wider articulation angles. CV joints are precision-machined and induction heat-treated, packed with high-quality moly grease and sealed in a TPEE CV boot to keep out sand and mud.
Fitment: This axle is position- and trim-specific. It fits the front of the 2018-2019 Maverick X3 X mr Turbo R only. Does not fit the rear position (522844), the X rs trim (front 522842/522843), or the 64-inch X ds. DragonFire's X mr front listings overlap by year and side: 522845 is the front-right for 2017-2019 and 522848 is the front-left for 2018-2019, while this 522847 is cataloged as the 2018-2019 front right/left. Confirm your machine's model year and required side against the factory part before ordering. This is a single axle; order two to do both fronts.
FAQ
FAQ
Which side does 522847 fit?
DragonFire lists it as a front right/left part for the 2018-2019 X mr Turbo R. If you need a side-specific unit, cross-check 522845 (front-right) and 522848 (front-left) for your year.
Does it fit an X rs or X ds Maverick X3?
No. 522847 is specific to the X mr Turbo R front; the X rs fronts are 522842 and 522843.
Is any modification required?
No. It uses the factory mounting points and installs with no drilling or cutting.
Vehicle Fitment
Vehicle Fitment
| Years | Make | Model | Submodel |
|---|---|---|---|
| 2018–2019 | Can-Am | Maverick X3 | X mr Turbo R |
Specifications
Specifications
- weight
- 13.7 lbs
- dimensions
- 40.3 L × 5.3 W × 4.8 H in
